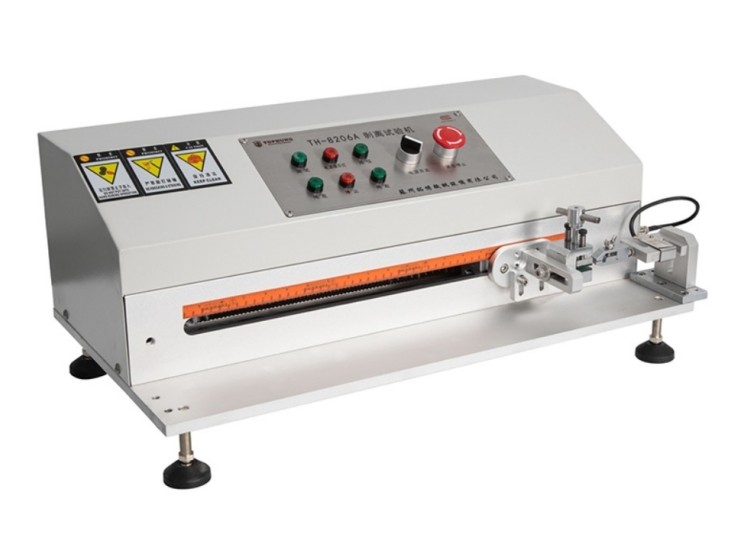

Horizontal Stripping Testing Machine

Product Item : ZHIYI-8206
Category： Other
Product description：This test machine is mainly used for testing electronic materials, adhesive products, solar PV modules and other samples: tensile, shear, peel, tear and other precision mechanical tests.
INQUIRY

Test item:
This test machine is mainly used for testing electronic materials, adhesive products, solar PV modules and other samples: tensile, shear, peel, tear and other precision mechanical tests.

Applicable industry:
This series of testing machine is widely used in rubber products, plastic products, wire and cable, electronic products, textile materials, clothing products and other industries, universities, research laboratories, inspection and arbitration department, technical supervision and other departments.

Model	ZHIYI-8206S	ZHIYI-8206A	ZHIYI-8206
Name	Servo Control Horizontal Tensile Testing Machine	Computer System Horizontal Tensile Testing Machine	Electronic Horizontal Tensile Testing Machine
Capacity	10N,20N,50N,100N,200N,500N
Display Mode	Computer display or(LCD display+ computer display)		LCD display
Power system	Imported servo motor+ servo drive	servo motor+ servo drive	servo motor+ servo drive
Accuracy grade	Better than 0.5 level	Better than 0.5 level	Better than 1.0 level
Load range	0.2%-100%FS	0.2%-100%FS	0.5%-100%FS
Force error	Within±0.5%	Within±0.5%	Within±1.0%
Force resolution	1/±500000	1/±500000	1/±200000
Deformation ranger	0.2%-100%FS	0.2%-100%FS	0.2%-100%FS
Deformation error	Within±0.5%	Within±0.5%	Within±1.0%
Deformation resolution	0.0001mm	0.001mm	0.001mm
Displacement error	Within±0.5%	Within±0.5%	Within±1.0%
Displacement resolution	0.0005mm	0.001mm	0.001mm
Force control rate adjustment range	0.01%-10%FS/S
Force control rate accuracy	Within±1.0%
Deformation rate adjustment range	0.02%-5%FS/S
Deformation rate control accuracy	Within±1.0%
Displacement speed range	0.001-500mm/min	1.0-500mm/min	1.0-500mm/min
Effective test width	100*50mm
Effective space	300mm
Dimension	500300250mm
Power	Single-phase220V 0.5KW
Weight	30kg
