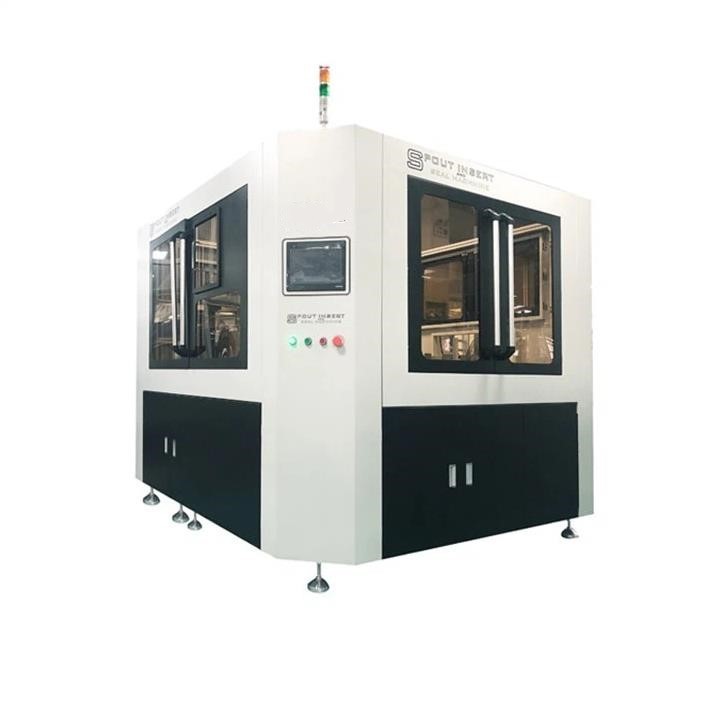

Spout Pouch Doypack Sealing Machine

Product Item : ZHIYI-820
Category： Paper, Packaging & Print
Product description：Automatic turntable sealing machine is professionally used for automatic casing of straws and bags And heat-sealing machine, can be applied to a variety of different types of straws, straws with diffe
INQUIRY

Main Specification

1. B a g t y p e s	Doypack bag, 3 -side seal bag, stand up pouch with top center spout
2. Bag size	Bag width range: 60~120mm Bag length range: 70~230mm
3. Material type	Bag: In-layer PE, in-layer PP Spout: PE, PP
4. Spout size	Caliber 8.5mm(normal), Caliber 10 mm
5. Production speed	Adjustable from 90 pcs/ min
6. Heat sealing b a r	Preheat: 1 group, Heat sealing: 4 Groups, Cooling: 1 group
7. Power	13KW
8. Power suply	380V, in three-phase four-wire system
9. Machine size	about 290cm(width) x 270cm(length) x 220cm(height)
10. Weight	2500kg

Features

1. Pipe delivery, bag delivery, heat sealing and discharge are fully automated during work. Simple operation. Only three to four people are needed for two to three sets of on-line production, and only one person is needed for single machine operation, saving labor and flexibly mastering orders.

2. Turntable structure, small site occupation and space saving.

3. The LCD touch screen can complete the function setting, with simple operation, accurate control and stable operation, and can work continuously for a long time.

4. Imported temperature control module, SMC pneumatic element and OMRON PLC control unit are adopted to ensure the quality, performance and service life of the machine.

5. Automatic fault detection, automatic alarm, automatic stop, automatic diagnosis and display of fault location.

6. The product is composed of pipe delivery system, bag delivery system, heat sealing system and bag taking system. Each component system operates fully automatically to make the production speed reach 80-120 per minute.

7. The pipe delivery system is fully automatic, efficient and accurate.

8. The bag feeding system adopts double station design, double efficiency.

9. The bag size can be adjusted arbitrarily within 230mm long and 120mm wide, or can be customized according to customer needs.

10. The heat sealing system adopts step-by-step heating and cooling design, and the product quality is better. The sealing knife can be changed to adapt to different straws.
