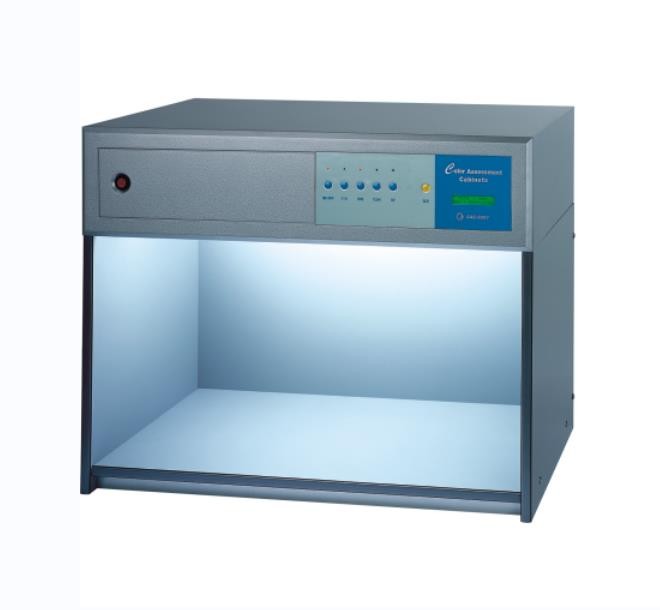

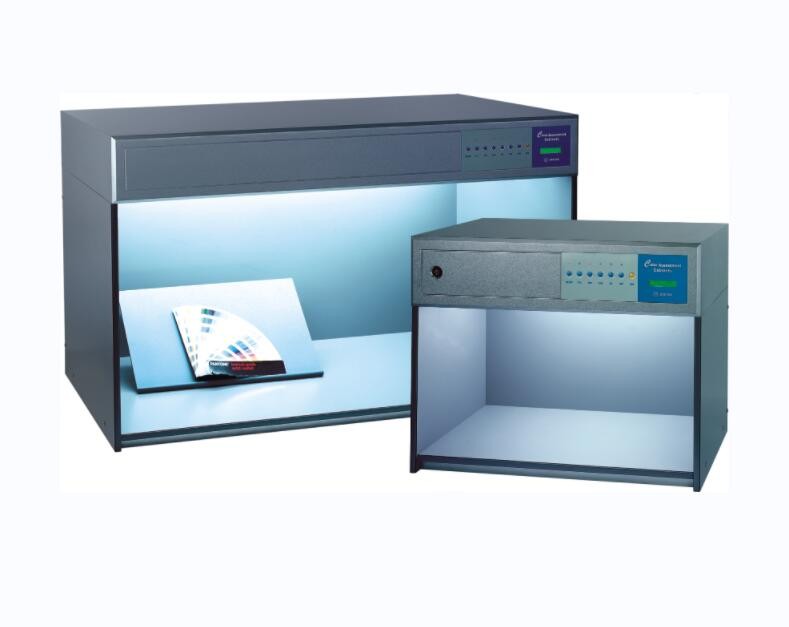

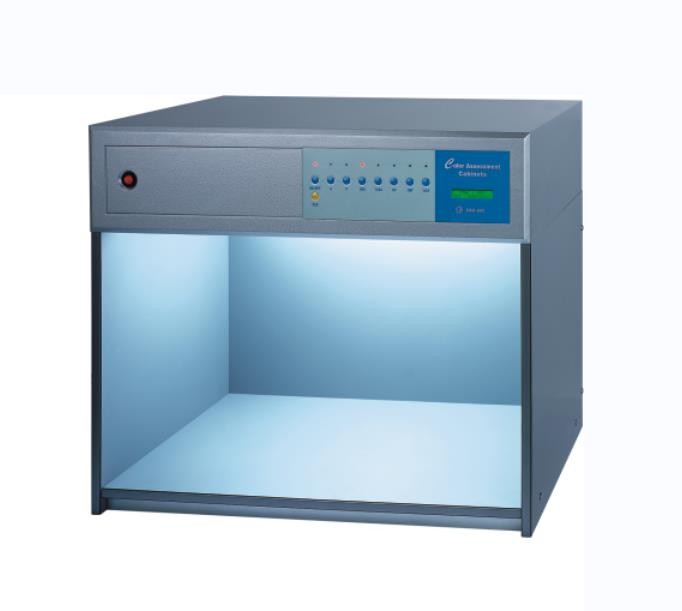

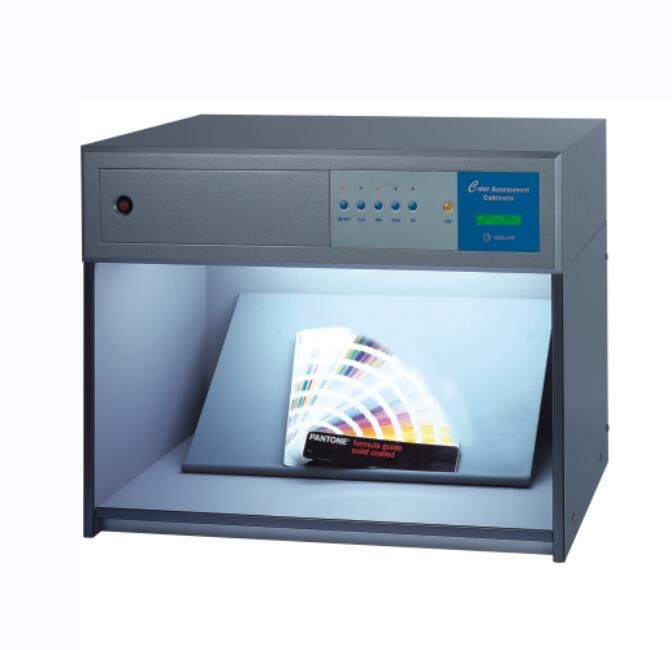

4 Light Soruces Light Box

Category： Color Assessment Cabinet
Brand : ZHIYI
Model : ZYLB-600-4
Type: Four Light Sources Color Cabinet
Delivery: 5-7 days after payment received
Product description：Light box is also called Color Controller Light Box or Color Assessment Cabinet. It is the illuminant for testing the products color difference.
INQUIRY

Four Light Sources Color Matching BoxPrice Colour Matching Light Box for Color Assessment Test

Application,

Color Assessment Cabinet, also a kind of textile testing equipment ,suitable for all industries and applications where there is a need to maintain color consistency and quality-e.g. Automotive, Ceramics, Cosmetics, Foodstuffs, Footwear, Furniture, knitwear, Leather, Ophthalmic, Dyeing, Packaging, Printing, Inks and Textile test.
Since different light source has different radiant energy, when they arrive on the surface of an article, different colors display. With regard to color management in industrial production, when a checker has compared the color consistence between products and examples, but there may exist difference between light source used here and light source applied by the client. In such condition, color under different light source differs. It always brings following issues: Client makes complaint for color difference even requires for rejection of goods, seriously damaging company credit.
To resolve the above problem, the most effective way is to check good color under same light source .For example ,international Practice applies Artificial Daylight D65 as standard light source for checking goods color.
Color Assessment Cabinet is very important to use standard light source to check color difference in night duty.
Besides D65 light source ,TL84,UV, and F/A light sources are available in this Lamp Cabinet for metamerism effect.

Features:
1. Provide several light sources, i.e. D65, TL84, UV, F/A
2. Apply microcomputer to switch between the light sources quickly.
3. Super timing function to record use time of each light source separately.
4. All fittings are imported, ensuring quality.
5. Product size is 710*420*570mm
6. Weight :42kg

Instructions for Light Source:

Name	kelvin	watt	Lamp Type	Uses
D65	6500K	2×18W	Fluorescent Artificial Daylight PHILIPS TLD18W/965	International Standard Artificial Daylight
TL84	4000K	2×18W	Fluorescent PHILIPS TLD 36W/840	European,Japan Shop light Source
F/A	2700K	4×40W	Incandescent PHILIPS E27	Sun-settting Light Yellow Light Source

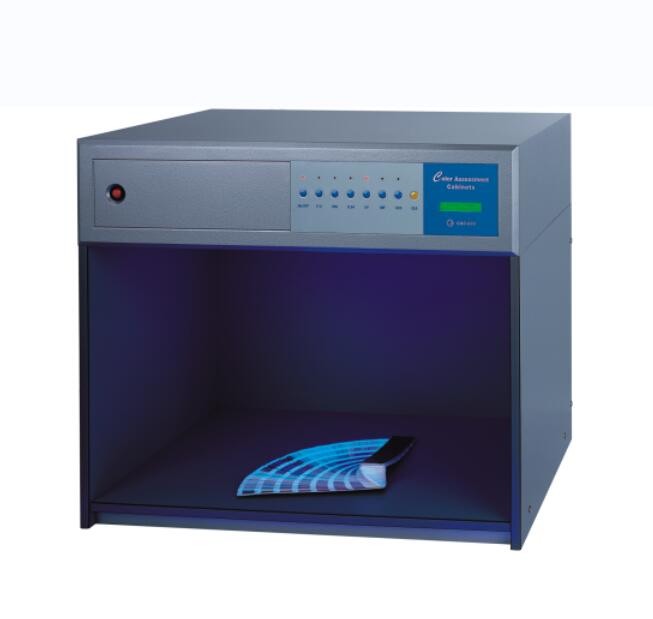

UV	/	1×36W	Fluorescent PHILIPS 36W/BLB BLACK LIGHT	Ultraviolet Lamp

Light Box Advantages:

1). Longest Warranty Time: 12 months warranty.
2). Conform to International Standard: ISO ASTM DIN BSI ANSI CIE
3). With imported component to make sure the stability of the instrument.
4). Light booth is with Chinese Patents and with CE certification.
5). After power off, the data could be saved automatically.

Packing List:

No.	Name	Quantity
1	Light Booth Top Cover	1 pcs
2	Light Booth Bottom	1 pcs
3	Light Booth Back Cover	1 pcs
4	Light Booth Side Cover	2 pcs
5	Power Line	1 pcs
6	Operating Manual	1 pcs
7	Warranty Card	1 pcs
8	D65 Light Tube	2 pcs
9	TL84 Light Tube	2 pcs
10	UV Light Tube	1 pcs
11	F/A Light Tube	4 pcs
