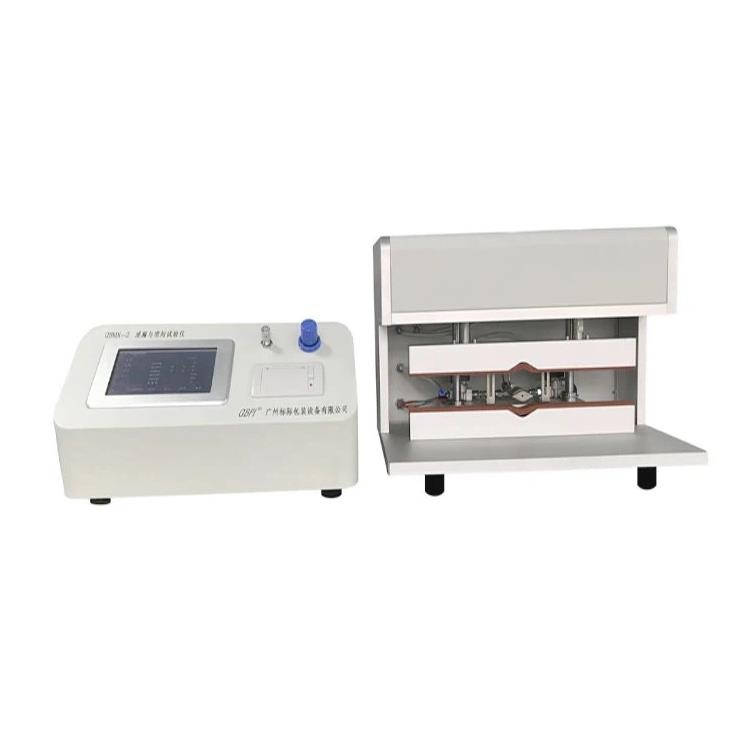

Leak and Seal Strength Tester
- Product Item : ZHIYI-819
- Category： Paper, Packaging & Print
- Product description：Leak and Seal Strength Tester
Specifications
|
Standards |
GB 10440、GB 18454、GB 19741、GB 17447、ASTM F1140、ASTM F2054、ISO 11607-1、ISO 11607-2、GB/T 17876、GB/T 10004、GB/T 10005、BB/T 0003、BB/T 0025、QB/T 1871、YBB 00252005、YBB 00162002 |
|
Test range of sealing strength |
0~1Mpa |
|
Test range of leakage |
0~100Kpa |
|
Accuracy |
0.5% |
|
Gas source |
compressed air, 0.4~1Mpa |
|
Range of sample’s sealing size |
0~400mm |
|
Gas source interface |
Φ6mm gas tube |
|
Main machine body size |
450mm x 340mm x 230mm |
|
Clips size |
500mm × 250mm × 280mm |
|
Weight |
125kg |
|
Power |
100W |
|
Power supply |
AC 220V 50Hz |
Features
◆ Pneumatic clips, good sealing of bag opening.
◆ Wholly automatic, automatically inject air and keep for set time; auto measure and stop.
◆ Can manually pause and stop.
◆ LCD display test data.
◆ Built-in printer, can print report.
◆ Simple calibration of pressure sensor.
◆ Can customize clips for unusual bag.
