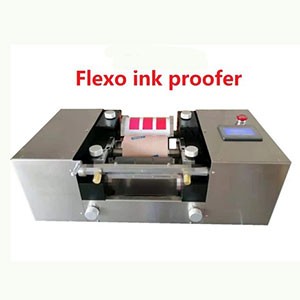

Flexo Ink Proof Machine

Product Item : ZHIYI-P225F
Category： Paper, Packaging & Print
Flexo Ink Proof Machine
Ink Proofer
Ink Printing Proofer For Flexo
print proofer
Product description：The flexo ink proof machine is suitable for single-color proofing, such as color matching, ink performance testing and other laboratory tests. It is capable for coating application, solid color block
INQUIRY

Product Introduction

The flexo ink proof machine is suitable for single-color proofing, such as color matching, ink performance testing and other laboratory tests. It is capable for coating application, solid color block proofing and dot pattern proofing.

Compatible Inks

Water-based flexographic ink, UV flexographic ink, offset ink, conventional & UV letterpress ink

Acceptable Proofing Materials

Paper, plastic film, non-woven fabric, tissue paper, gold/silver cardboard and other flexible substrates

Product Features

1. The ceramic anilox roller rotates first for even ink distribution, then the printing substrate roller and plate roller synchronously rotate one full cycle to finish proofing. Synchronized operation of ceramic roller, substrate roller and plate roller ensures stable and consistent proofing quality.

2. Four independent components including doctor blade, ceramic anilox roller, plate roller and substrate roller support separate left/right pressure adjustment, featuring highly flexible parameter setting.

3. Easy disassembly and assembly for anilox roller and doctor blade for quick replacement and maintenance.

4. Large-diameter roller design enables convenient loading of printing substrates, plate mounting and plate cleaning operations.

Technical Data

Input Power Supply	220V, 50/60Hz
Rated Power	500W
Applicable Scope	Single-color proofing (e.g., color matching, ink performance testing)
Ink Feeding Method	Dropper dripping ink
Proofing Substrate Thickness	0.01–2mm (flexible bendable materials)
Max. Proofing Substrate Size	170×210mm
Effective Printing Area	120×150mm
Plate Size	150×160mm
Plate Thickness	American standard flexo plate thickness
Pressure Adjustment (Plate Roller & Anilox Roller)	Adjustable within ±2mm, with graduated scale for pressure display
Pressure Adjustment (Plate Roller & Impression Roller)	Adjustable within ±2mm, with graduated scale for pressure display
Adjustable Printing Speed	10–80 m/min
Ceramic Anilox Roller Dimension	φ70×200mm
Ceramic Anilox Roller Line Screen	Standard: 600LPI; Customizable: 70LPI–1200LPI
Compatible Inks	Water-based flexographic ink, UV flexographic ink, offset ink, conventional & UV letterpress ink
Acceptable Proofing Materials	Paper, plastic film, non-woven fabric, tissue paper, gold/silver cardboard and other flexible substrates
Overall Dimension (L×W×H)	450×810×250mm
Net Weight	130KG
Optional Accessory	UV curing unit
Supported Proofing Types	Coating application, solid color block proofing, dot pattern proofing
