Leakage Test for Plastic Containers

Product Item : ZHIYI-818
Category： Paper, Packaging & Print
Product description：Leakage Test for Plastic Containers
INQUIRY

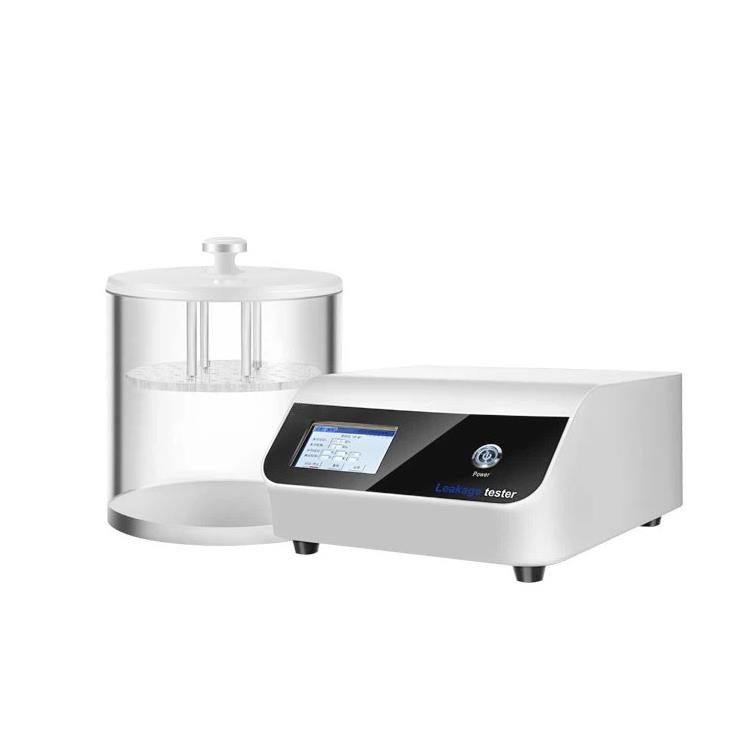

The Leakage tester ZHIYI-818 is used to detect the sealing condition of plastic packaging bags and containers, and it is applied to used in industries of food, beverage, pharmaceuticals, personal care and so on. Through test can effectively compare and evaluate the sealing technology and sealing performance of packaging parts, and provide scientific basis for determining the relevant technical indicators. It can also be used to test the sealing performance of the specimens after dropping and compressing test.

Standards

GB/T 15171-1994, ASTM D3078-2002（2013）

Features

◆ Compressed air，pneumatic drive.

◆ Wholly automatic, auto vacuum and keep for set time, auto stop and return.

◆ Can manually pause and stop.

◆ LCD display test data and working status.

Specifications

Item	Technical Parameters
Vacuum degree	0~-95Kpa
Vacuum precision	±1%(indication error)
Vacuum keeping time	0.1s~60min
Compressed air pressure	0.4~0.6 Mpa(4~6 kgf/cm2)
Compressed air consumption	20 L/min
Vacuum chamber size	Φ270mm × 270mm
Instrument size	Instrument size:580mm × 345mm × 440mm Vacuum tank:Ø300 × 300mm（samll） Ø450 × 350mm(medium)
Net weight	12 kg
Working temperature	10~40℃
Vacuum degree	0~ -95kPa
Power supply	AC 220V 50Hz
