Five Light Source LED Color Cabinet

Category： Color Assessment Cabinet
Brand : ZHIYI
Model : ZYLED-600-5
Type : Five LED Light Sources Color Cabinet
Delivery: 5-7 days after payment received
Product description：Light box is also called Color Controller Light Box or Color Assessment Cabinet. It is the illuminant for testing the products color difference.
INQUIRY

1. Product Introduction

Five Light Sources LED Light Booth is a professional color assessment cabinet designed for accurate color matching and visual evaluation across various industries. It simulates standardized lighting environments to eliminate color perception errors caused by different light sources, illuminance, color temperatures, and ambient conditions, ensuring consistent and objective color judgment for raw materials and finished products.

This booth complies with major international visual evaluation standards recognized by the International Commission on Illumination (CIE), including ISO 3664, ISO 3668, ISO 13076, ISO 23603, AATCC EP9, ASTM D1729, DIN 6173, CIE S025/E, BS 950 PL2, and more, meeting the requirements of AS, ASTM, BSI, and DIN standards.

2. Product Features

1). Intelligent Light Source Management: Displays usage time, name, and switch counts for each light source for easy monitoring.

2). Automatic Light Switching: Supports automatic light source switching and metamerism detection function to identify color mismatches under different illuminants.

3). Instant Activation: No warm-up time or flickering, enabling quick and reliable color evaluation.

4). Energy-Efficient LED Upgrade: Adopts LED lamps instead of traditional fluorescent lamps, with low power consumption, no heat generation, and high luminous efficiency. The LED version is more energy-saving and durable than fluorescent lamps.

5). Comprehensive Light Sources: Equipped with a complete set of British and American standard light sources to meet global testing requirements.

6). Customizable Light Source Naming: Light source names can be modified for flexible operation.

3. Application

It is widely used in industries requiring precise color management to eliminate color deviation in products:

Textiles & Apparel
Toys & Plastics
Coatings & Paints
Printing & Inks
Dyes & Pigments
Chemicals & Ceramics
Footwear & Leather Goods
Hardware & Food Products
Cosmetics & More

4. Specification

Item	Parameter
Model	ST-600-5(LED)
Configuration	F, D65, TL84, UV, CWF, Five LED light sources
Weight	27.35 Kg
Optional Accessories	45° viewing stand
Internal Dimensions (L×W×H)	680 × 508 × 360 mm
External Dimensions (L×W×H)	712 × 535 × 545 mm

5. Light Sources Specification

Light Source Name	Color Temperature	Power & Quantity
F (Home/Hotel Light, Color Reference)	2700K	5W × 4 pcs

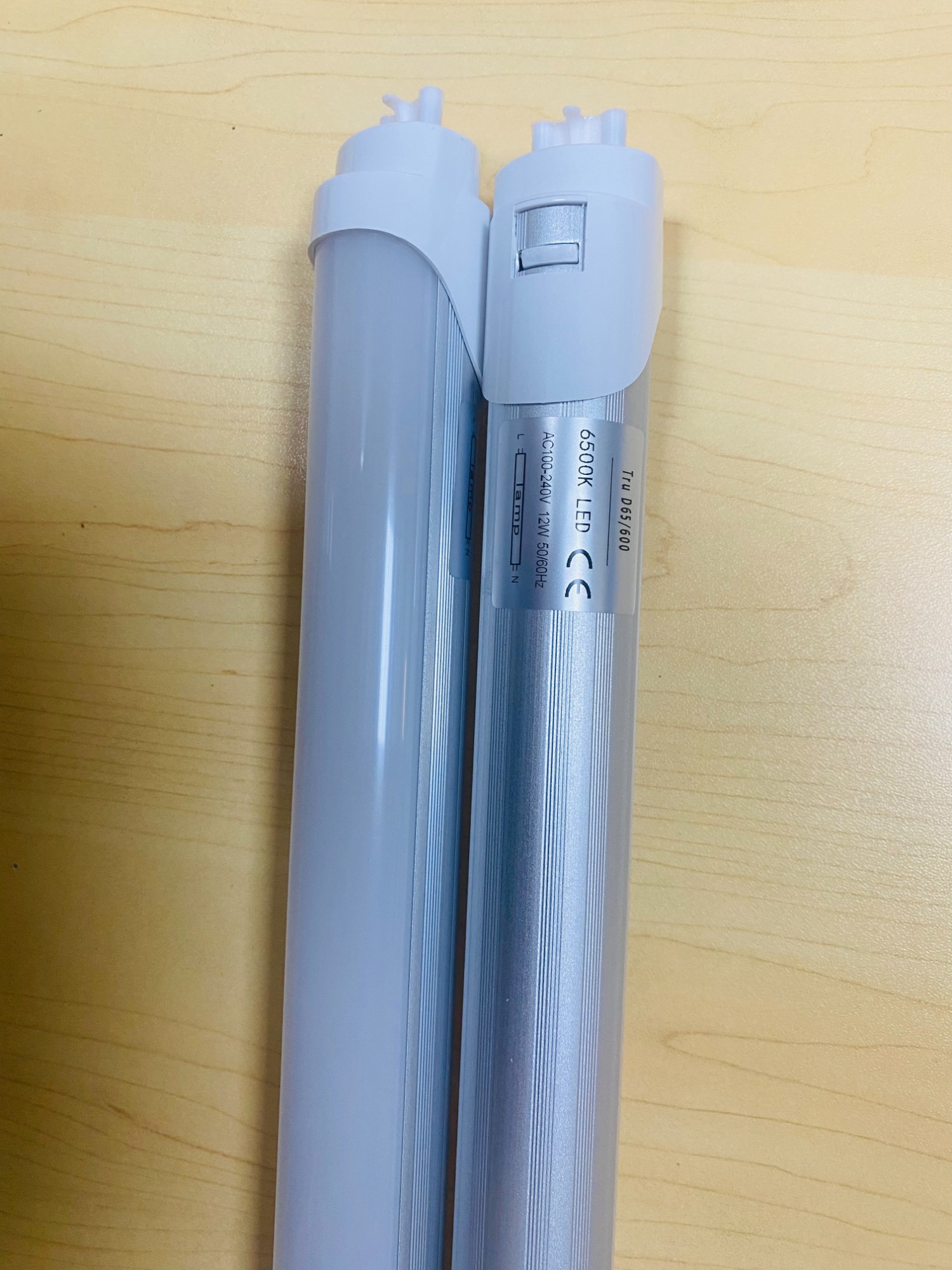

D65 (International Standard Artificial Daylight)	6500K	12W × 2 pcs

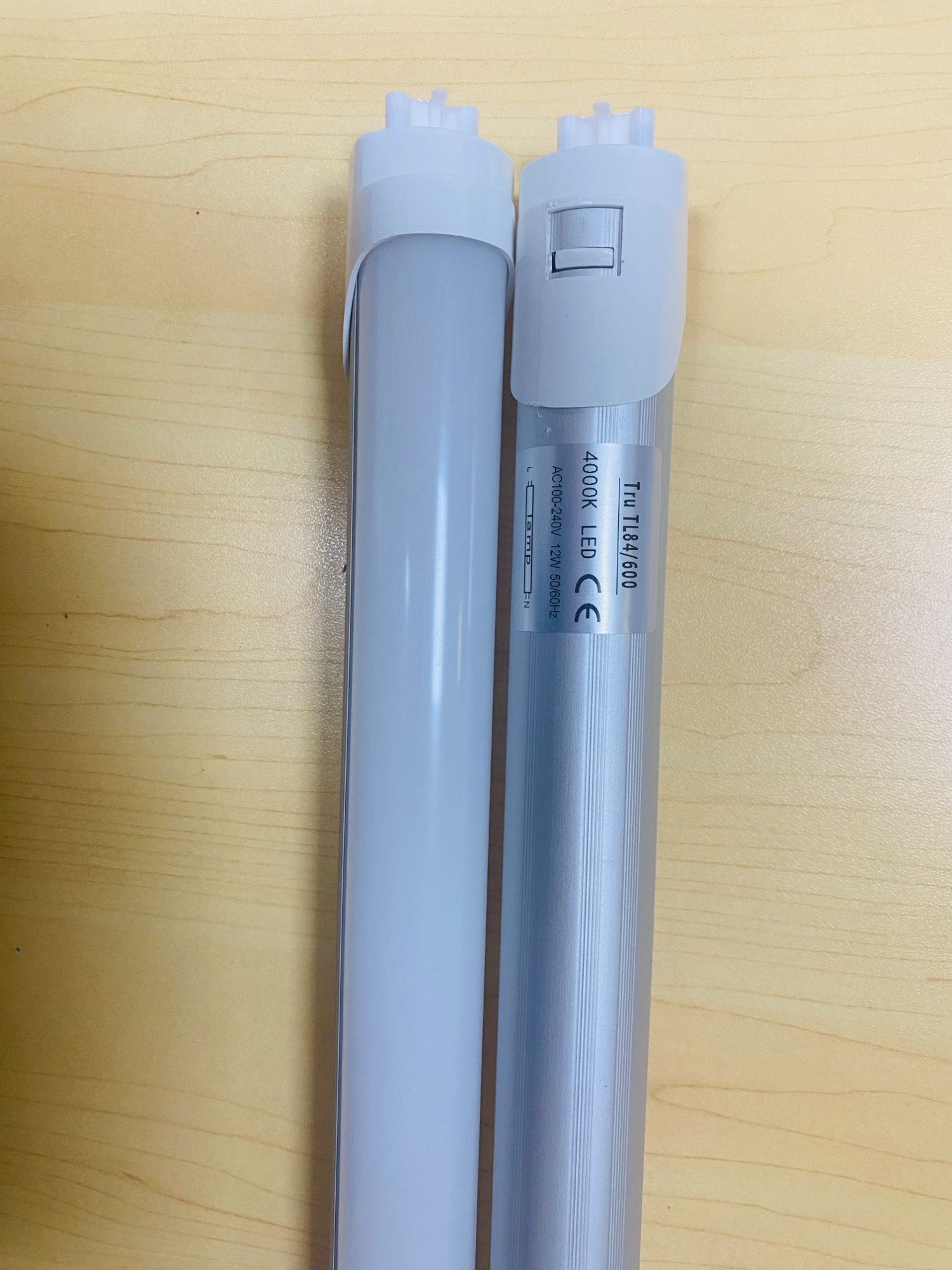

TL84 (Store Light Source for Europe, Japan, China)	4000K	12W × 2 pcs

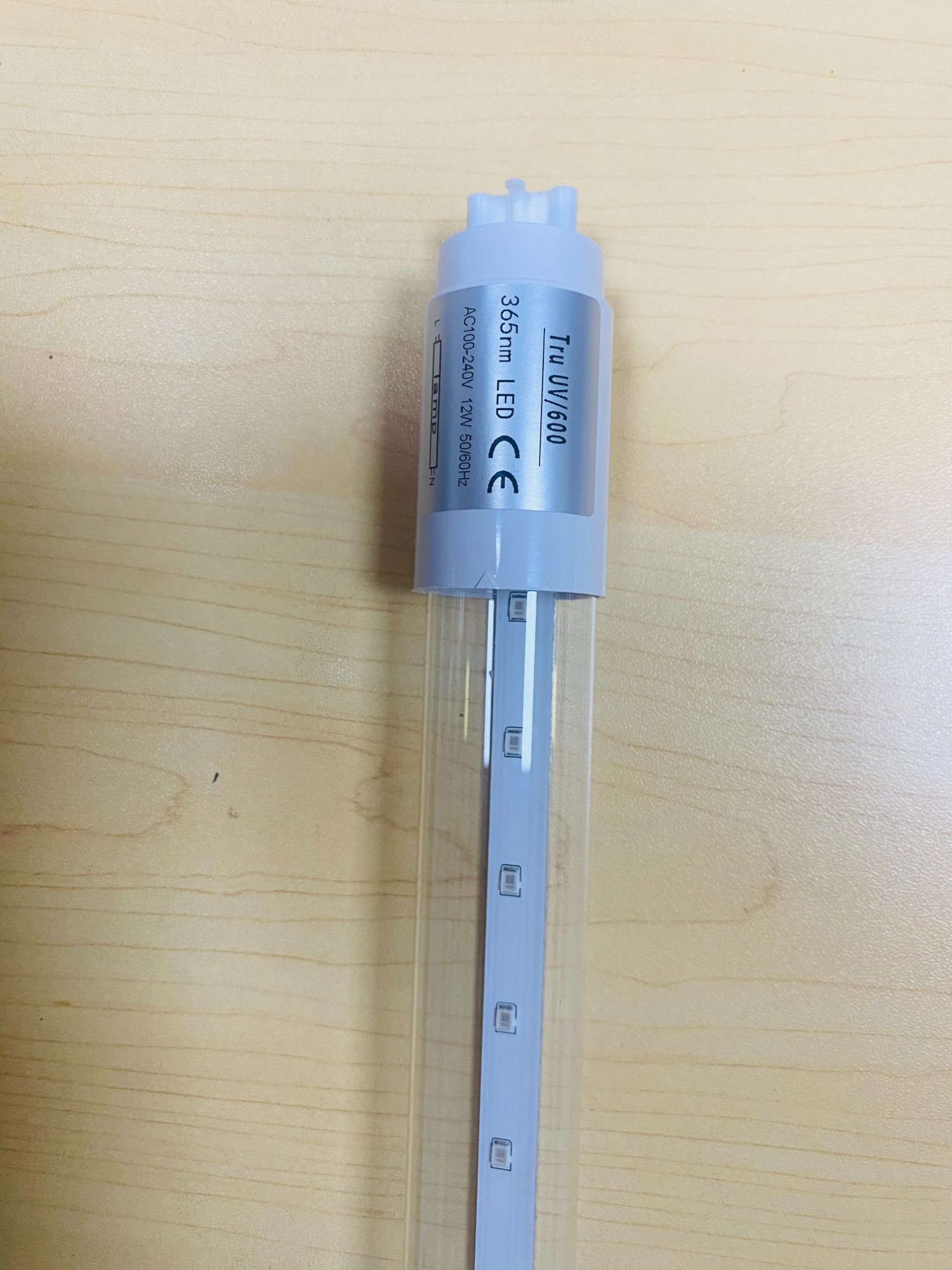

UV (Ultraviolet Light Source)	365nm	12W × 1 pcs

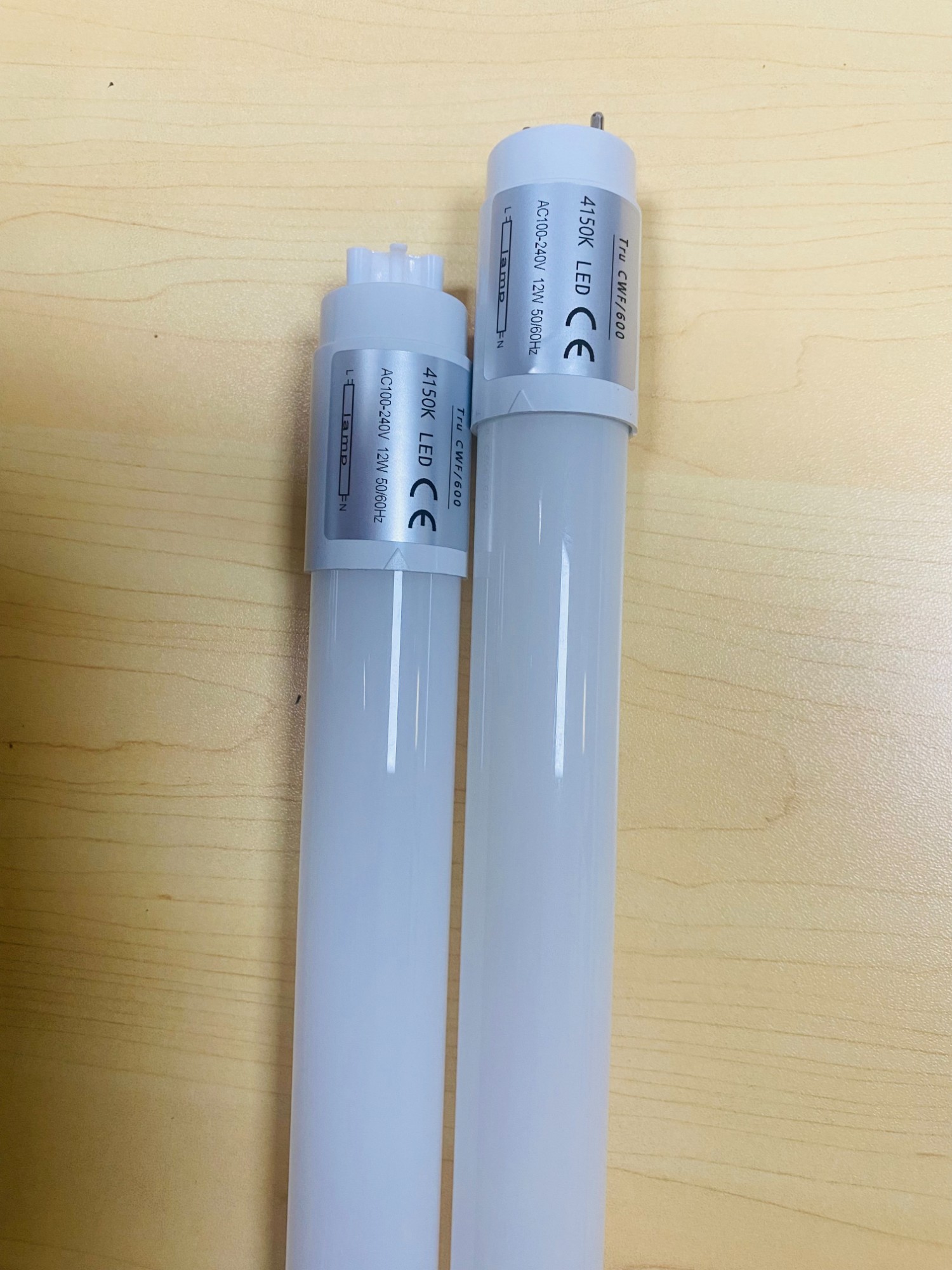

CWF (American Cool White Store Light Source)	4150K	12W × 2 pcs
