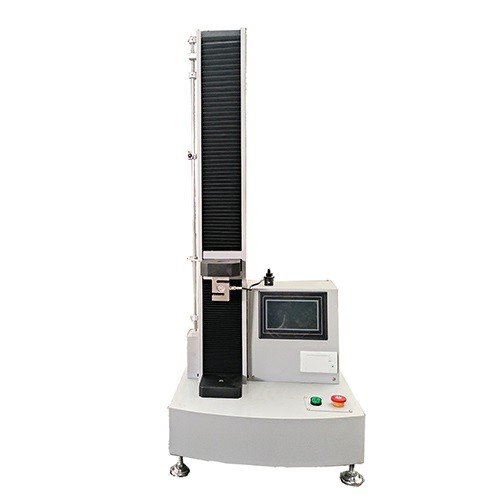

Universal Tensile Testing Machine

Universal Tensile Testing Machine Introduction

It is suitable for testing the tensile deformation rate, peel, tear and other properties of plastic film, paper tube, composite film, soft packaging materials, conveyor belt, adhesive, adhesive tape, adhesive tape, rubber, paper, plastic aluminum plate, enameled wire, non-woven fabric, textile products and other products.

Universal Tensile Testing Machine Application

Standard tensile test, tensile strength and deformation rate, tensile force and deformation rate, tear strength, 180 peel (including T), 90 peel, etc.

Universal Tensile Testing Machine Features

Dot matrix large blue screen LCD full picture display data, results, curves;

Professional software support, the whole process of the test is controlled by a single chip, and automatically returns to the original position;

Each function operates independently, standard units of measurement, no manual conversion; can carry out statistical analysis and operation of grouped samples, give arithmetic mean, maximum value, minimum value;

Parameter power failure memory, force overload protection function;

The output of test results can be set: maximum force value, elongation, maximum tensile strength, fixed force elongation, fixed elongation force value;

High performance DC servo system, screw transmission, servo speed control, silent operation, the whole machine performance is stable and reliable;

Power overload automatic protection function, thin film touch button, long service life;

Select the printer and print the test report.

Universal Tensile Testing Machine Technical Data

Universal Tensile Testing Machine functions and features

1. Master：

1.1 The speed control system adopts stepper motor and reducer, which has stable and reliable performance and over current and over voltage

Overload and other protection devices. The speed range can reach 0.2~500mm/min. And has the automatic return function.

1.2 The transmission part adopts arc synchronous toothed belt and precision screw pair transmission, which is stable, low noise and high transmission efficiency.

1.3 Ensure the concentricity of the test, and on the other hand, eliminate the

influence of irregular samples on the sensor.

Universal Tensile Testing Machine Packing List

1. Main body of the testing machine

1.1 High precision stepper motor 1 set

1.2 Reducing system 1 set

1.3 Load sensor 1

1.4 Precision screw pair 1 set

2. Digital control system 1 set

3. Photoelectric encoder 1

4. Remove auxiliary tools 1 set

5. Technical data:

Including: instructions for use Certificate of conformity, packing list

Confidentiality of technical information and data

1. This technical solution belongs to our company's technical information, the user shall bear the obligation of confidentiality for the technical information and data provided by our company, no matter whether this solution is adopted or not, this clause is valid for a long time;

2. We shall also undertake the obligation of confidentiality with respect to the technical information and data provided by users.
