Flaw Detection Light Meter

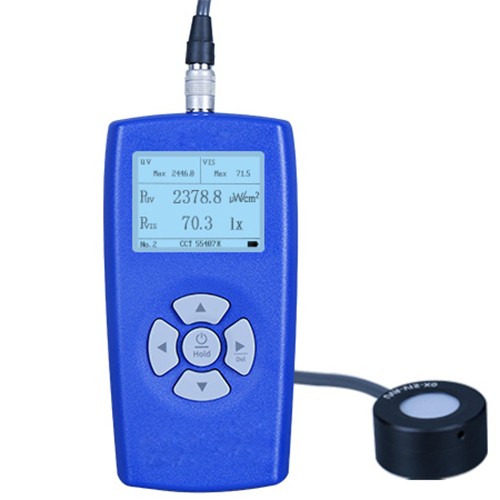

FLM331 Flaw Detection Light Meter is a multifunctional flaw detection light meter, specifically designed for non-destructive testing (NDT). The instrument is equipped with high-precision UV filter and professional UV detector. It can simultaneously measures UV power, visible light illuminance, and correlated color temperature (CCT). It meets the standards for non-destructive testing, penetrant testing, and magnetic particle testing.

Flaw Detection Light Meter Technical Data

Parameter	Value
UV spectral response	315nm-405nm，λp = 365nm
UV power measurement range	0 - 200000 μW/cm²
UV power resolution	0.1 μW/cm²
UV power measurement accuracy	H<50μW/cm²: ±5μW/cm²，H>=50μW/cm²: ±10%H, (H is the standard value)
UV unit options	μW/cm²(default), mW/cm², W/m²
Illuminance measurement range	0 – 1000000Lx
Illuminance resolution	0.1Lx
Illuminance measurement accuracy	≤±(3%H+2Lx) (H is the standard value, calibrated under CIE standard A light source)
Illuminance unit options	Lx (default), FC
Correlated color temperature measurement range	1000 – 100000K
Response time	<0.7s
Test aperture diameter	Φ21mm
Size	188.5mm*75.2mm*30.3mm (L*W*H)
Weight	About 232g (including batteries)
Display	240*160 dot matrix LCD
Power supply	2 AA alkaline dry batteries
Operating environment	Temperature 0~40℃, Humidity <85%RH
Supply voltage	DC3V
Operating current	20mA
Operating power consumption	60mW

Flaw Detection Light Meter Features

Designed for NDT lamp, multi-parameter simultaneous measurement

UV power and visible light illuminance, two important parameters of NDT lamp, can be measured at the same time to ensure that the lamp can play an effective role in magnetic particle testing and penetration testing.

Professional UV detector with high-precision UV filter

The UV measurement uses high-precision UV filter and professional UV detector. It almost no response to visible wavelengths, eliminate the impact of other spectral bands on the measurement accuracy. More accurate than ordinary luminance meter.

High-precision spectral sensor

The instrument is designed with a spectral sensor, and the spectral response matches the V(λ) function. This ensures accurate measurements.

Advanced digital probe technology

The instrument uses advanced digital probe technology, digital signal processing done directly at the probe.This reduces interference and provides excellent measurement accuracy.

Measurement of CCT

Correlated color temperature measurement helps to establish a standardized inspection process, assist in optimizing lighting conditions, improve defect visibility and increase inspection accuracy.

Intelligent statistics function

Maximum values of UV power and visible light illuminance can be counted intelligently, which is useful for data analysis.

1,000,000 Lx and 200,000 μW/cm² large range

The UV power range of the instrument is up to 200,000 μW/cm², and the visible light range is up to 1,000,000 Lx. With the large range design, the demand for high intensity UV or extreme lighting conditions can be met, and fluorescent materials under strong UV irradiation and subtle defects under strong light can be tested.

Flaw Detection Light Meter Packing List

No.	Description	Quantity	Unit
1	Flaw Detection Light Meter	1	pcs
2	User Manual	1	pcs
3	Calibration Report	1	pcs
4	Certificate/Warranty Card	1	pcs
