Optical Density Meter

Product Item : OD117
Category： Other
Optical Density Meter
Optical Density Meter price
OD meter
Product description：OD117 densitometer is an instrument that can measure both optical density and light transmittance. The instrument adopt the diffuse transmission principle which is suitable for the optical density tes
INQUIRY

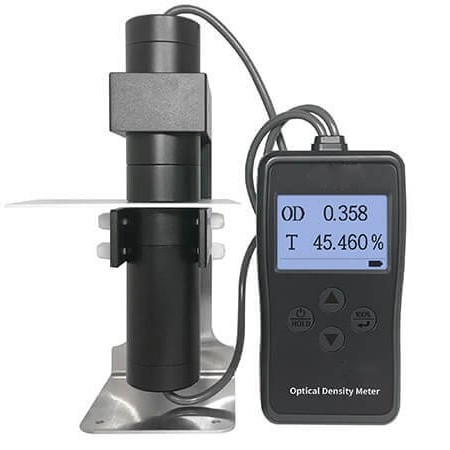

OD117 optical density meter is an instrument that can measure both optical density and light transmittance. The instrument adopt the diffuse transmission principle which is suitable for the optical density test of opalescent translucent materials and frosted matte materials. The light source of the instrument complies with the CIE photopic luminosity function and can pass the inspection of Chinese national.

Optical Density Meter Application

Suitable for testing optical density of aluminized film, film, X-ray film, lens ink and other materials. The optical density meter is suitable for testing the light transmittance of opalescent translucent materials, matte materials.

Optical Density Meter Technical Data

Light Transmittance Measurement Accuracy	±1% (0%-50%) ±2% (50%-100%)
Light Transmittance Resolution	0.0005% (0%-10%) 0.005% (10% -100%)
Optical Density Measurement Range	0.000OD-6.000OD
Optical Density Measurement Accuracy	±0.02 (0-2.00OD) ±1% (2.00-4.00OD) ±2% (4.00-6.00OD)
Optical Density Resolution	0.001 OD (0.00-2.00OD) 0.01 OD (2.00-4.00OD) 0.1 OD (4.00-6.00OD)
Aperture	2mm
Light Source	380nm-760nm, conforming to CIE photopic luminosity function
Weight	About 576g (without battery)
Power Supply	4*AAA alkaline dry battery
Display	240*160 dot-matrixes LCD
Dimension	148mm×76mm×26mm (LWH)

Optical Density Meter Features

High resolution, wide optical density measurement range

The optical density meter has wide measuring range. The optical density value can be measured to OD 6. The transmittance resolution is up to 0.005%

Light transmittance and optical density are measured simultaneously

During the test, the interface displays both the transmittance value and the optical density value of the material

Diffuse transmission light path design

OD117 portable densitometer uses a diffuse transmission light path design, which has the same effect of the integrating sphere. There are relevant instructions in "GB / T 11500-2008 / ISO 5-2: 2001". The regulation has stated that “Use opale glass method instead of integrating sphere method as the basis of ISO standard diffuse transmission density"

Two measurement ways for more flexible to use

The optical density meter has two measurement methods which is more flexible to use.
Fixed measurement: It is more suitable for testing regular or smaller objects.

Hand-held measurement: take the probe down for testing, which is more suitable for irregular and large-volume materials

Optical Density Meter Packing List

No.	Description	Quantity	Unit
1	Optical Density Meter	1	pcs
2	User Manual	1	pcs
3	Black Flannelette	1	pcs
4	Calibration Report	1	pcs
5	Certificate / Warranty Card	1	pcs
6	Aluminum Box	1	pcs
7	Packing Box Dimension 342514 cm（LWH）	1	pcs
