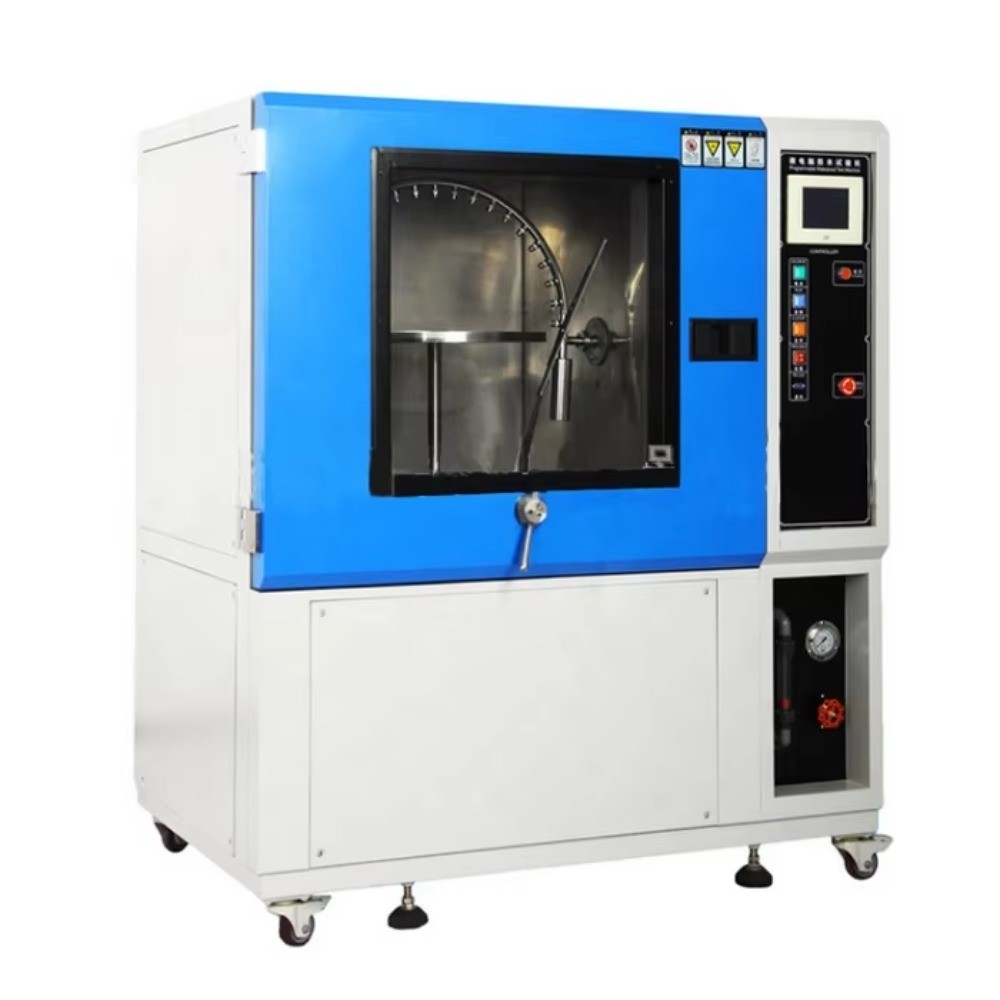

Water and Rian Spray Test Chamber

Product Item : WCT-500
Category： Environmental Test Chamber
Spray Test Chamber
water Spray Test Chamber
rain Spray Test Chamber
Product description：Water and Rian Spray Test Chamber are suitable for exterior lighting and signaling installations as well as automotive lampshade protection, and can provide realistic analogue electronics and componen
INQUIRY

Product Introduction

Waterproof test chambers are suitable for exterior lighting and signaling installations as well as automotive lampshade protection, and can provide realistic analogue electronics and components that may be subjected to various environments such as water and spray testing during transportation and use. to test the waterproof performance of various products.

Product Features

The outer box is processed and molded using a quality (t = 1.2 mm) A3 steel plate CNC machine, and the surface of the shell is sprayed with plastic, which is more bright, clean and beautiful.

Material: Imported high-quality stainless steel (SUS304)

Insulation: rigid polyurethane foam + fiberglass

Turntable: Table made of PVC rigid plate (corrosion resistant)

The parts of the tank that come into contact with water are made of stainless steel or copper

The dial control system can choose between a simple programming controller or a full-color touch control system independently developed by Thermal Technology.

The control interface is friendly, simple to operate, stable operation, low noise design, low carbon and energy saving,

The swing tube is driven by a treadmill with accurate angles and the swing speed can be set and adjusted. The nozzles of each set radiate from the center of the turntable.

The nozzle is non-diffusion and has an angle adjustment device.

Automatic lifting of the water surface.

German original high-pressure pump, jet heating device.

To prevent impurities from clogging the nozzle, a water filtration system is provided.

The large area of visualized tempered glass door makes it easy to observe the test sample in the test box.

The dial control system can choose between a simple programming controller or a full-color touch control system independently developed by Thermal Technology.

The control interface is friendly, simple to operate, stable operation, low noise design, low carbon and energy saving.

Standards

1. GBJ150.8 rain test method

2. GB2423.38 water resistance test method

3. IEC60068-2-68 water resistance test method

4. GB4208 water resistance test method

5. IEC60529 water resistance test

6. GB/T4942.1 Water resistance test method

7. IEC60034-5 test method for water resistance

8. ISO 20653 Water resistance test method

Technical Data

model		A		B
Internal dimensions (mm).		800*800		1000*1000
External dimensions (mm).		145016501150		165018501350
Performance indicators	S prayer ring radius	375 mm
	pipe diameter	& phi; 16 mm
		Nozzle diameter	& phi; 0.4 mm
		Aperture spacing	50 mm
		S wing tube amplitude	± 45,± 60,± 90,± 180 ° (theoretical value.))
		Test the bending rotation speed	1 rpm stepless speed regulation (optional).
Safety and protection		Leakage, short circuit, motor overheating
Operation control system		Imported FM converter
		Time controller	Imported Programmable Time Computer Integrated Controller (Admiralty Mo)
		Waterpressure control	flowmeter
		Observe the surface	Tempered glass doors are visible in large areas
		Water supply system	Water storage tank, booster pump
