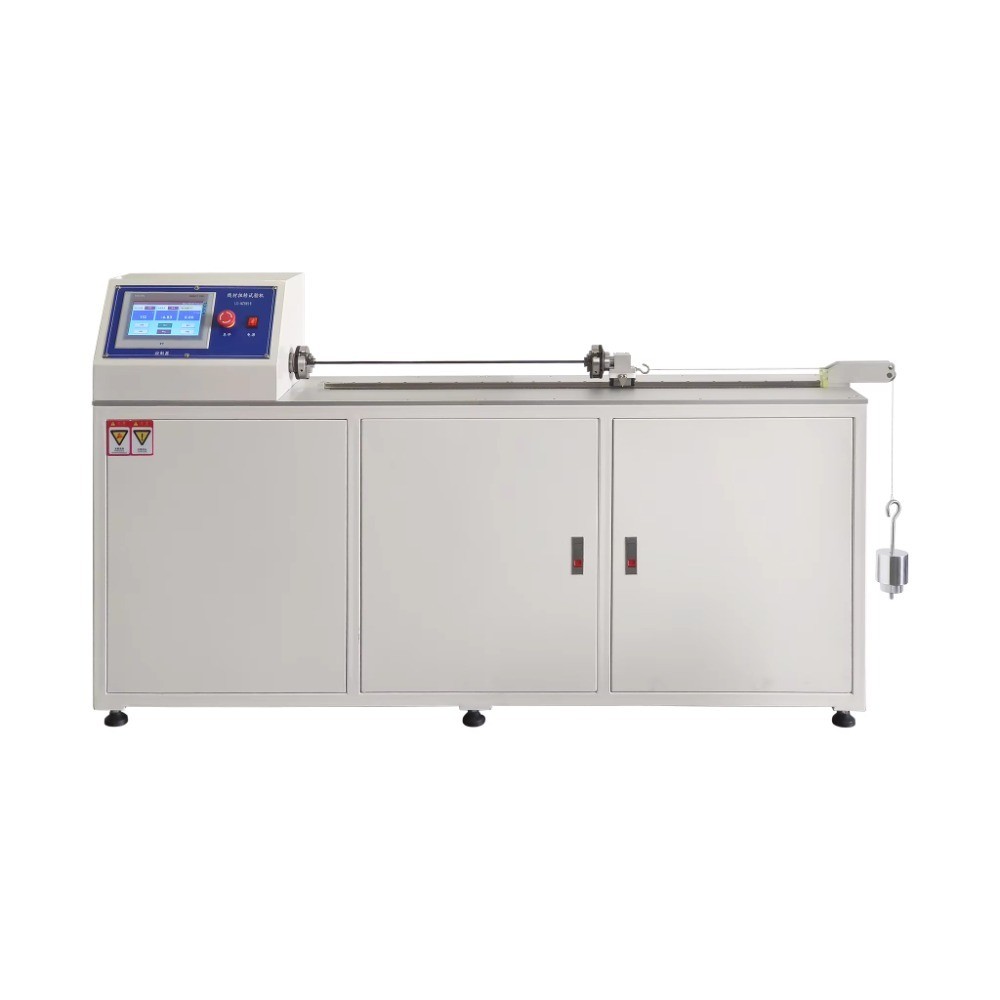

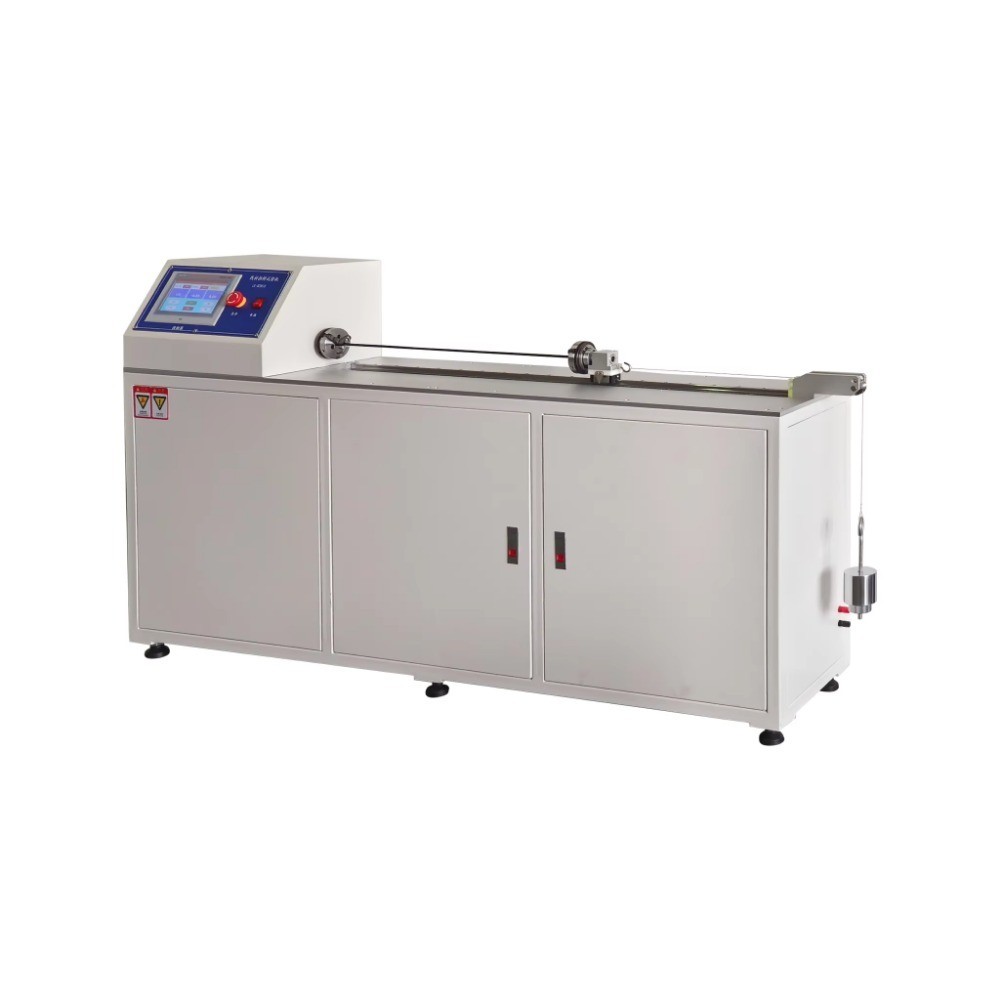

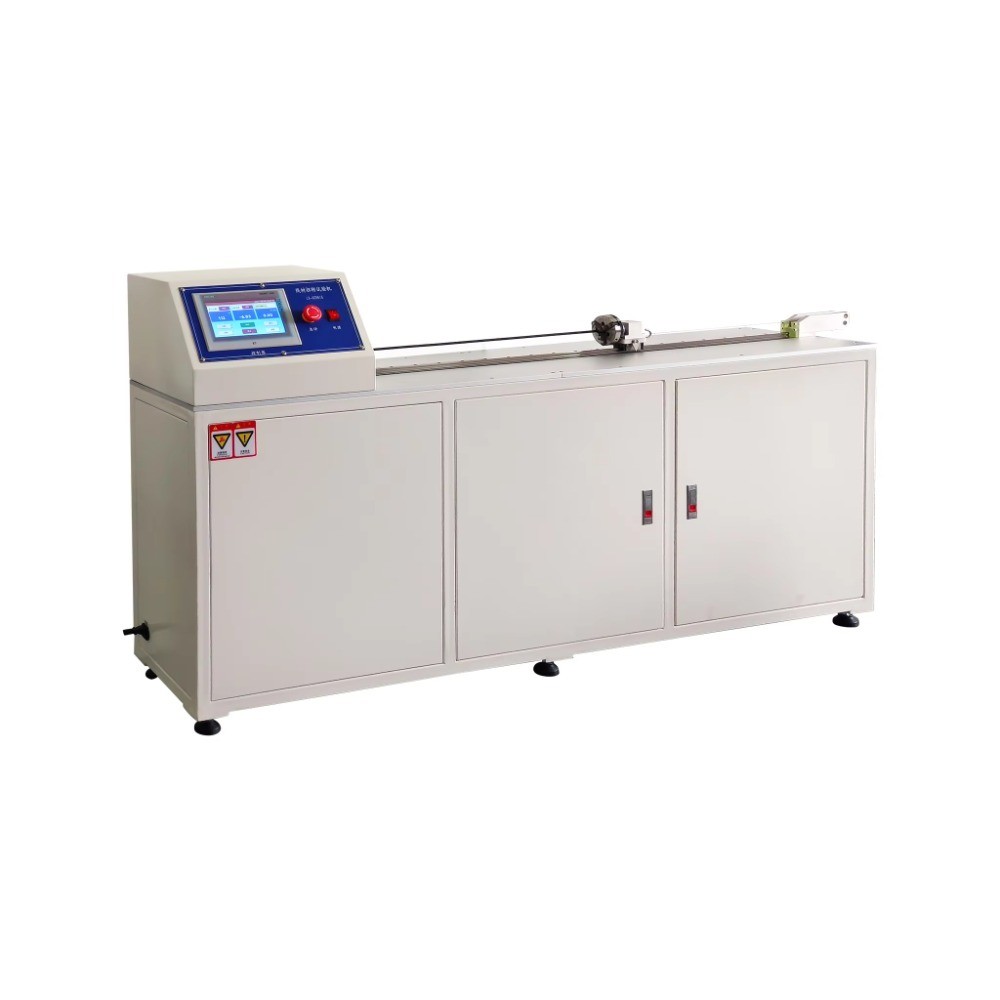

Wire Torsion Testing Machine

Product Item : ZYTS-1000
Category： Other
Torsional Cable Testers
Torsion testing machine
Torsion Testers
Product description：This equipment is suitable for testing the ability of fiber optic cables to withstand mechanical torsion. By applying positive and negative forces, qualified fiber optic cables require that the fiber
INQUIRY

Product Introduction

This equipment is suitable for testing the ability of fiber optic cables to withstand mechanical torsion. By applying positive and negative forces, qualified fiber optic cables require that the fiber not break, that the attenuation change of the fiber does not exceed the values specified in the fiber optic cable product standard, that the cable sheath does not break, and that the cable core assembly is not damaged.

Features

The equipment adopts man-machine interface and PLC control, TFT true color screen displays test parameters and test data, and is equipped with different weights and different sheaths, which can meet the torsion test of optical cables, unlimited speed regulation, beautiful appearance, stable performance, simple operation, safe use and other standard design and manufacturing.

Technical Data

Test station	1 stop
Twist the corner	0°± 360° (any setting)
Maximum torsion length	1000 mm (adjustable)
Counting function	Cable breaks and power outages save the number of tests
Total number of features	0-999999 times
Maximum torsion length	1000 mm (adjustable)
Test speed	0-30 times/min adjustable (direct input times)
Counterweight	1.5 kg, 2.5 kg, 4 kg, 4.5 kg, 5 kg
Electronic control components	Imported Omron, stable and durable
motor	servo motor
System display	7-inch touch screen control
Total power	750W
power supply	AC 220 volts/50 Hz/5A
volume	18136100 cm
weight	About 100 kg
