ICI Mace Snag Tester

Product Item : ZYST-4S
Category： Textile Testing Equipment

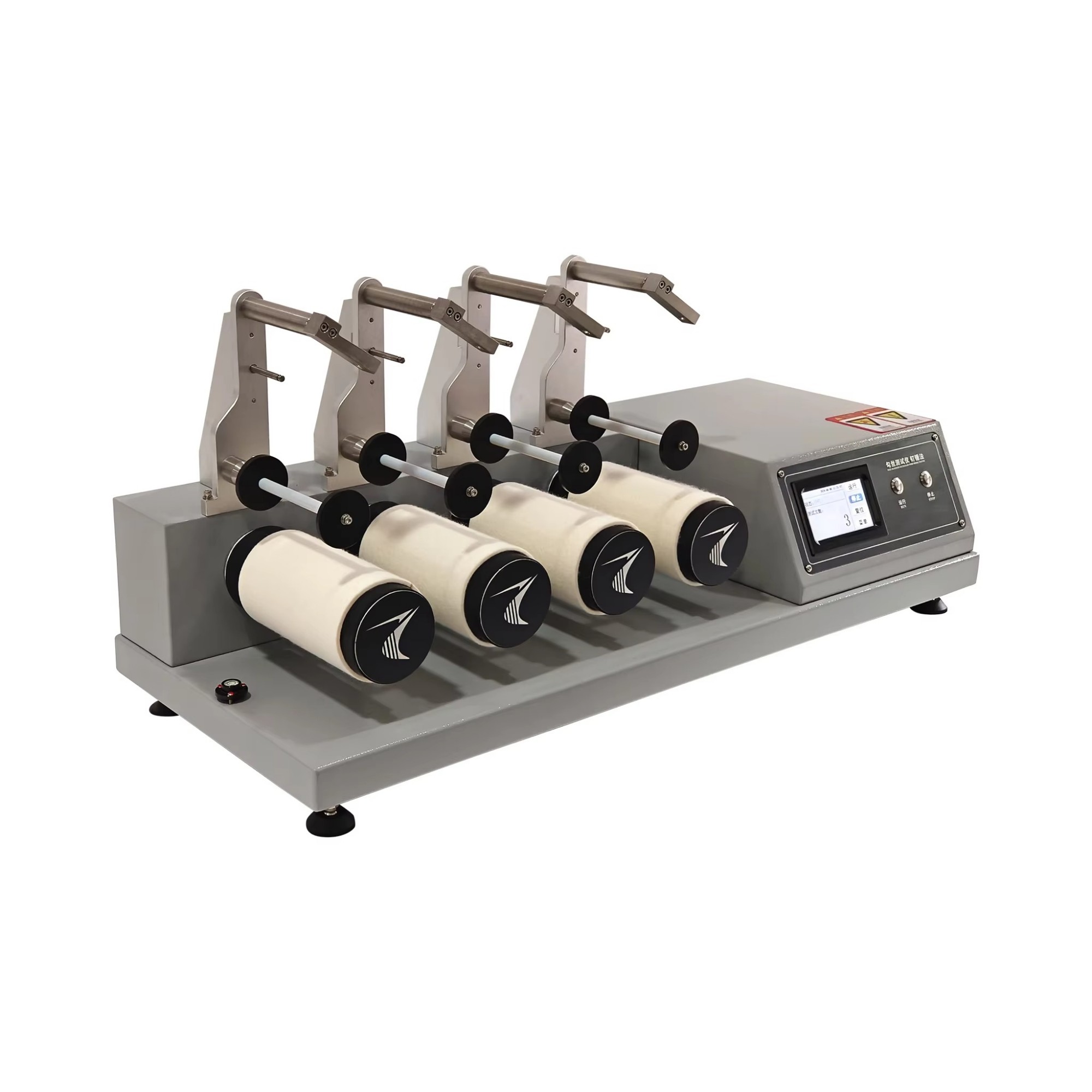

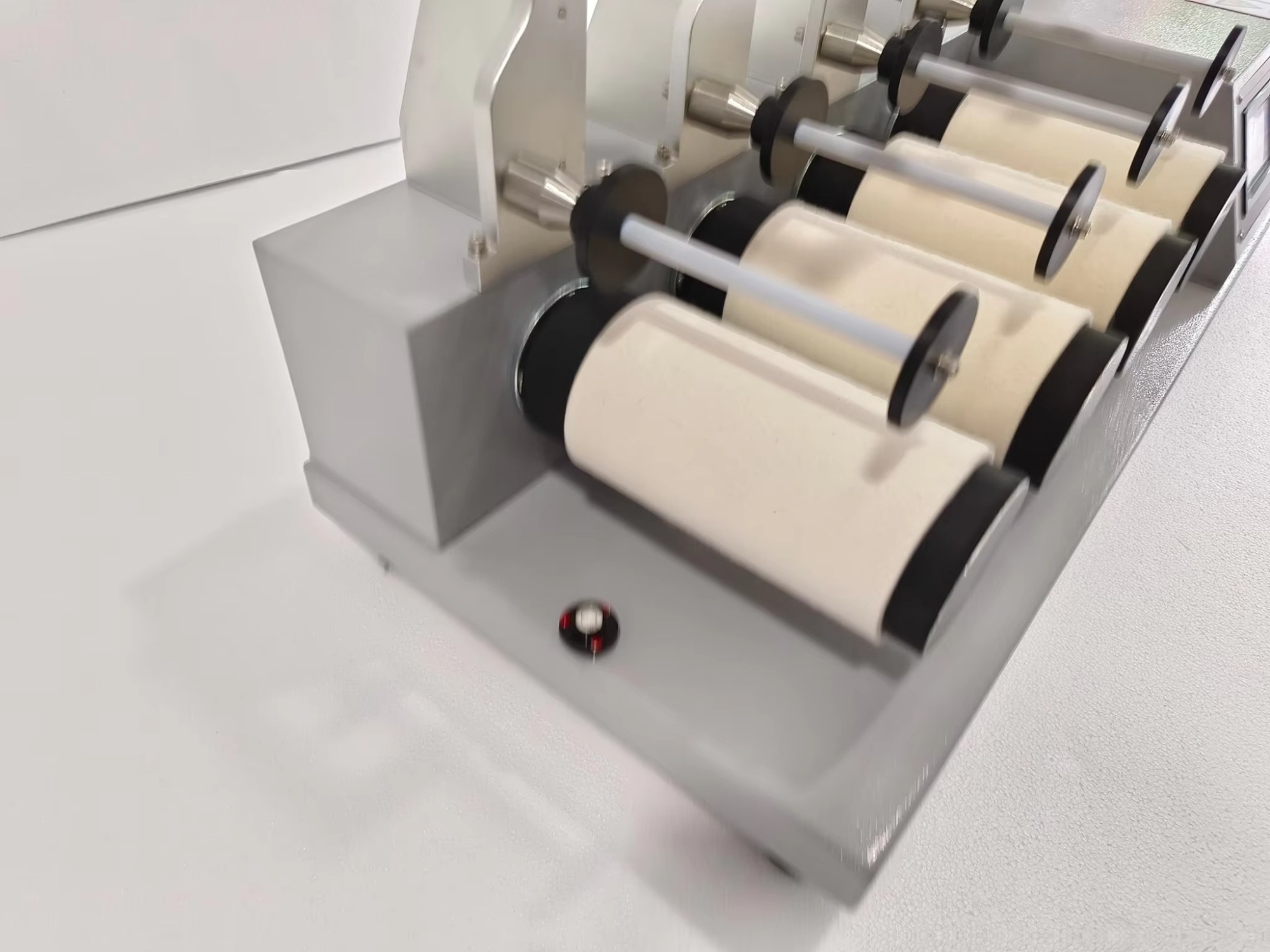

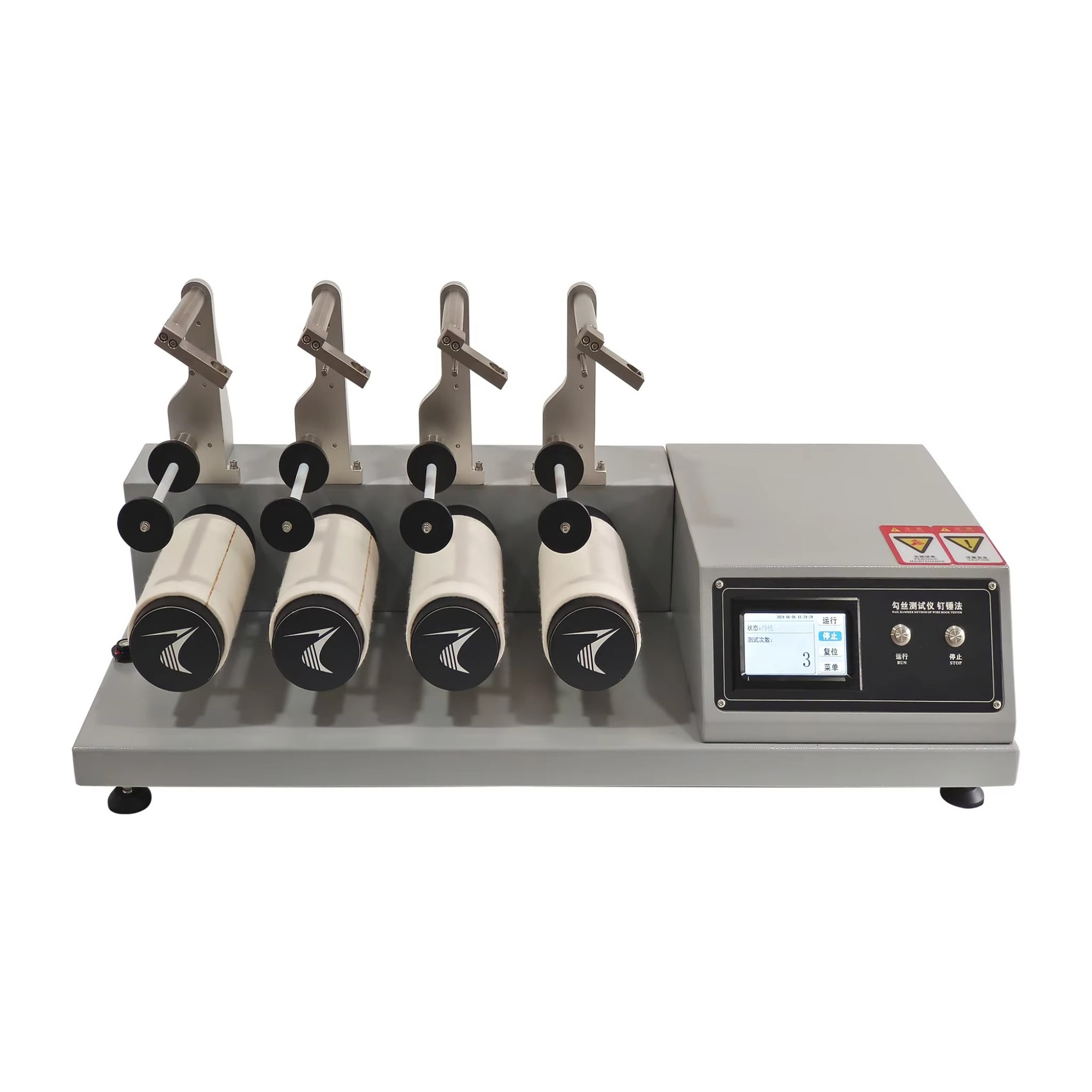

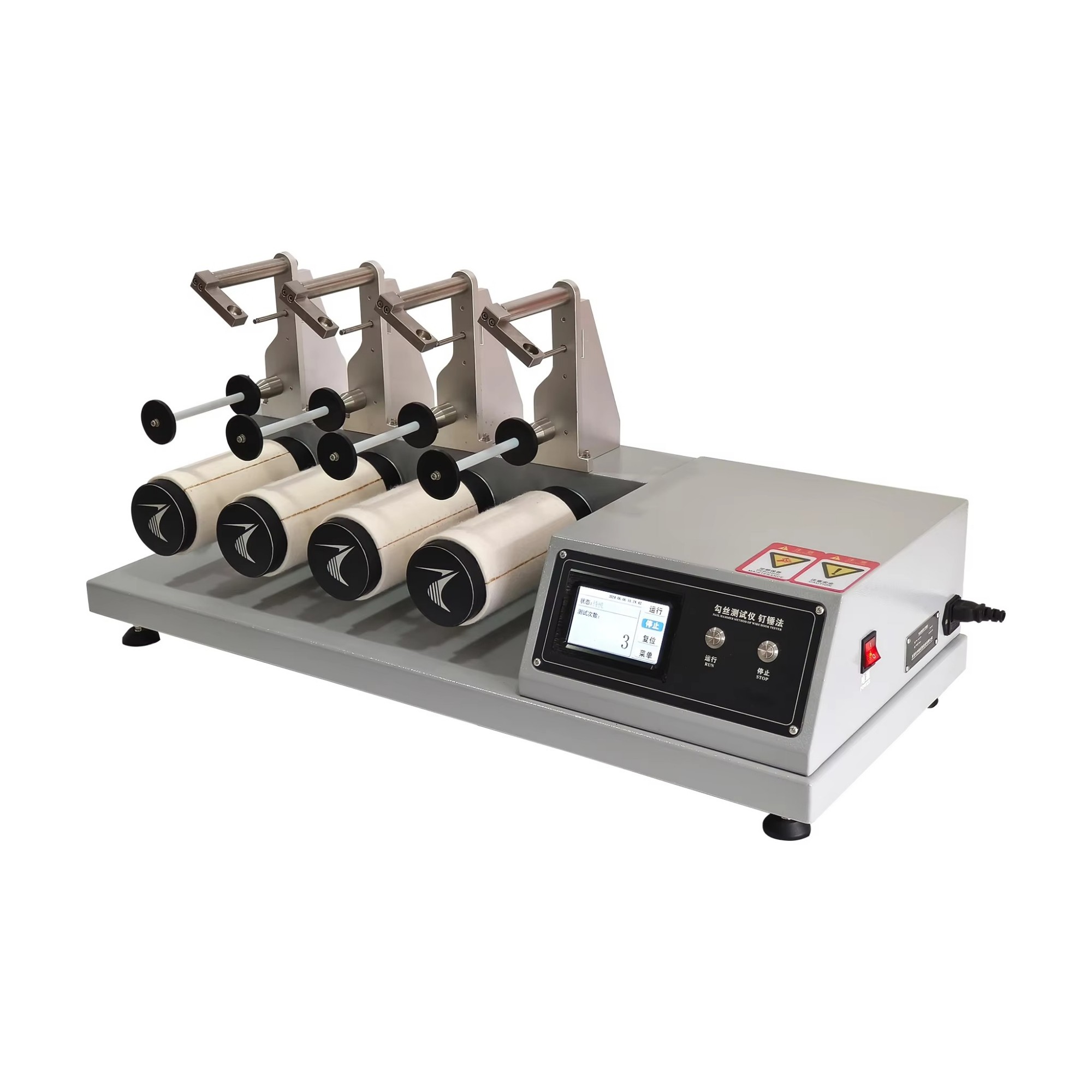

ICI Mace Snag Tester
Mace snag tester for sale
Mace snag tester price
Product description：The ICI Mace Snag Tester is with 4 stations and is suitable for detecting knitted fabrics, woven fabrics and other fabrics that are easy to hook, especially chemical fiber filaments and textured yarn
INQUIRY

Product Introduction

The ICI Mace Snag Tester is with 4 stations and is suitable for detecting knitted fabrics, woven fabrics and other fabrics that are easy to hook, especially chemical fiber filaments and textured yarn fabrics.

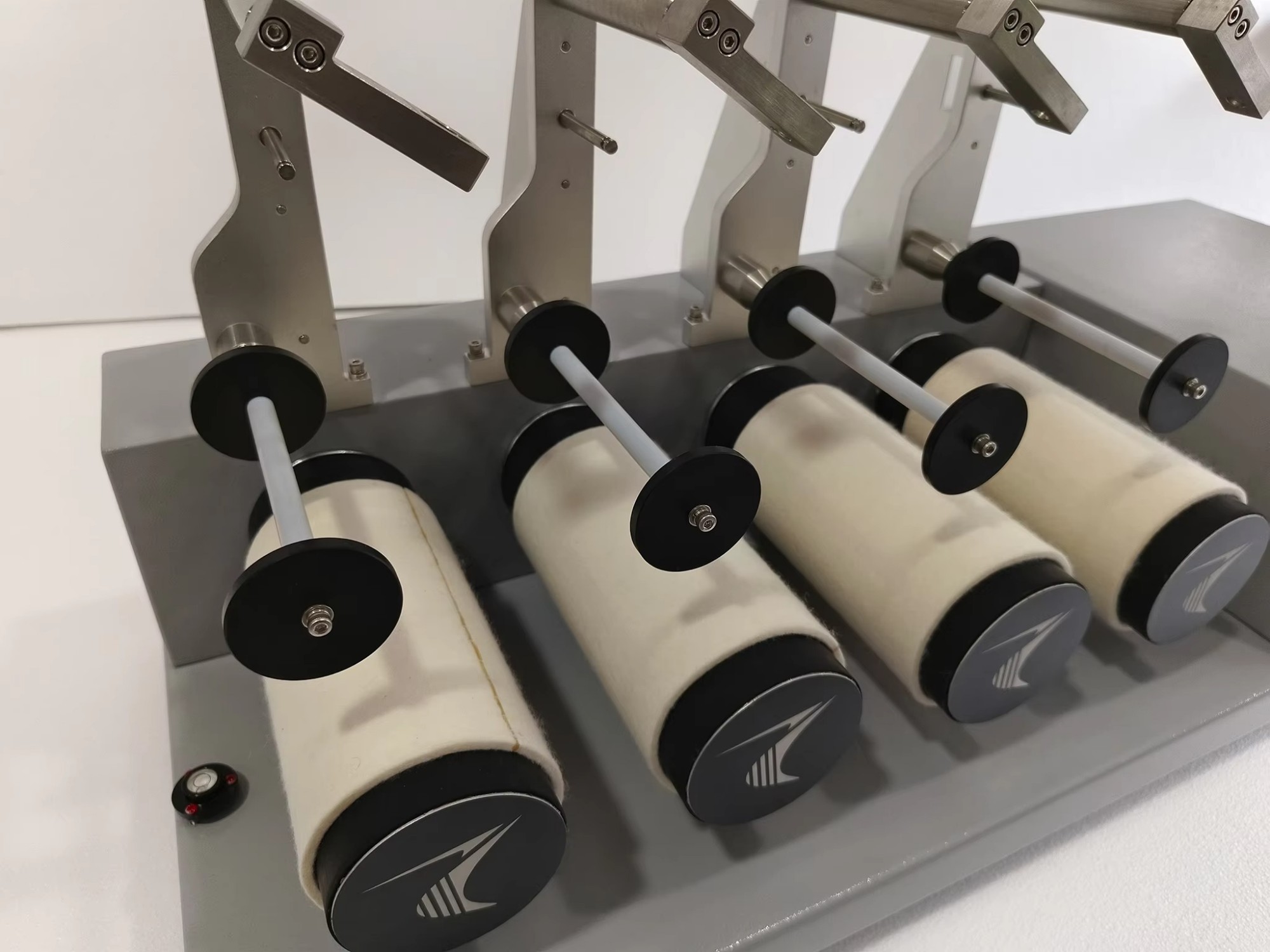

The tester places a hammer suspended by a chain around the guide rod on the surface of the sample covered in the drum. When the drum rotates at a constant speed for a certain number of times, the sample is removed and graded according to the rating graph in the rating box.

Standard

ASTM D3939, GB 11047 and JIS L 1058 standards

Technical Data

Model	ZYST-4S
Number of workstations	4 stations
Rotate barrel size	Diameter Φ82mm (including 3mm thickness of purchased rubber), 210mm width
The number of revolutions of the drum	60 ± 2 rpm
Nail hammer total mass	160 ± 10g (including isometric implantation of 11 studs)
Suture stitches	Exposed length 10 mm, tip radius: r0.13 mm
Fixed guide rod	Working width 125 mm, diameter 10 mm
The distance between the nail hammer and the guide rod	45 mm
power supply	AC 220 volts; 50 Hz
Exterior dimensions	910 mm × 360 mm × 460 mm
weight	50 kg
