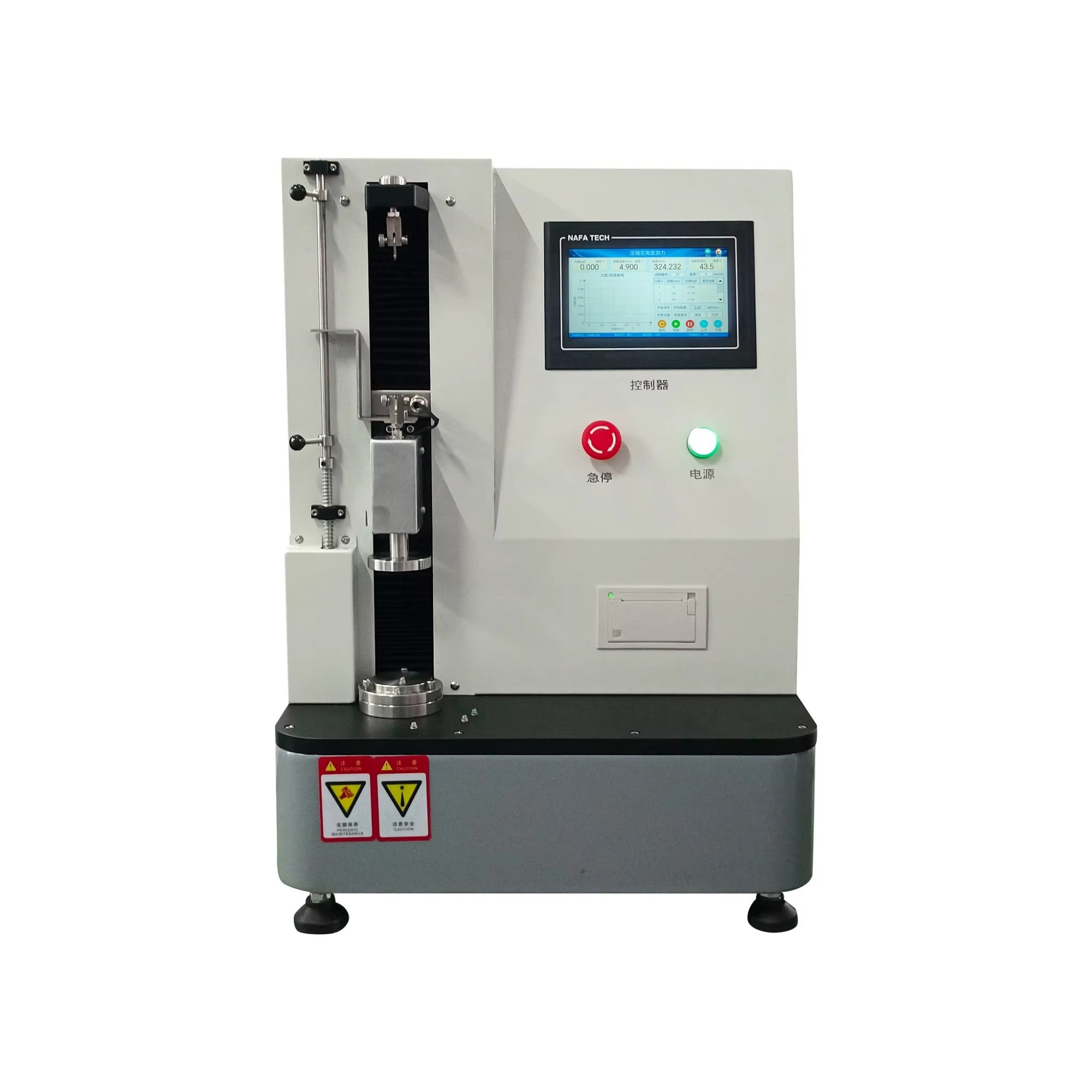

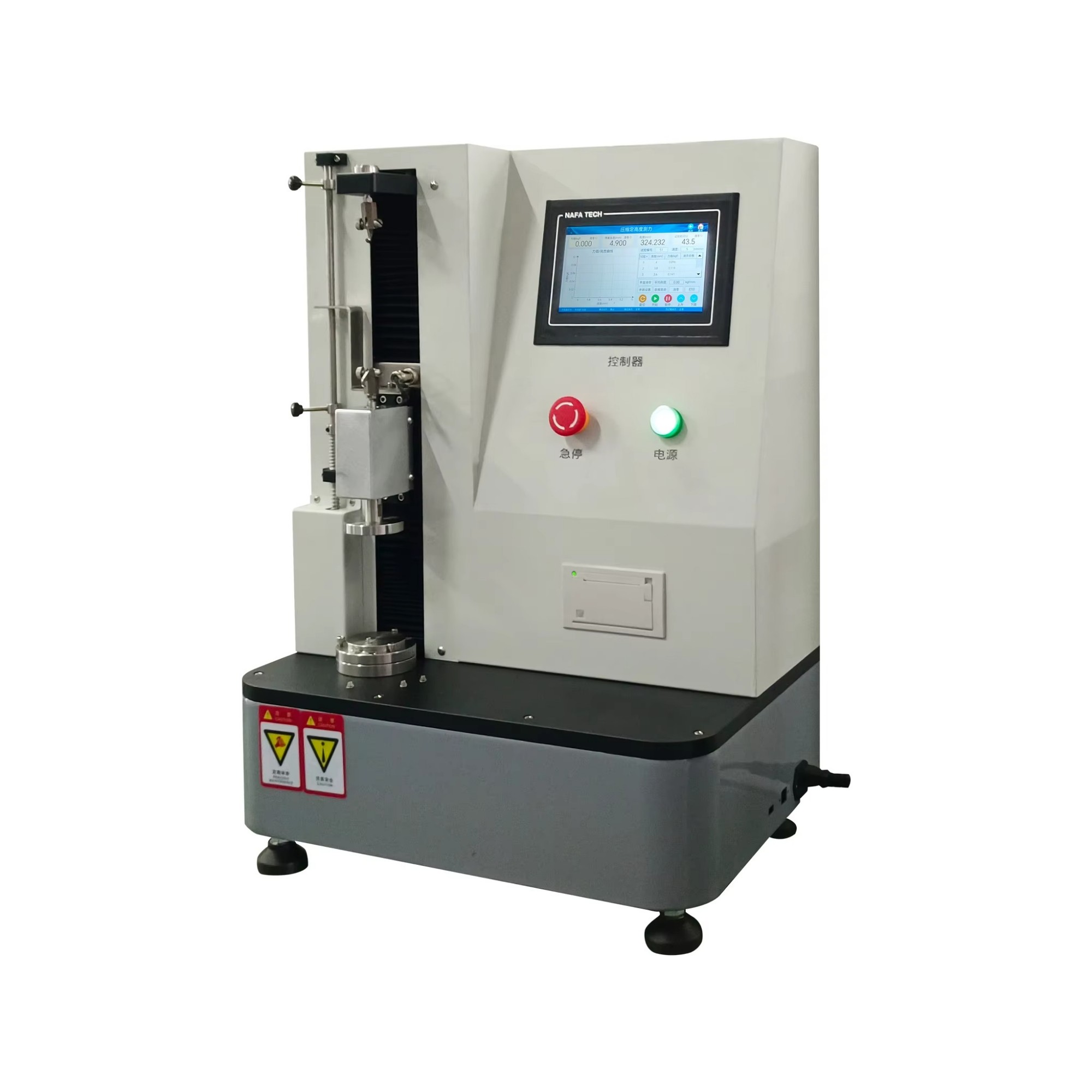

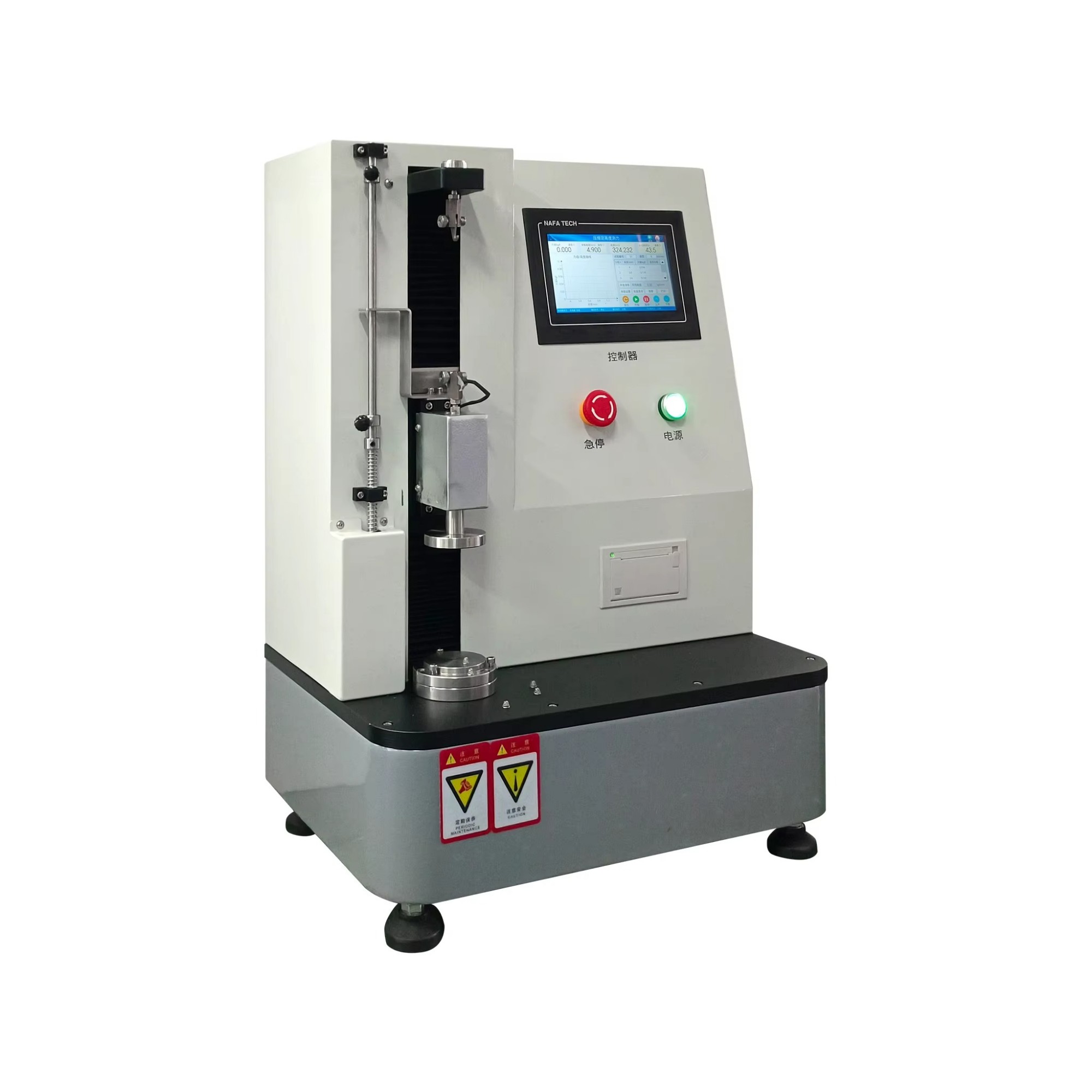

Spring Tensile Tester

Product Item : ZYT-120
Category： Tensile Testing Machine
Spring Testing Machine
Spring Tensile Tester
spring compression tester
Product description：The spring tensile tester is made in accordance with the technical requirements specified in JB/T7796-1995 "Technical Requirements for Spring Compression and Tensile Testing Machines". It is mainly us
INQUIRY

Product Introduction

The spring tensile tester is made in accordance with the technical requirements specified in JB/T7796-1995 "Technical Requirements for Spring Compression and Tensile Testing Machines". It is mainly used to test the strength of various precision coil springs and elastic elements, that is, to test the test force of the spring when it is deformed or to determine the test force of the spring at a certain height. The machine can be customized to meet the different requirements of users.

Technical Data

Test force	10kgf (100 N)
Resolution	0.01 N
Precise measurement range	1% FS-100 % FS
Indicates the repeatability error of the value	Less than ± 0.5%
Indicates the relative error of the value	less than ±0.5%
Test itinerary	120 mm
Speed range	0.1-250 mm/min (infinitely variable)
Transmission mechanism	High precision ball screw
Compression disc diameter	Ф30 mm
Show method	Large LCD monitor, Chinese monitor
Drive motor	High precision servo motor and drive system
Data processing	Automated data acquisition and processing, which can be saved, queried, and printed
Machine weight	70 kg
Power supply	220V
