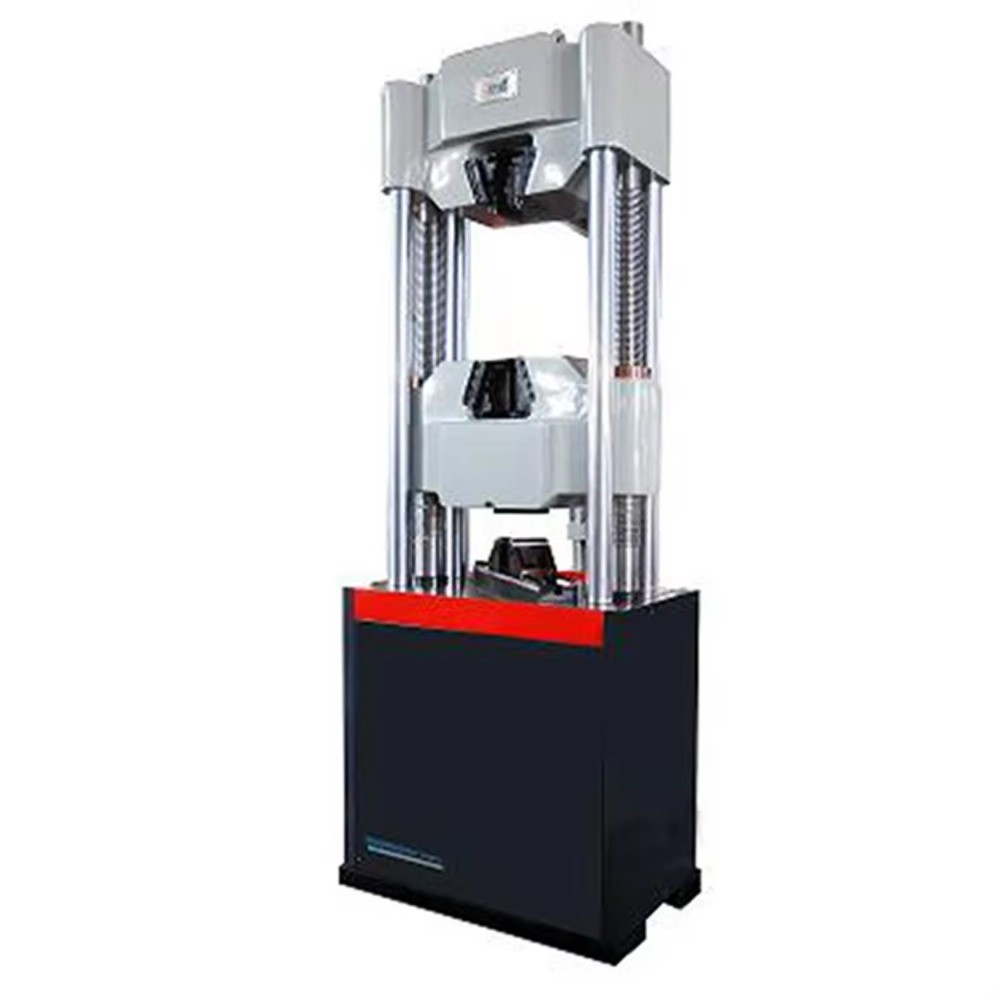

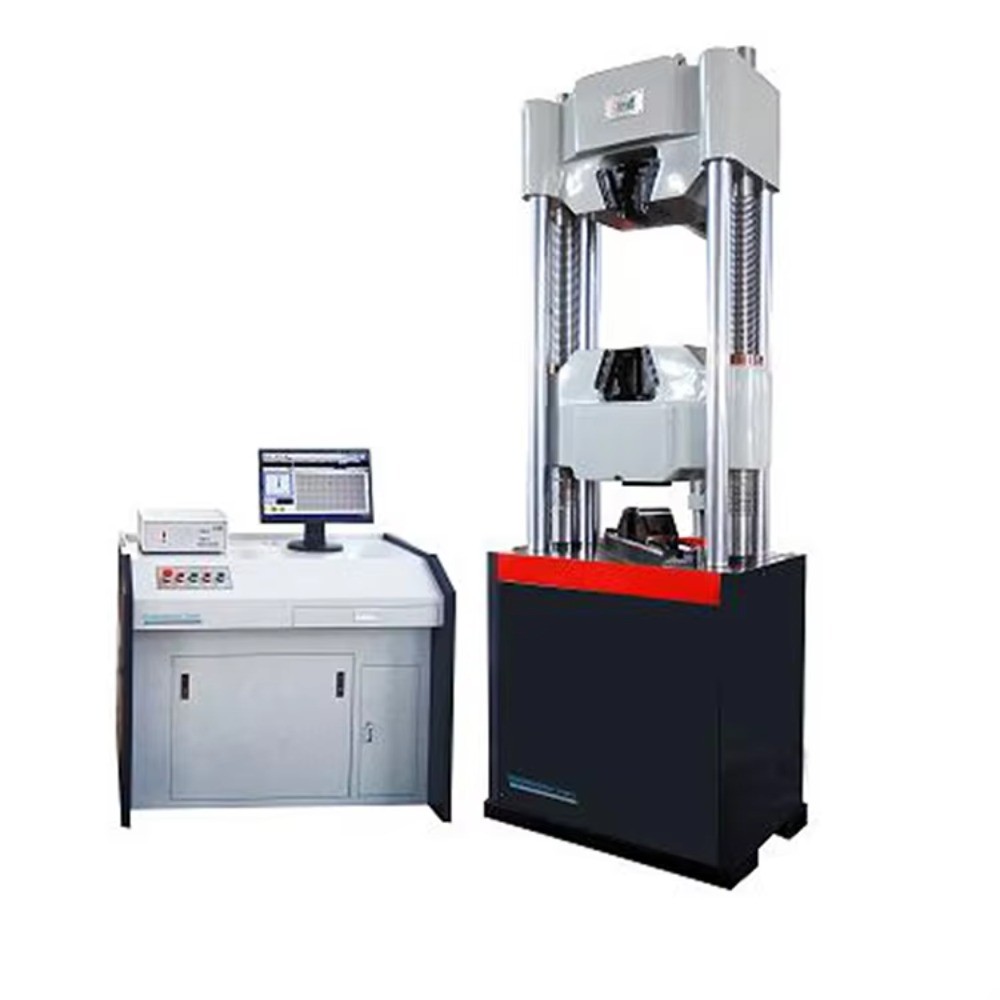

Servo Universal Tensile Tester

Product Introduction

This equipment is primarily used for testing the mechanical properties of metallic and non-metallic materials (such as metal rods, plates, plastics, rubber, composite materials, etc.). It can perform tensile, compression, bending, and shear tests to determine key mechanical parameters such as tensile strength, yield strength, elongation, and elastic modulus.

Features

High-precision testing:  Utilizes electronic sensors and control systems for high testing accuracy, suitable for force measurements up to 1000 kN (approximately 102 tons).

Multi-functionality: By changing fixtures and software settings, various testing modes can be achieved to meet the testing needs of different materials.

Automated control: Equipped with a computer control system, it can automatically collect data and generate test reports, improving testing efficiency.

Technical Data

1. Maximum test force: 1000 kN;

2. Test force measurement range: 2%-100% FS;

3. Test force indication accuracy: Indication accuracy ± 1%;

4. Maximum tensile space: 620 mm;

5. Maximum compression space: 520 mm;

6. Flat specimen clamping thickness: 0-30 (standard 0-15);

7. Round specimen clamping diameter: Φ13-Φ40;

8. Maximum distance between bending supports: 500 mm;

9. Column spacing: 510 mm;

10. Piston displacement indication accuracy: ± 0.5% FS;

11. Deformation measurement resolution: 0.001 mm;

12. Deformation measurement accuracy: ± 0.5%;

13. Sensors: Hydraulic pressure sensor, photoelectric sensor, extensometer;

14. Control method: Electro-hydraulic servo closed-loop control, smooth switching of control methods;

15. Display method: Computer screen displays test force, piston displacement, sample deformation measurement values, test curve, zeroing, and calibration;

16. Main unit size: Approximately 850 mm × 665 mm × 2340 mm;

17. Control cabinet dimensions: 1010 mm × 650 mm × 870 mm;

18. Main unit weight: Approximately 3000 kg;

19. Oil pump motor power: 2.2 kw

20. Beam movement motor power: 0.55 kw
