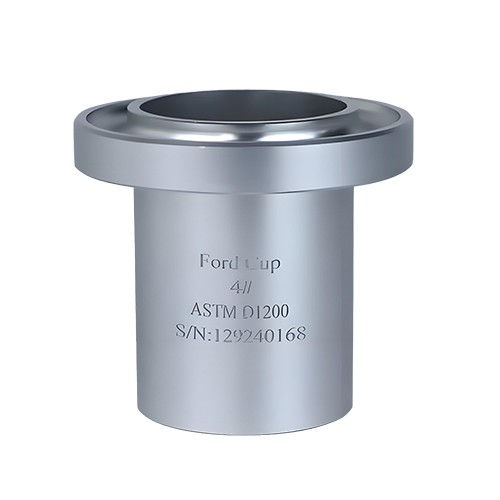

ASTM Viscosity Ford Cup 4

Product Item : ZHIYI 25-124
Category： Viscosity
ford Cup
Viscosity ford Cup
ASTM ford Cup
Viscosity ford Cup 4
Product description：Ford Cups made by us are in accordance with International Standard ASTM D1200, D333, and D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All Ford cups are mach
INQUIRY

Ford Cups is produced in accordance with International Standard ASTM D1200, D333, D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All our Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.

Technical Parameters :

*Internal Diameter: 50 ±0.05mm

*Outer Diameter: 86±0.1mm

*Internal Orifice Length: 10±0.1mm

*Come with calibration certificate

Detail Description :

Details/Ford Cup	Ford Cup( No.4)
Internal Vertical Height (mm)	43±0.1
Internal Orifice φ（mm）	4.12
External Orifice φ（mm）	6.0±0.5
Measurement Range (cSt）	70-370
Suitable Flow Time( Sec）	20-105
Model information	ZHIYI-FC-4P
