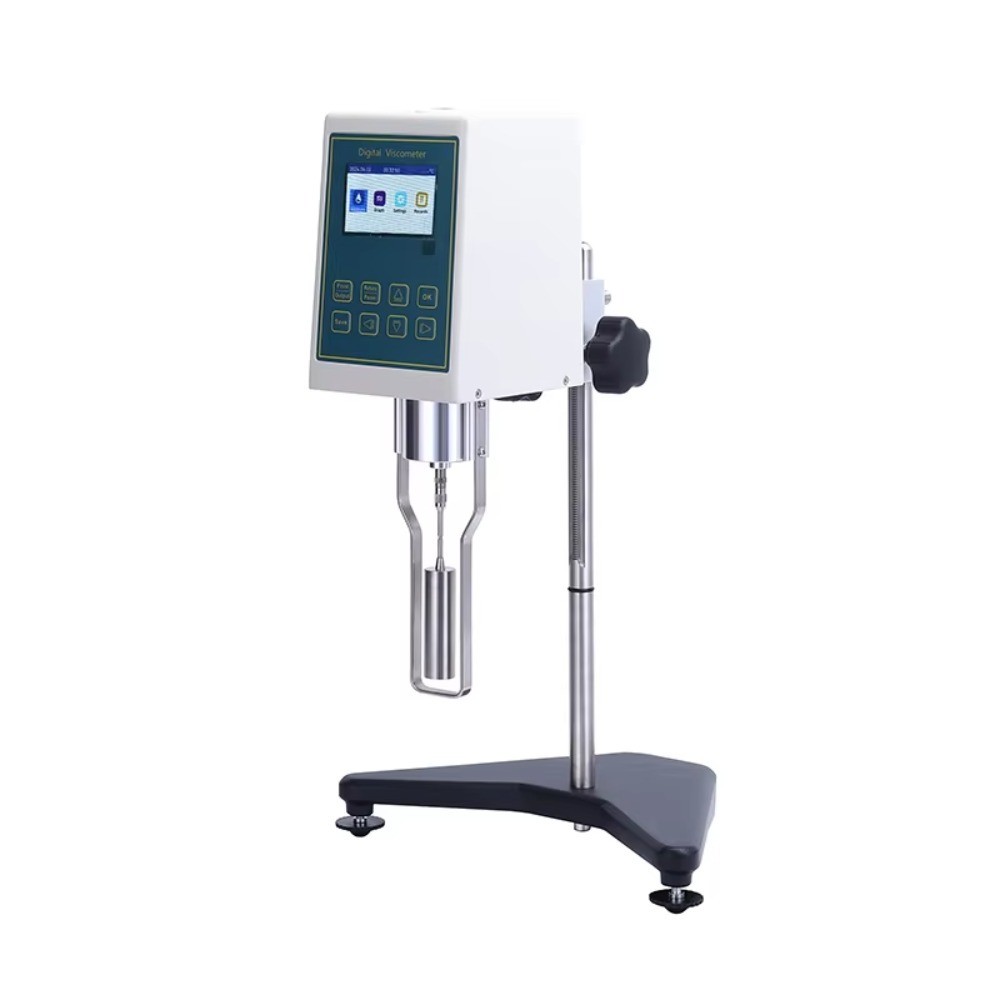

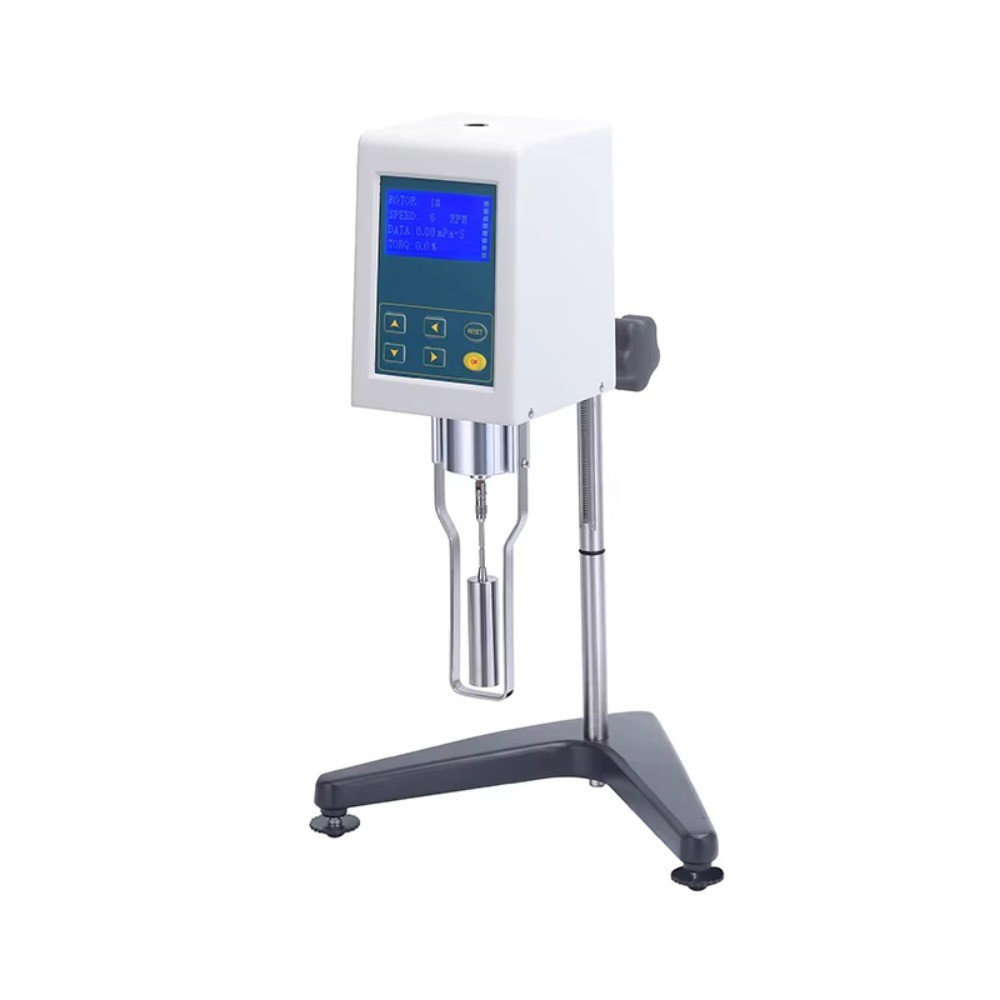

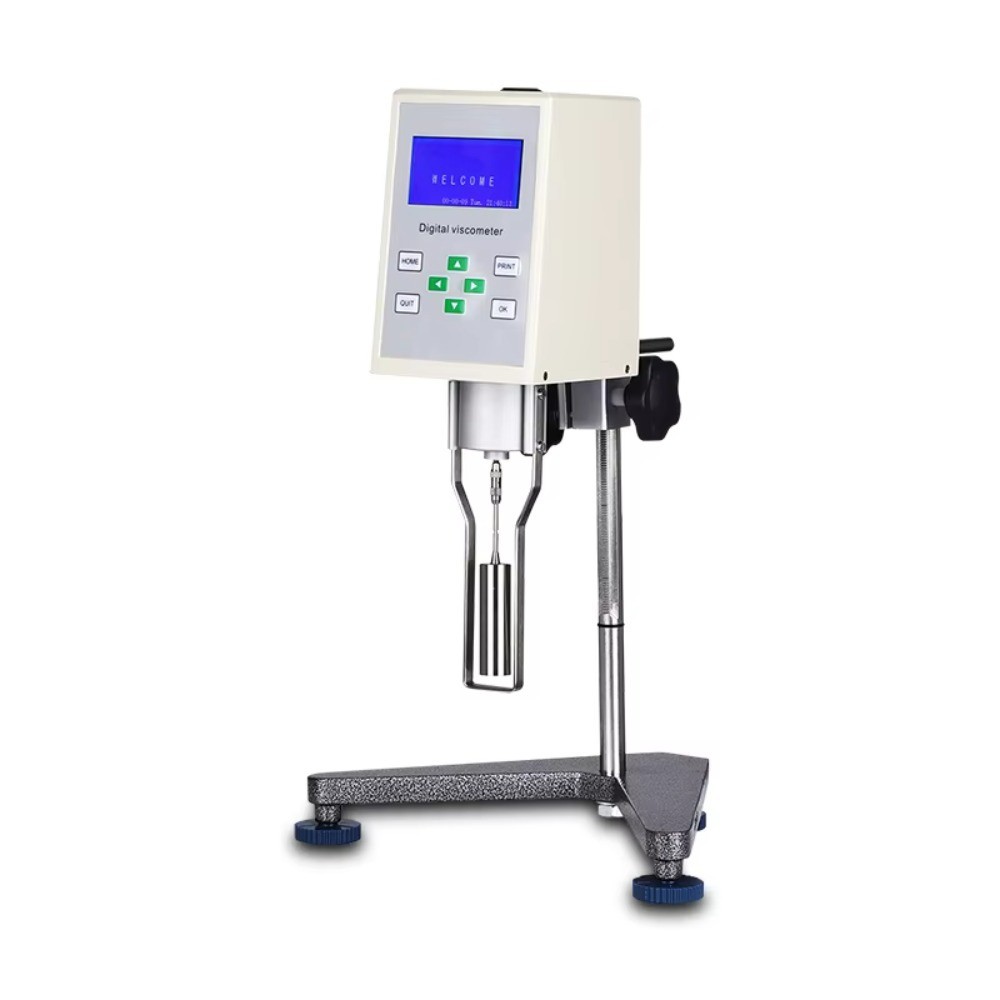

Laboratory Viscosimeter

Product Item : ZYDV-1S
Category： Viscosity
viscometer
viscosimeter
Viscosity Measuring Instrument
Product description：Viscometers are instruments used to measure the viscosity of a fluid, and are available in a variety of configurations. It can be used for viscosity test of epoxy, sealants, and paste.
INQUIRY

Product Introduction

Viscometers are instruments used to measure the viscosity of a fluid, and are available in a variety of configurations. It can be used for viscosity test of epoxy, sealants, and paste.

Features

Measure Range: up to 6,000,000mpa.s

High sensitivity，

Microcomputer control

Rotational speed stabilization

Temperature display

TFT colourful display

Technical Data

Model	ZYDV-1S	ZYDV-5S	ZYDV-8S	ZYDV-10S
Impetus	AC110-240V DC12V 120W
Measurement range	1-1x10 ^ 5mpa.s	1-1X10 ^ 5mpa.s	1-2x10 ^ 6mpa.s	1-6x10 ^ 6mpa.s

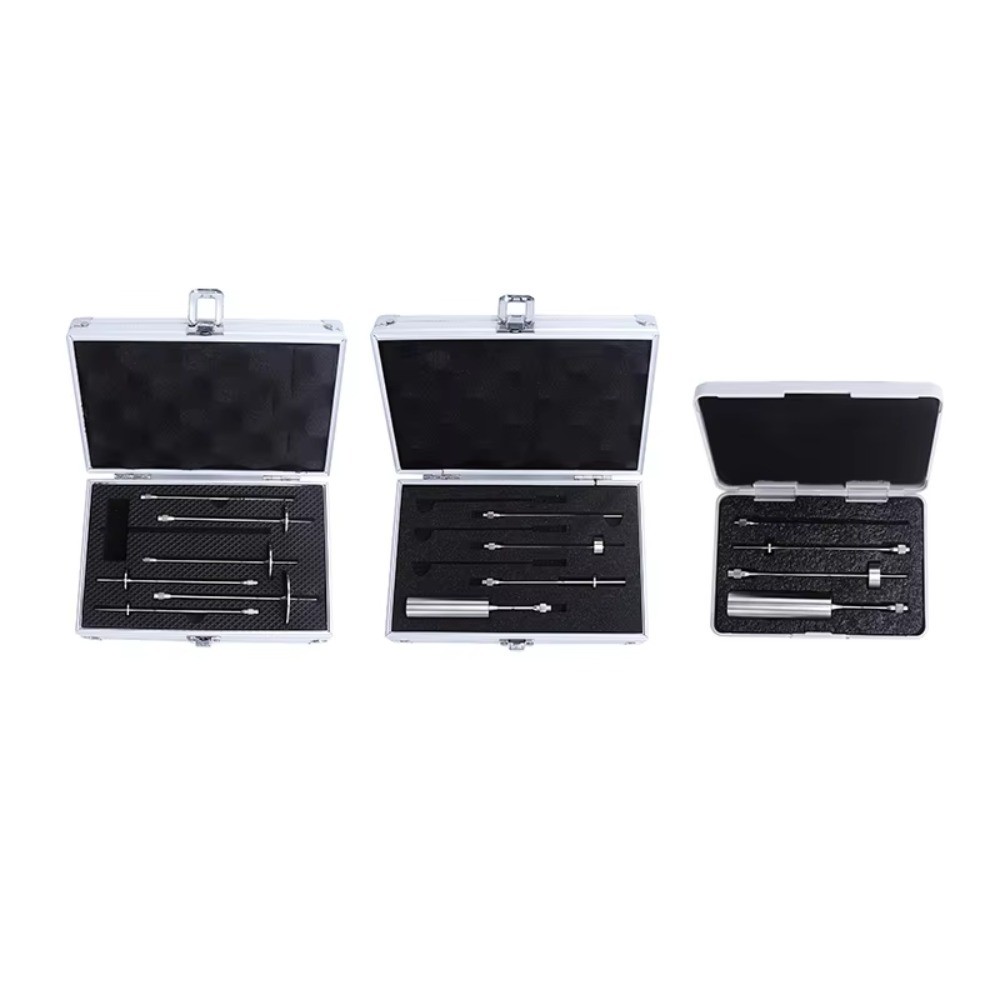

rotor	1#、2#、3#、4 # 0# rotor is optional for measuring ultra-low viscosity 0.1 ~ 100mpa.s
Rotor speed	6, 12, 30, 60 rpm		0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm
Once the measurement result is stable, the rotor stops automatically
The sample size required for each measurement	250-400 ml
Measurement accuracy:	±1%	±1%	±1%	±1%
Temperature sensor	include

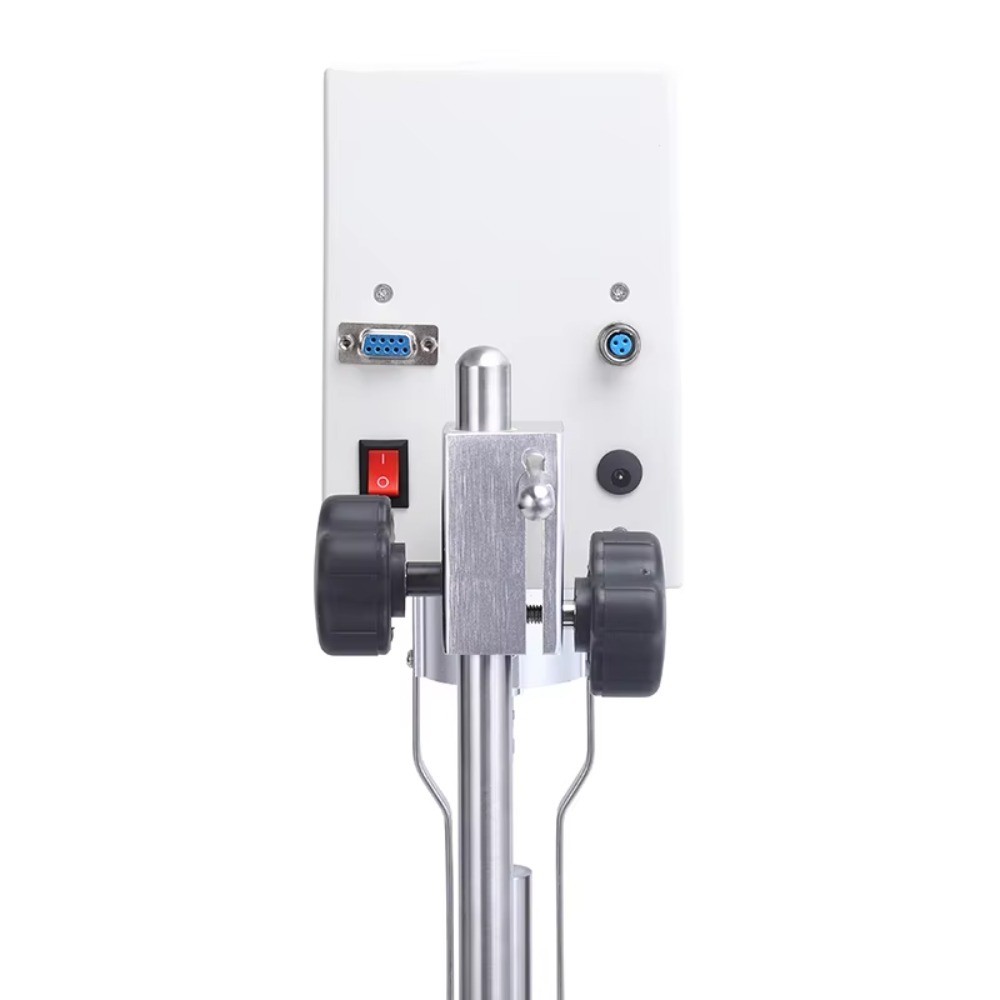

Computer RS232	included
Work environment	5-35 °C, humidity ≤ 80%
wrap	415335370 mm
Net weight:	included
