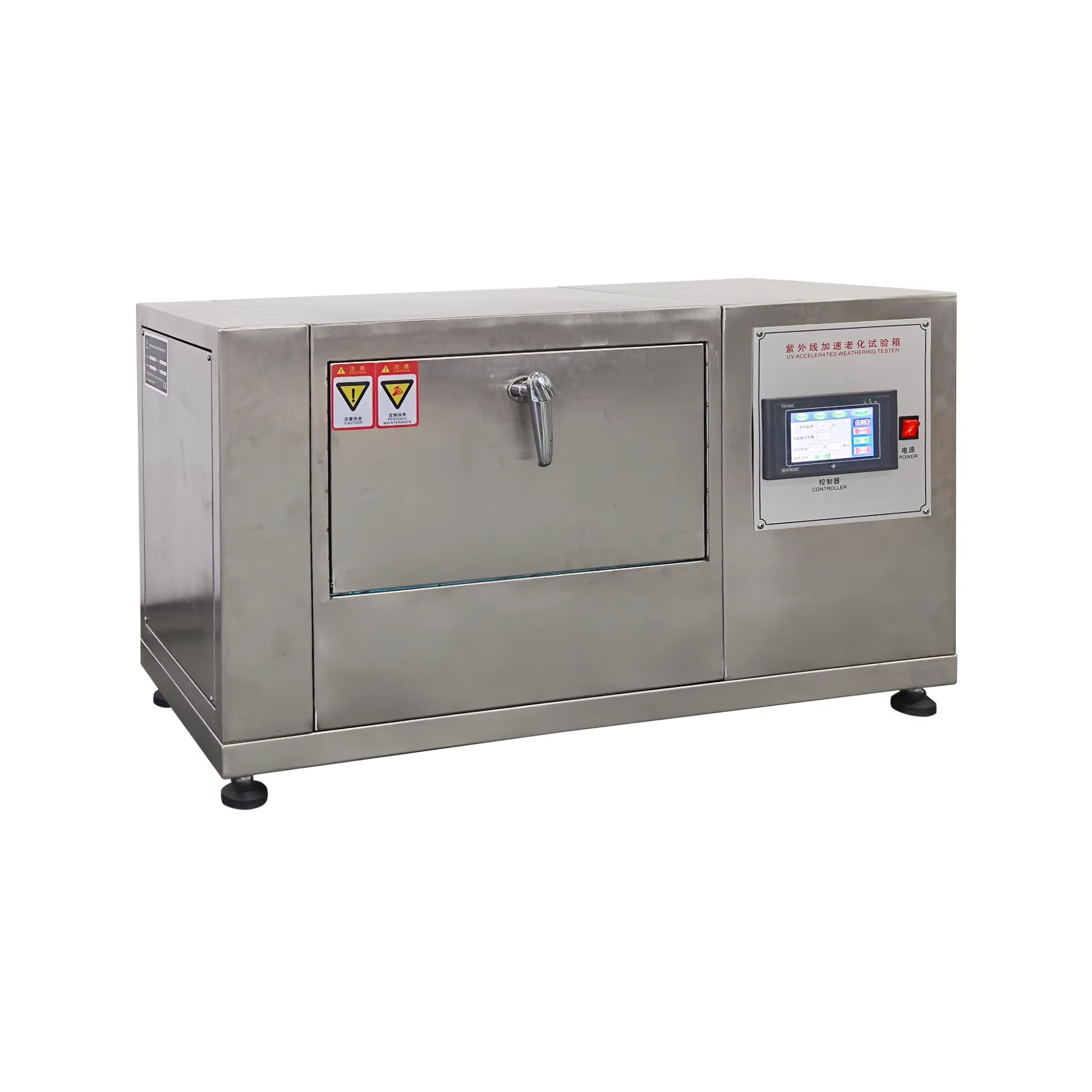

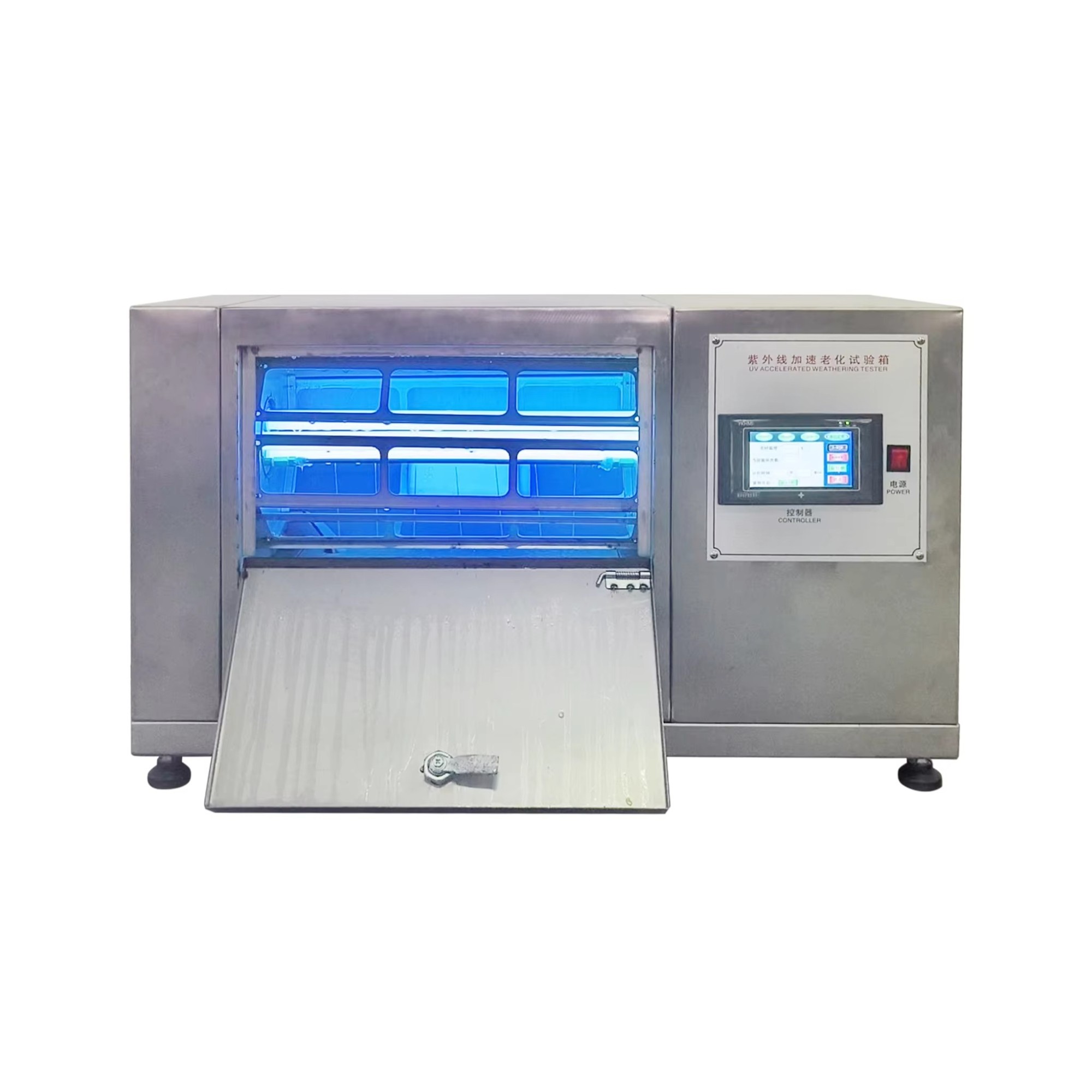

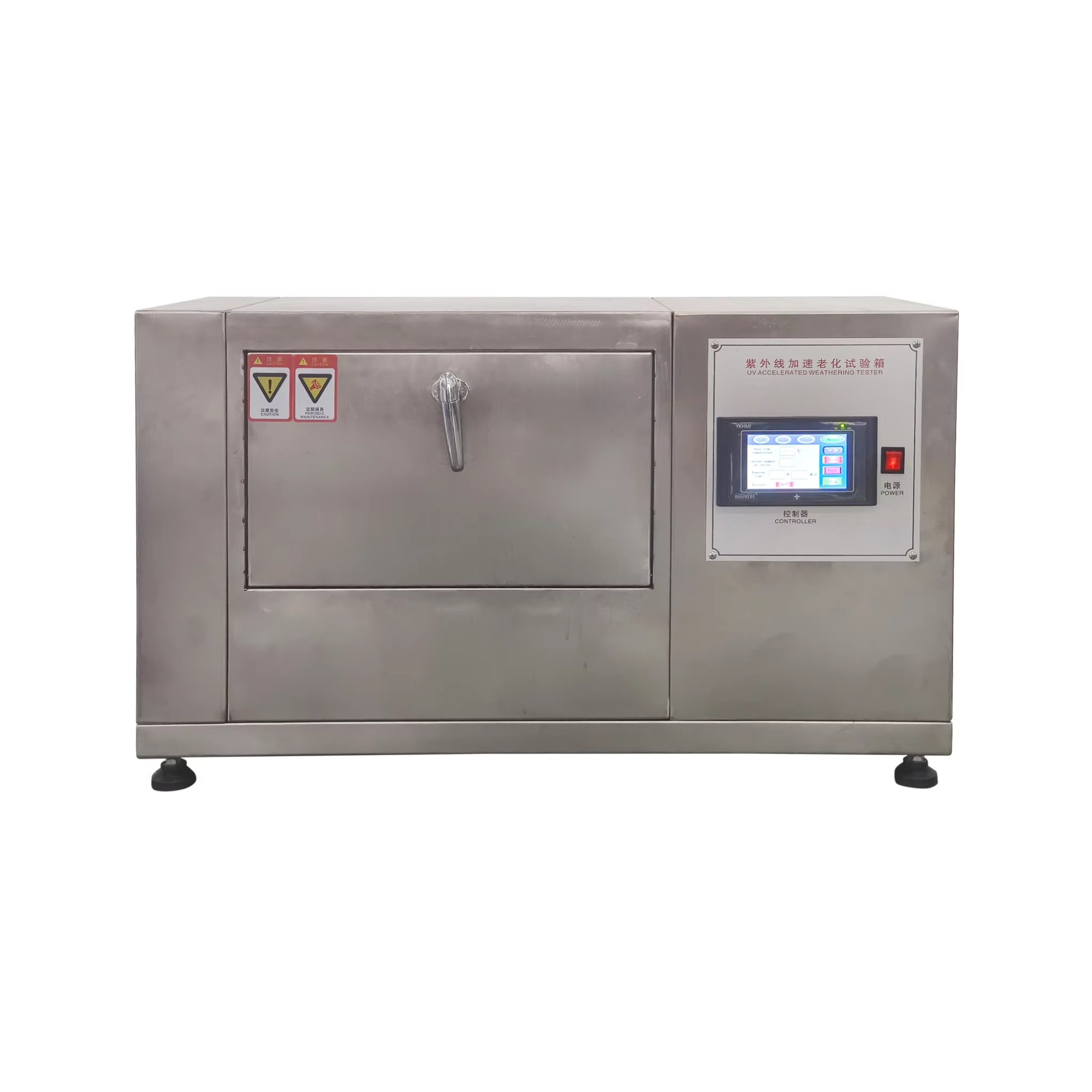

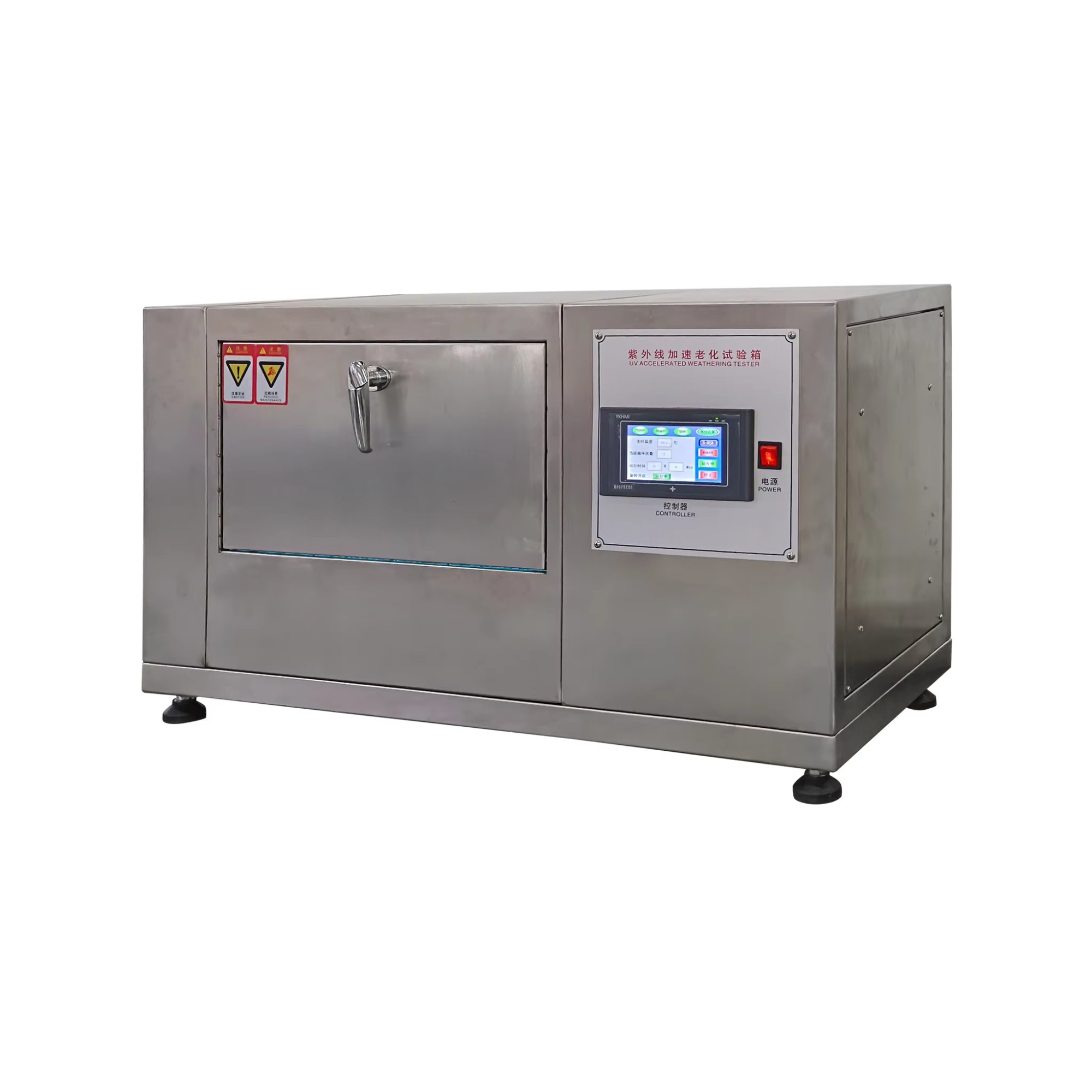

UV Accelerated Aging Test Chamber

Product Introduction

UV accelerated aging test chamber can provide reliable aging test data, enabling accurate prediction of product weathering resistance (aging resistance resistance). This facilitates the screening and optimization of recipes. It is used in many industries such as: paints, inks, resins, plastics, printing and packaging, adhesives, automotive and motorcycle industries, cosmetics, metals, electronics, electroplating, medicine, etc.

Standards

ASTM D4329，D4587，D5208，G154，G53; ISO 4892-3, etc.

Features

1. The UV aging tester is designed according to the usage situation, which is easy to operate, safe and reliable.
2. The installation thickness of the specimen is adjustable, and the installation of the specimen is fast and convenient.
3. The door rotates upwards without interfering with the operation, and the tester only takes up a small space.
4. Its unique condensing system can be satisfied by tap water.
5. The heater is under the container instead of in water, which has a long life and is easy to maintain.
6. The water level controller is outside the box, easy to monitor.
7. The machine has a truck, easy to move.
8. The computer is easy to program, and it will automatically alarm when the operation is incorrect or faulty.
9. It has irradiance calibrator to extend the life of the lamp (more than 1600h).
10. It has instructions in Chinese and English for easy reference.
11. Divided into three types: normal, light radiation control, spraying

12. The inner liner of the chamber is made of imported high-grade stainless steel plate, while the outer liner is made of SUS 304 steel plate.
13. The heating method adopts the inner tank type heating, which rises quickly and the temperature distribution is uniform.

Control system

1.The black aluminum plate is used to connect the temperature sensor, and the black plate thermometer is used to control the heating to ensure a more stable temperature.

2.The radiometer probe is fixed to avoid frequent installation and removal.

3.The radiation dose is used with a special UV irradimeter with high-precision display and measurement.

4.The radiation intensity is not greater than 50W/m2.

5.Lighting and condensation can be controlled independently or alternately cycled.
