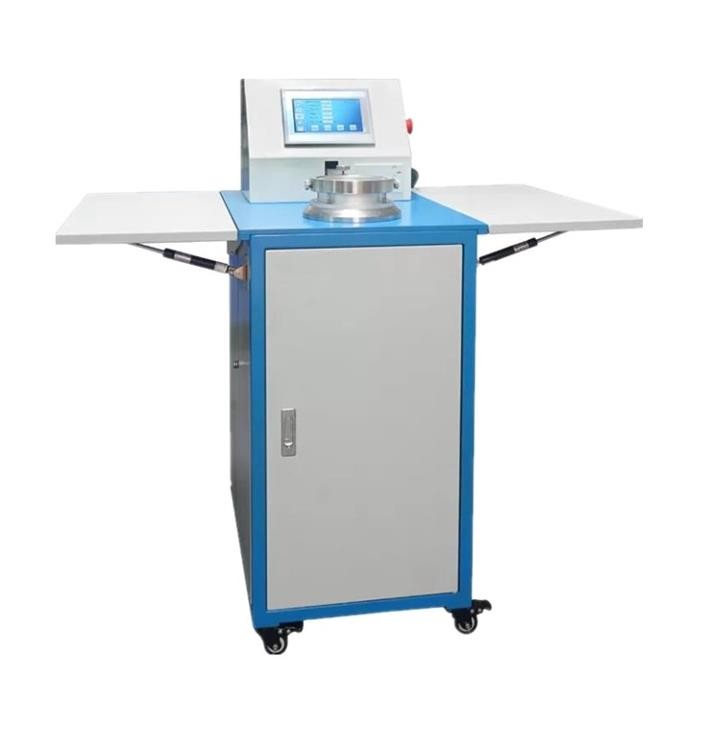

Electronic Textile Testing Machine Automatic Fabric Moisture Air Permeability Test Equipment

Product Item : ZHIYI-709
Category： Textile Testing Equipment
Product description：Electronic-Textile-Testing-Machine-Automatic-Fabric-Moisture-Air-Permeability-Test-Equipment
INQUIRY

Electronic Textile Testing Machine Automatic Fabric Moisture Air Permeability Test Equipment

Application:
Textile Testing Machine Automatic Fabric Textile Air Permeability Tester to determine the resistance of fabrics (woven, knitted and non woven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.

Standard:
ASTM D737 Standard Test Method for Air Permeability of Textile Fabrics
ISO 9237 Textiles - Determination of the Permeability of Fabrics to Air
BS 5636,DIN 53887,AFNOR G07-111,EDANA 140.1,ISO 7231,ISO 9073-15,JIS L1096-A
TAPPI T251, WSP 070.1.R3, EDANA 140.2-99

Technical Parameters:

Measuring range	0.1-12,000 mm/s at 20 cm² test area.
Units of measure	mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s
Measuring accuracy	better than ± 2 % of the displayed value
Test pressure	1-4,000 Pa
Test areas	20, 25, 38.5 and 100 cm²
Sample thickness	12mm
Dimensions	1070 x 670 x 1080 mm
Power supply	110V,60Hz
Weight	75 Kg

Accessories:

1. Main Unit	01 No.
2. Test Heads	02 Nos.
20 cm²for DIN 53887, EN ISO 9237, WSP 70.1
38.5 cm²for ASTM D 737, JIS L 1096-A, TAPPI T 251, WSP 70.1
3. Air Permeability Tester Labcloud	01 No.
4. Calibration Check Plate	02 Nos.(ΦO=7.8 and ΦO=21.6 )
5. O-Ring for Air Seal	01 No.(pack of 5)
6. Nozzle	11 Nos.
7. Power Cord	01 No. Nozzle
8. This User's Manual	01 No.
9. Inspection & Conformance Certificate	01 No.
