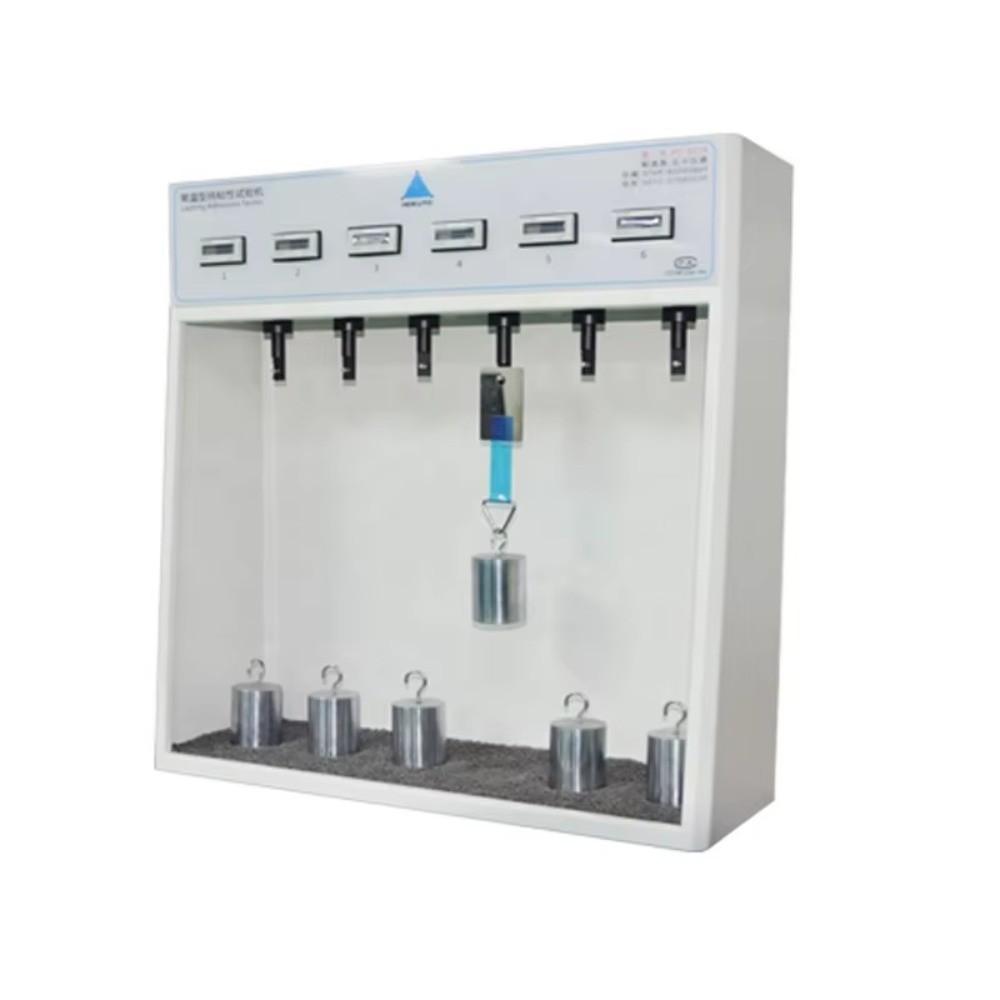

Tape Retention Tester

Product Item : ZYRT-500
Category： Other
Tape Retention Tester
Tape Viscosity Tester
Product description：The adhesion of the tape to a standard steel plate is measured by the failure time of the tape under the conditions of constant load, temperature (23±1) °C and relative humidity (50±5)%. Ambient Visco
INQUIRY

Product Introduction

The adhesion of the tape to a standard steel plate is measured by the failure time of the tape under the conditions of constant load, temperature (23±1) °C and relative humidity (50±5)%. Ambient Viscosity Tester Adhesion to Standard Steel Plate: Tape is applied to standard steel plate at a controlled rolling rate. The steel plate is installed vertically or horizontally and a standard weight is hung at the free end of the tape to determine when the adhesive fails. Note: The vertical method is used for viscosity measurement with a failure time of 4 hours, and the horizontal method is used for viscosity measurement with a failure time greater than 4 hours.

Application

It is suitable for adhesive testing of tapes, protective films, labels, pastes and other products, using a certain amount of sample displacement or the time when the sample is completely separated to characterize the tensile resistance of adhesive samples.

Standards

GB/T 4851-2014 Test method for adhesive tape

ASTM D3654-2019 Standard test method for shear viscosity of pressure-sensitive tape JIS Pressure sensitive tape

Z0237-2000 test method for pressure sensitive tape and pressure sensitive tape

Technical Data

Standard pressure roller	2000g ± 50g
Weight	1000g ± 10g (including loading plate weight)
Test plate	75mm (L) × 50mm (W) × 1.7mm (D)
Timing range	0～9999
Test stations	60 stations / 40 stations / 50 stations / 80 stations / Customizable
Overall dimensions	60 stations: 1460mm (W) × 510mm (D) × 1685mm (H)
Weight	Approx. 220kg
Standard configuration	Main unit + Weight + Test plate + Loading plate + Pressure roller
