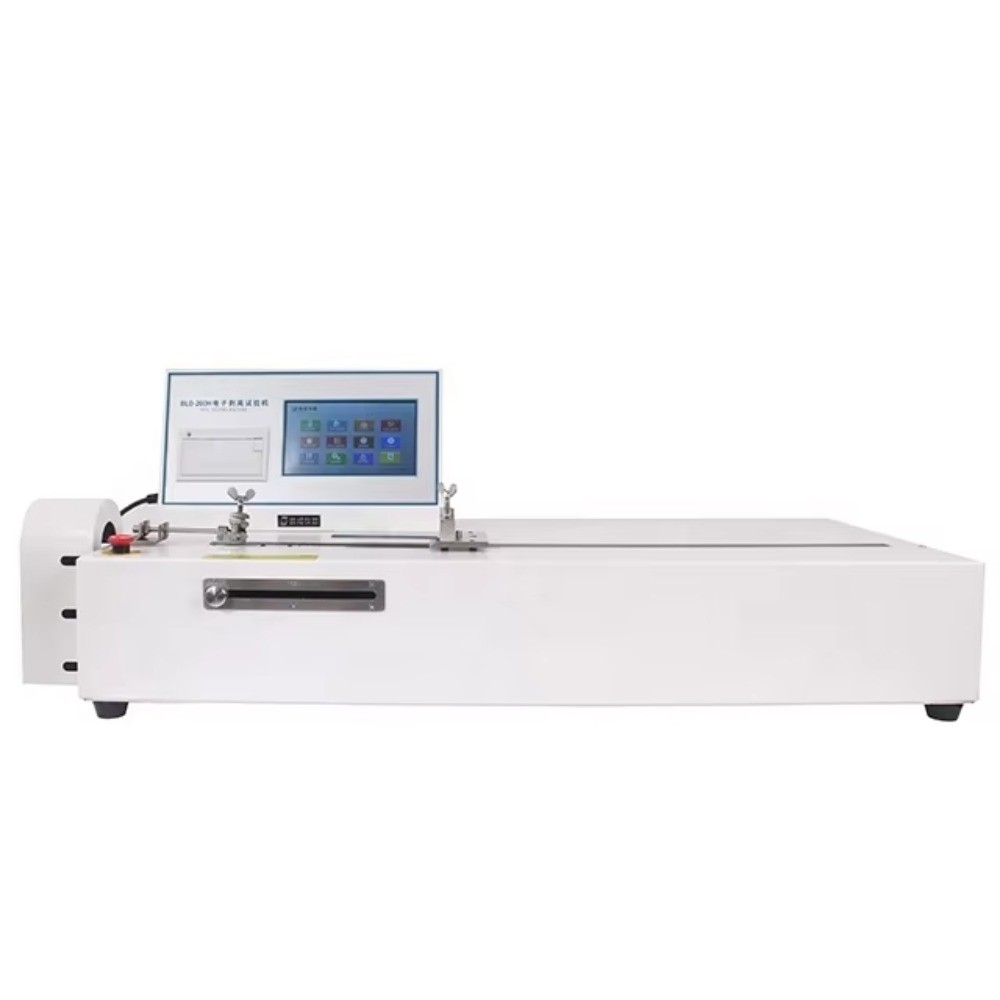

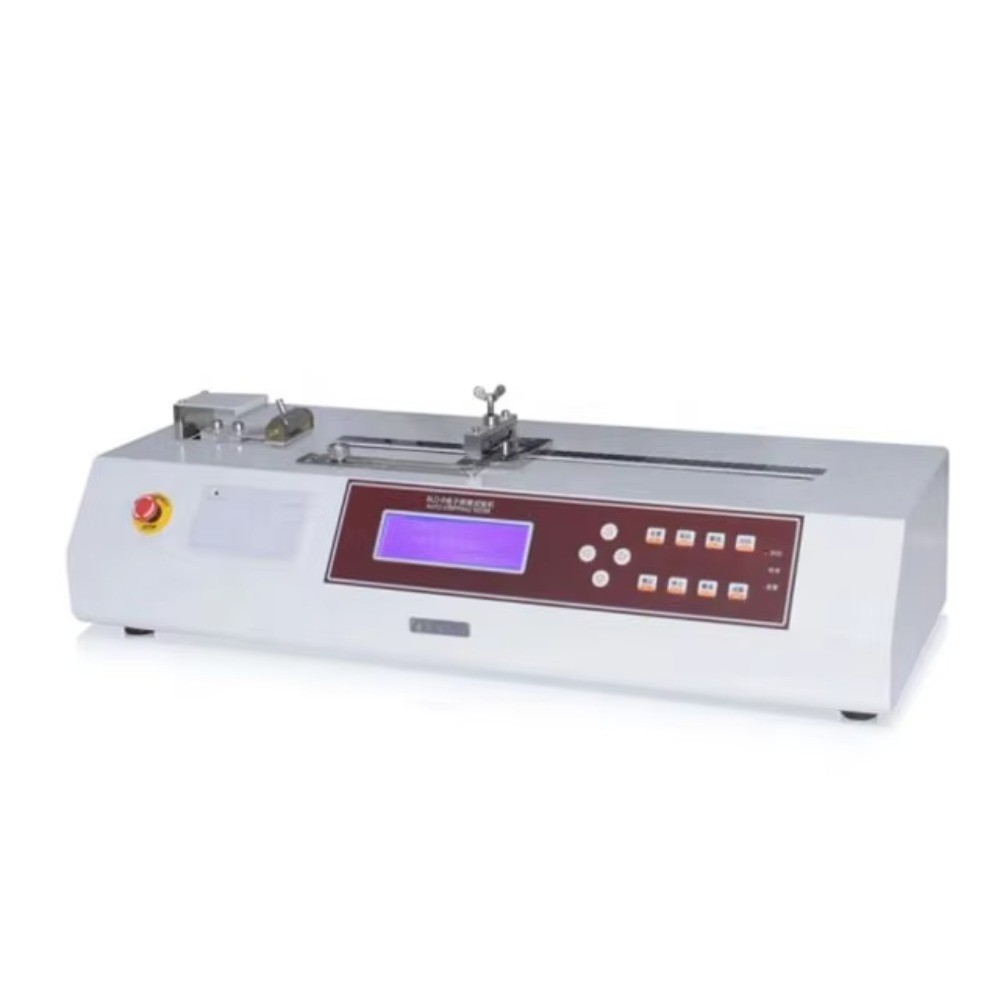

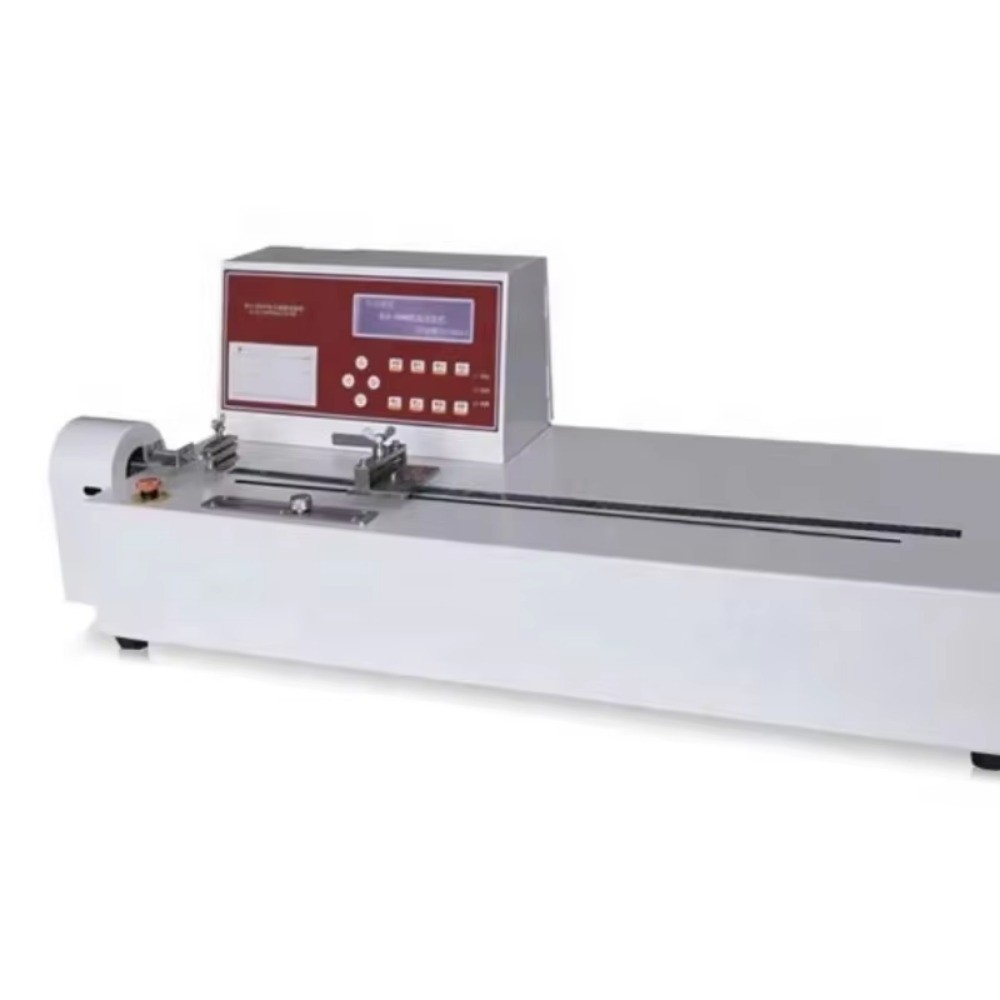

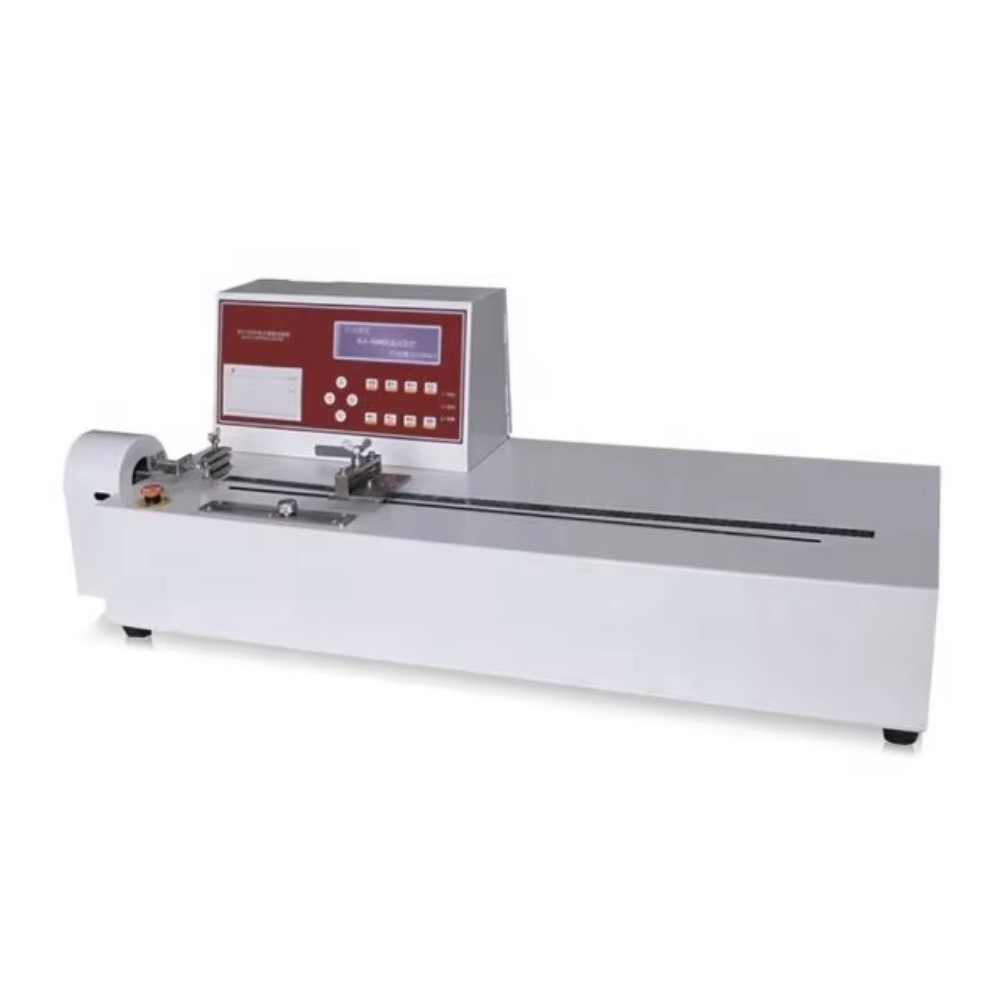

Peel Adhesive Tester

Product Item : PAT-510
Category： Other
Peel Adhesive Tester
Peel Testing
Peel Tester
Peel Force Tester
Product description：It is designed for peeling, shear and breaking performance testing of adhesives, release papers, tapes, self-adhesives, self-adhesive, composite films, artificial leather, woven bags, films, papers,
INQUIRY

Product Introduction

It is designed for peeling, shear and breaking performance testing of adhesives, release papers, tapes, self-adhesives, self-adhesive,
composite films, artificial leather, woven bags, films, papers, electronic carriers and other related product.

Application : 180 degree peeling, 90 degree peeling, releasing paper peeling force

Feature

Large touch screen operation, easy to use, convenient, screen display force value real-time curve, with maximum value, average value, real-time value three test functions G (g), N (Newton), LB (pound), KN/M four can intelligently select the type test parameters according to the test requirements, the test results can be output into groups of statistical analysis intelligent working condition prompts and complete safe operation protection system

Equipped with a miniature printer, it can print out test data electronically adjusted, accurately set various test speeds that meet international requirements, and are compatible with ISO, JIS, ASTM, DIN and other international relevant standards

Standards

The instrument complies with many national and international standards: GB/T 4850, GB/T 7754, GB/T 8808, GB/T 13022, GB/T 7753, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358, YYT 0507, YYT0148, JIS-Z-0237, HGT 2406-2002

Application


Basic application		Extended applications (special accessories or customization required)
Tensile strength and deformation rate	pulling force	Tear resistance	Shear performance	Heat sealing performance
180° peeling	90° peeling	Low speed retraction force	The peeling force of the release paper	Adhesive Strength Test (Soft)
		Adhesive Strength Test (Hard)

Technical Data

capacity	100 N (5N 30N 50N can be selected)
accuracy	Level 1
Test speed	1-500 mm/min
Test sample width	30 mm (standard fixture)
Test sample width	50 mm (Fixture optional)
stroke	400 mm
impetus	AC 220 volts 50 Hz
Exterior dimensions	450 mm (L)× 580 mm (B)× 100 mm (H)
Power	AC 220V 50Hz
weight	40 kg
