Home Products Other Print Ink Friction Tester

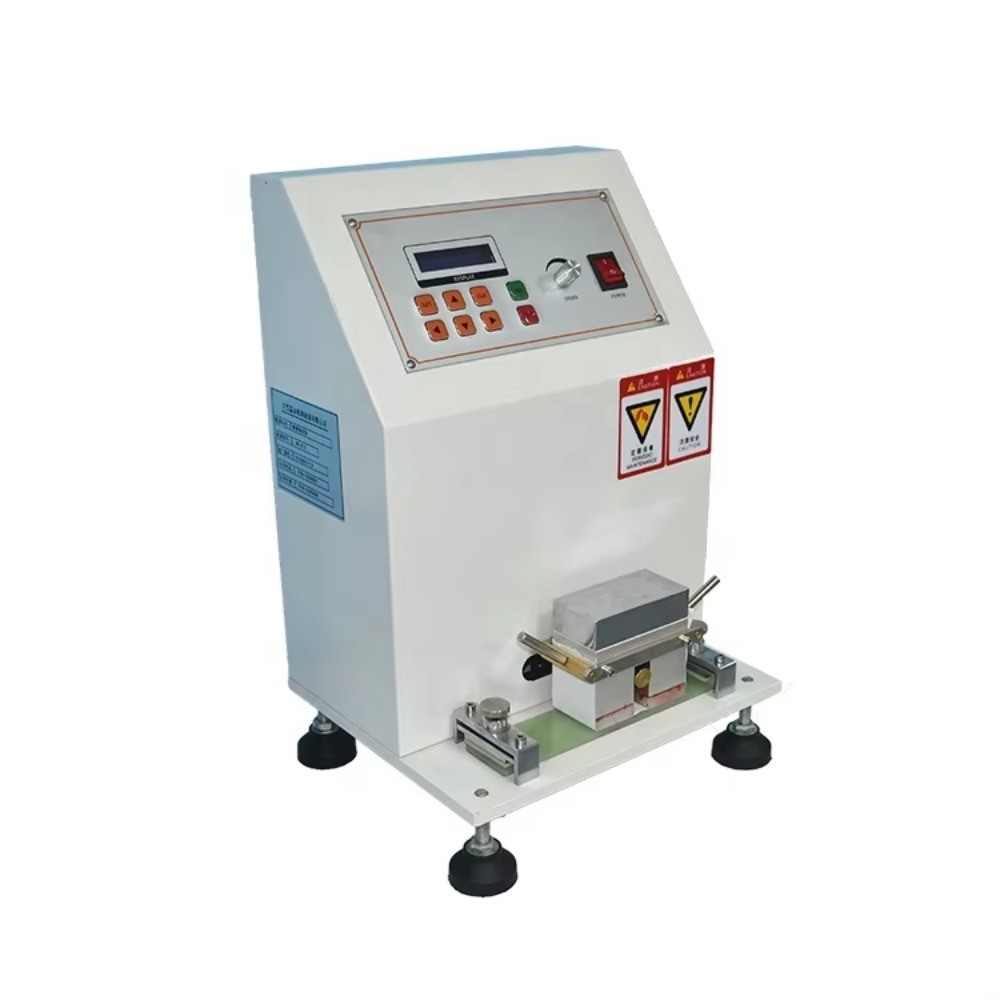

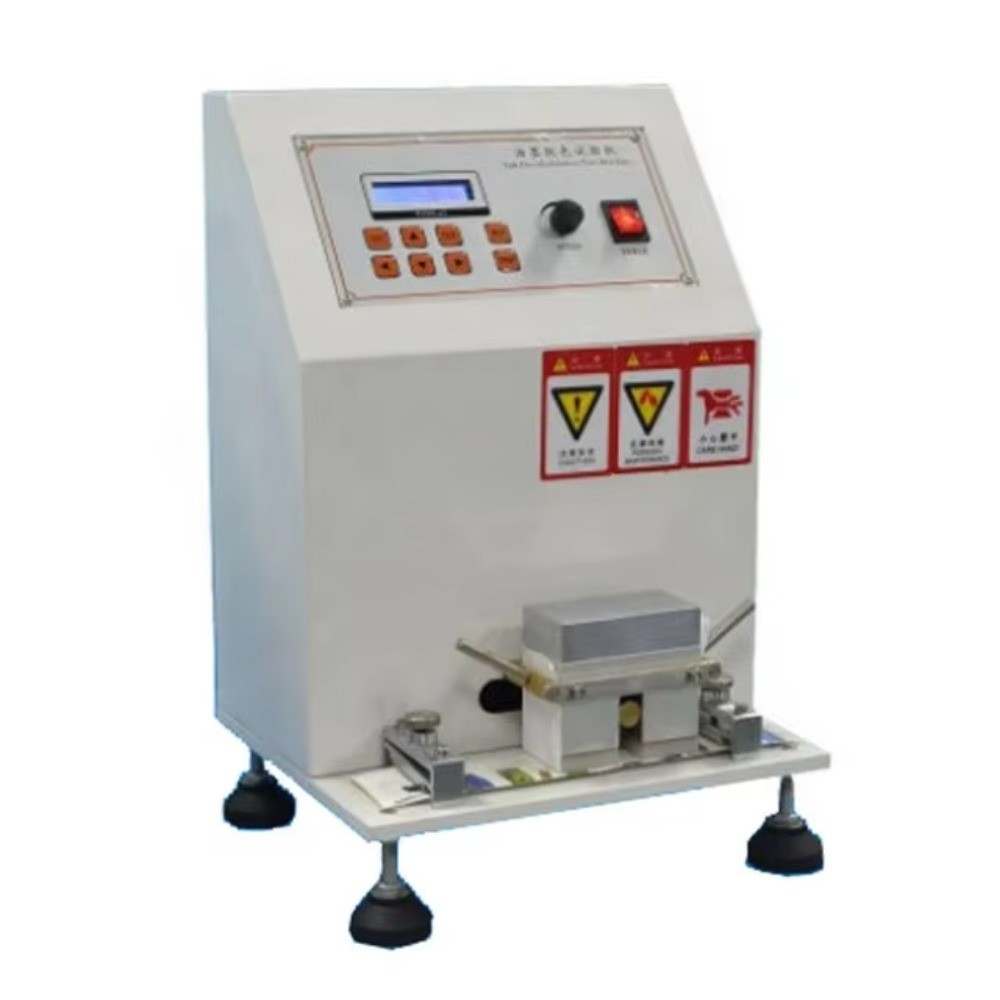

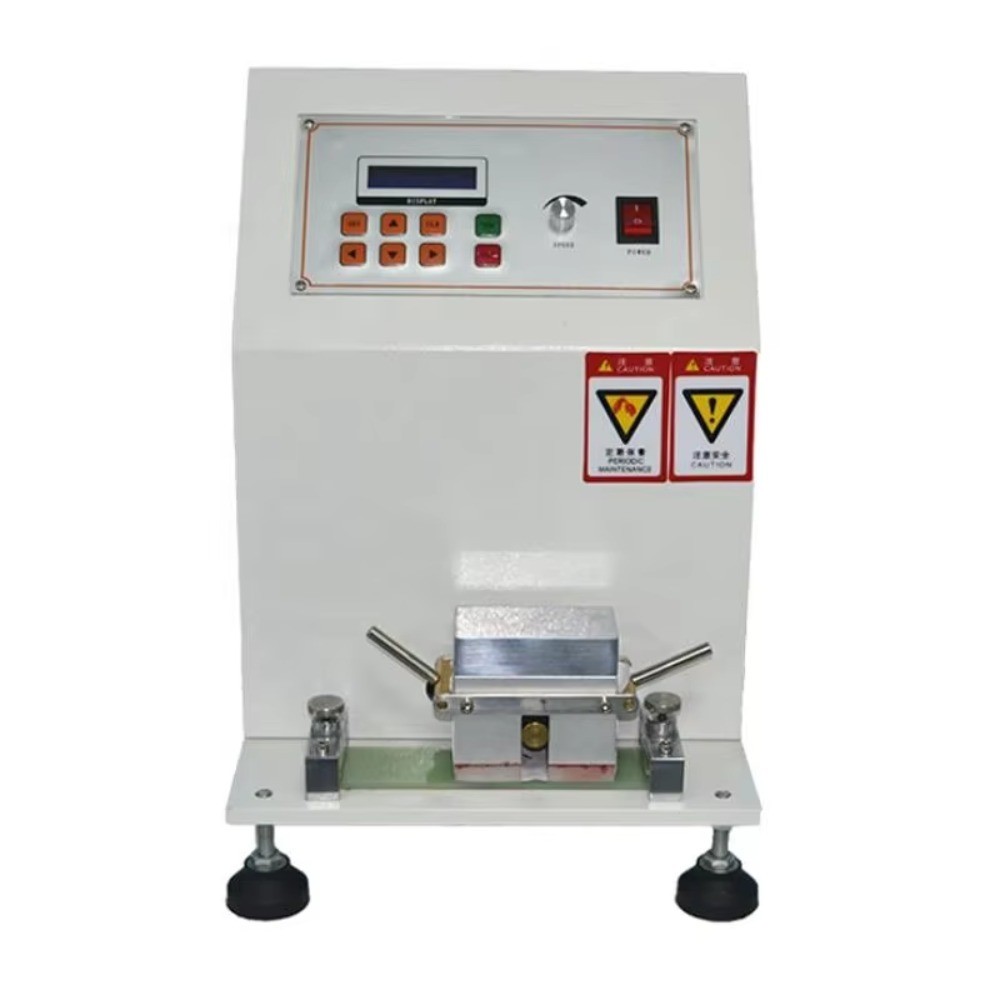

Print Ink Friction Tester

Product Item : ZYFT-600
Category： Other
Print Ink Friction Tester
Ink Friction Tester
printing ink friction instrument
printing friction testing machine
Product description：The ink friction testers is suitable for testing the abrasion resistance and decolorization of inks, prints, and color printing boxes. The machine is tested by rubbing it with white glossy paper (or w
INQUIRY

Product Introduction

The ink friction testers is suitable for testing the abrasion resistance and decolorization of inks, prints, and color printing boxes. The machine is tested by rubbing it with white glossy paper (or white written paper) to determine the degree of abrasion resistance and decolorization.

Standard

GB7706 complies with JIS5701 and ISO9000 JIS-507-1, TAPPI-UM486, GB7706, ASTM d5264 standards.

Technical Data

Mode of operation	LED display
sample area	60x220mm
Friction speed	The speed can be adjusted (21/43/85/106) r/min
Friction loads	2 lbs/4 lbs
Friction stroke	60 mm
Frequency setting	0-999999 automatically stops
Friction area	50x156 mm
Machine power	40 watts
Machine size	263x230x350mm
Machine weight	15 kg
Operating voltage	AC 220V 50/60hz 1A
