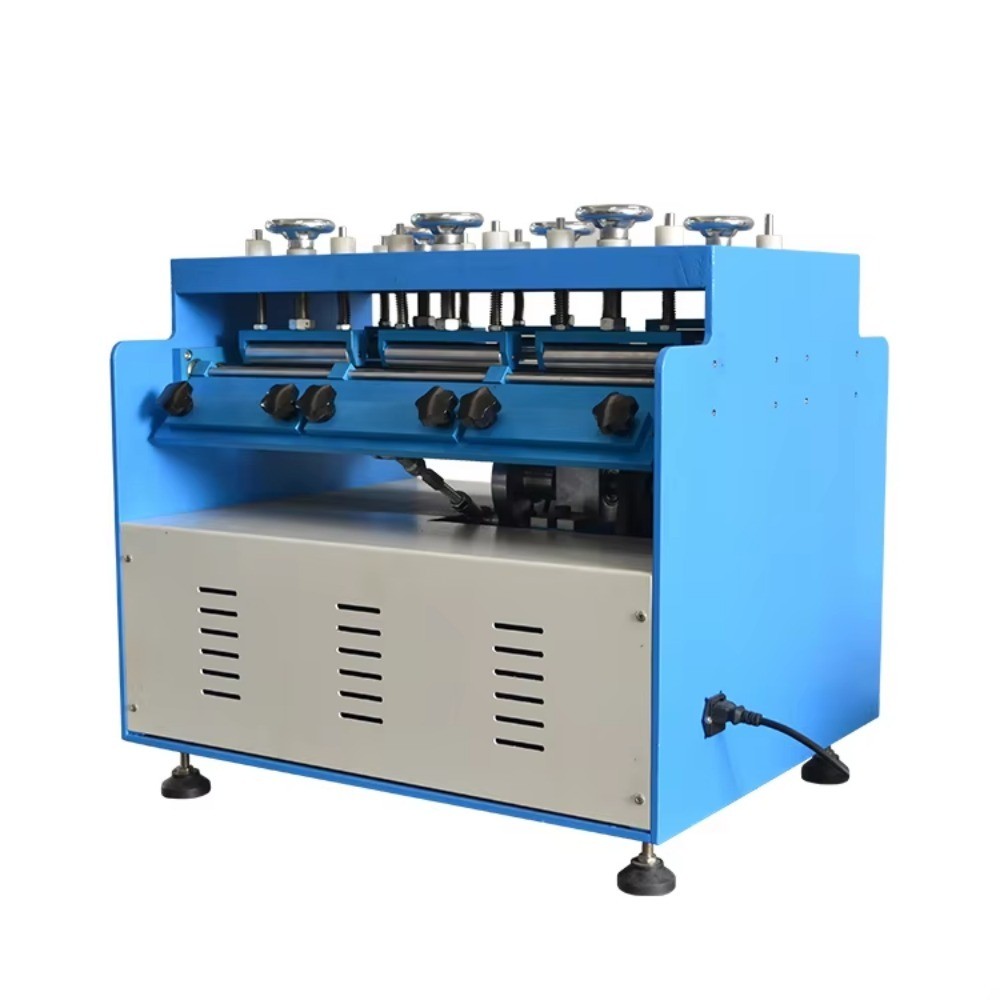

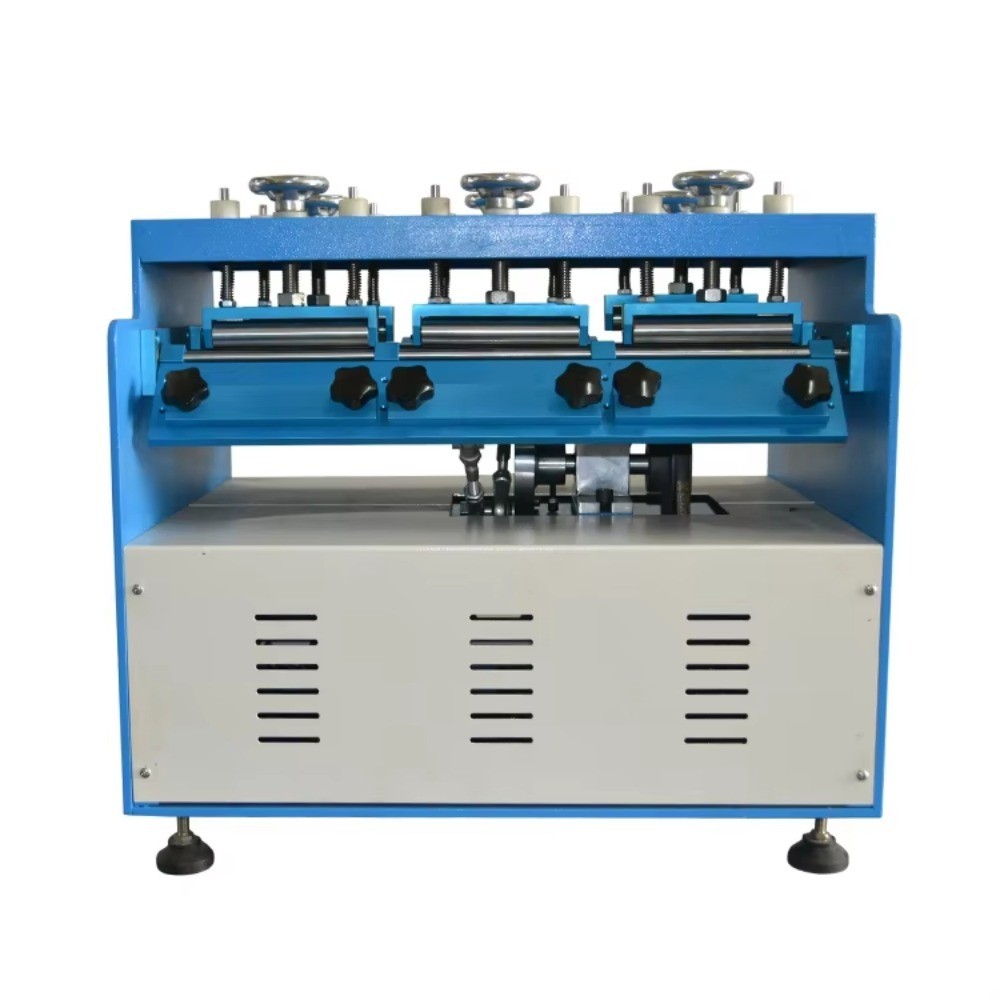

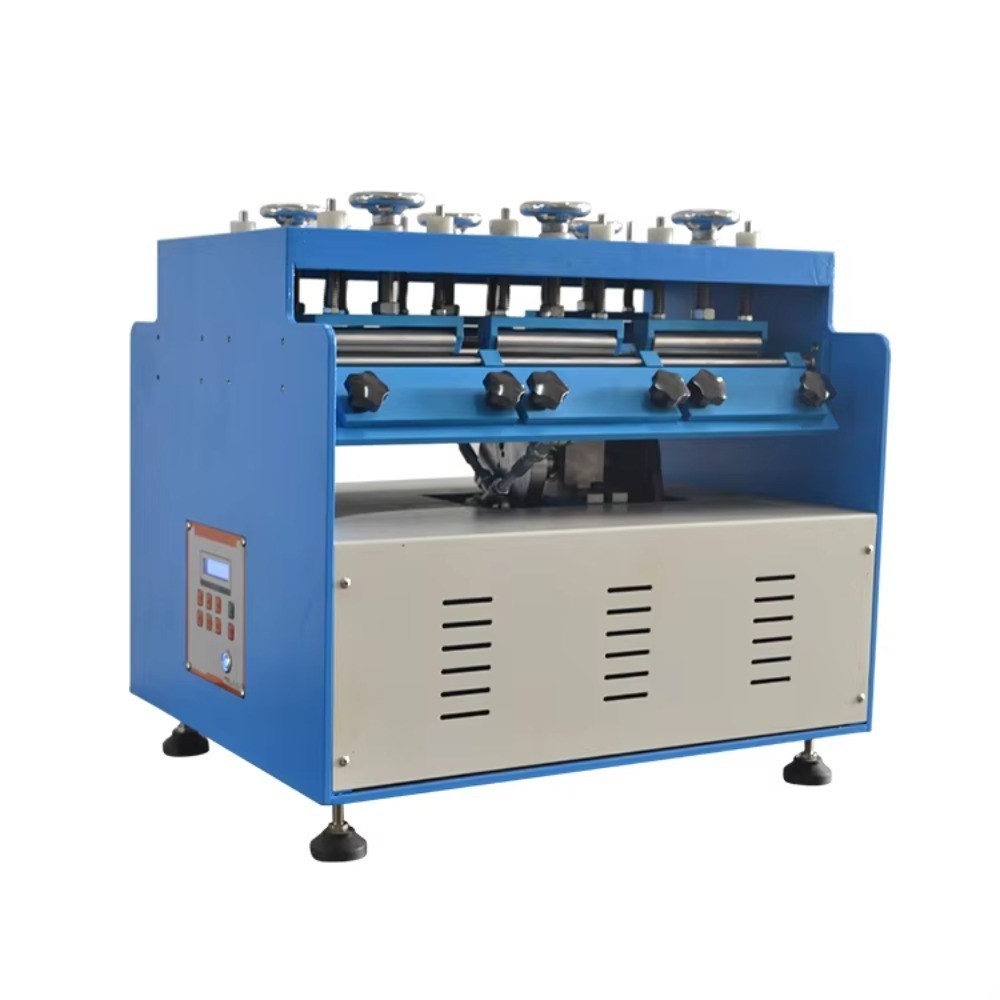

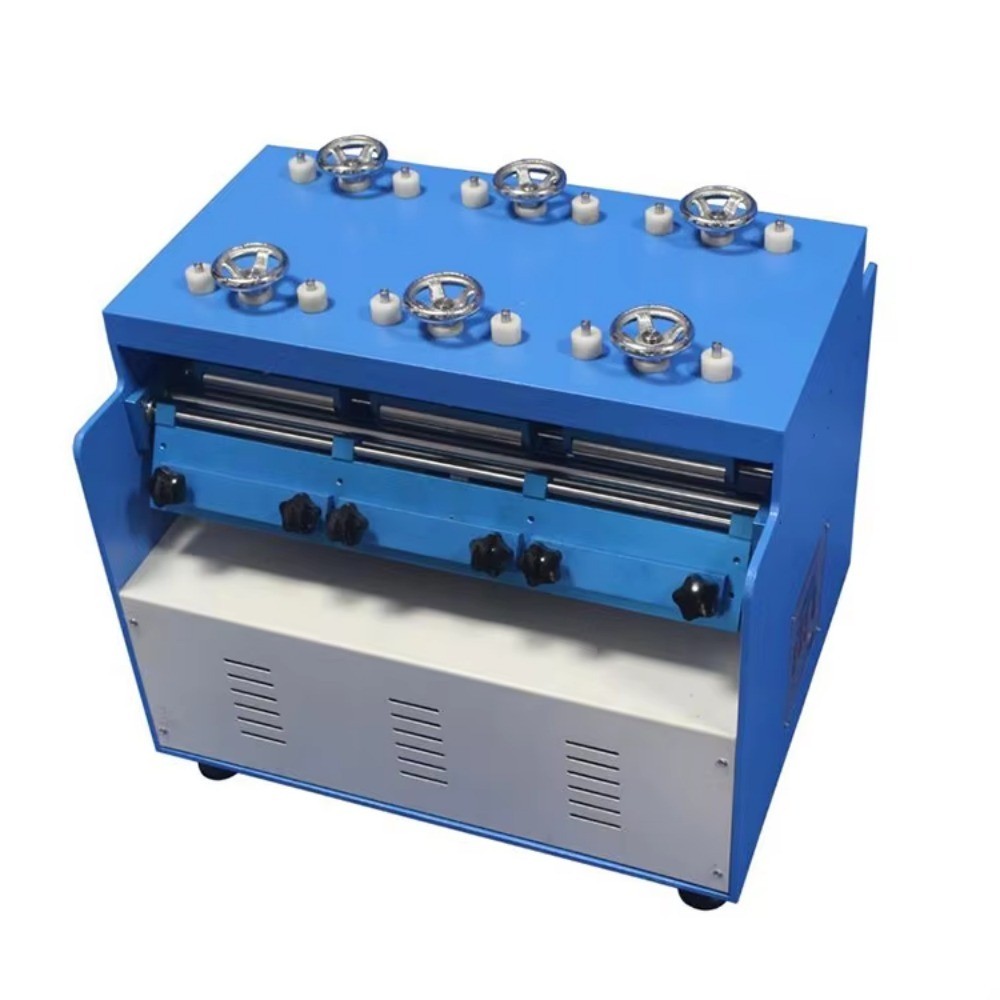

Shoe Ross Flexure Tester

Product Item : RFT-410
Category： Other
Ross Flex Tester
Ross Flexing Tester
Flexing tester
Ross flex test
Product description：This machine is suitable for right-angle bending test of rubber products, shoe soles, PU and other materials. After continuous stretching and bending of the specimen, check the degree of attenuation,
INQUIRY

Product Introduction

This machine is suitable for right-angle bending test of rubber products, shoe soles, PU and other materials. After continuous stretching and bending of the specimen, check the degree of attenuation, damage and rupture of the specimen. Place the sole in the Ross tester and make an incision above the center of the spindle. After the set right angle bend test time, check the elongation of the cut.

Standard

IASTM - D1052，ISO - 5423，SATRA TM60

Technical Data

Model	RFT-410
Test station	6 groups
F Lexing Corner	90 ± 1
S pee 1	ISO ,SATRA 60 ± 5CPM
S pee 2	ASTM 100 ± 5CPM
Counter	LCD 0-999 999
size	704245 cm
impetus	220V 50Hz
