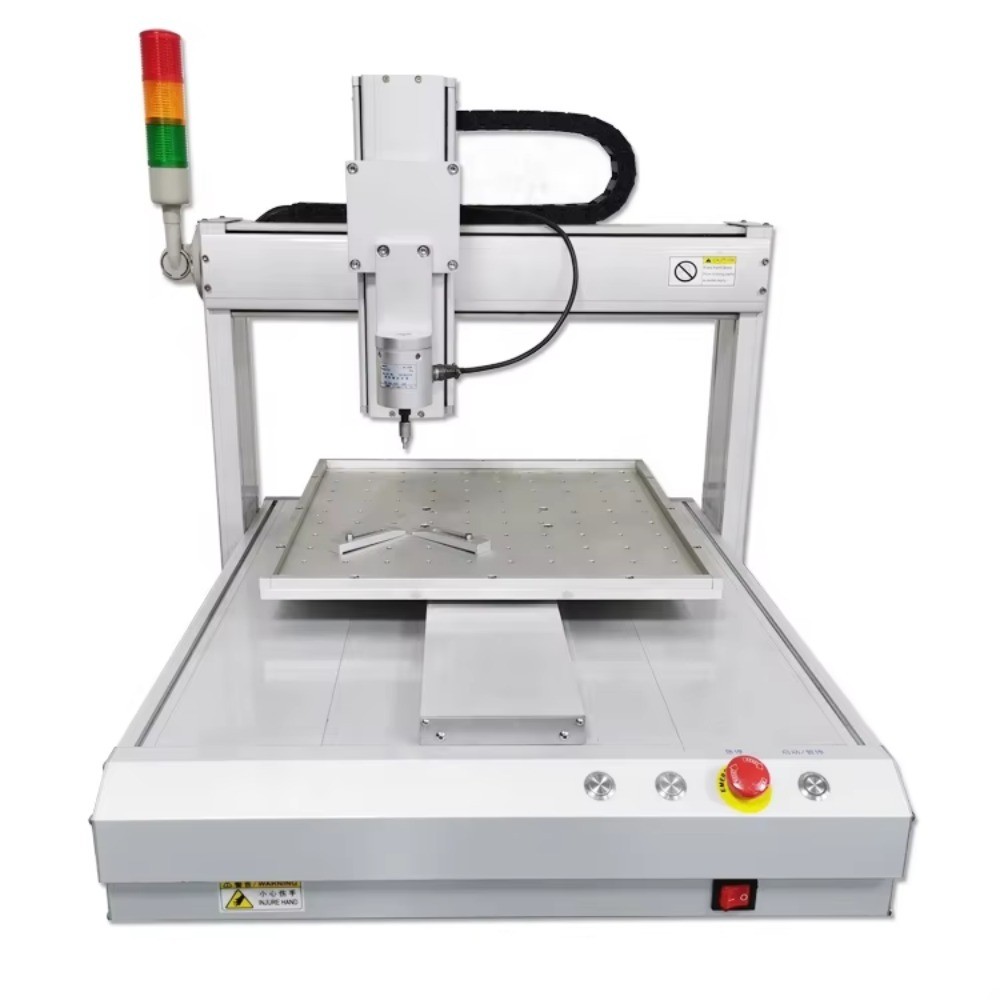

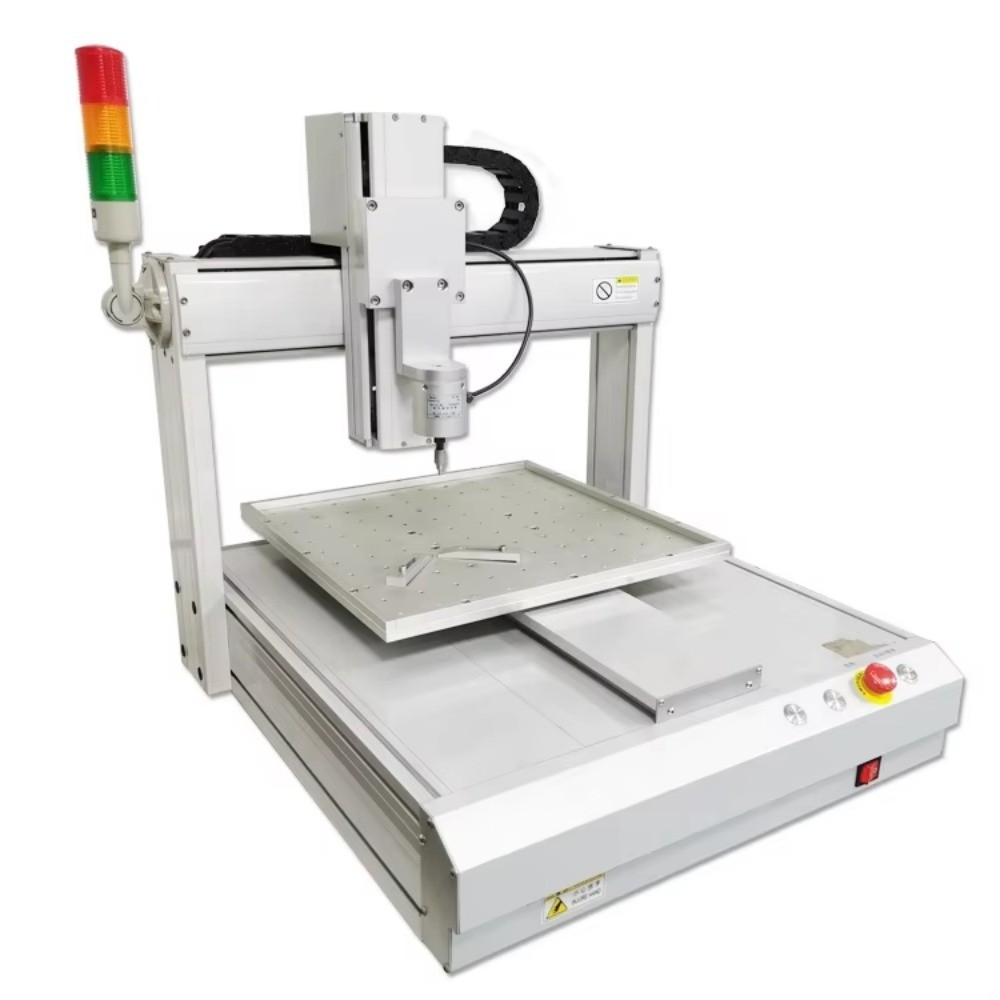

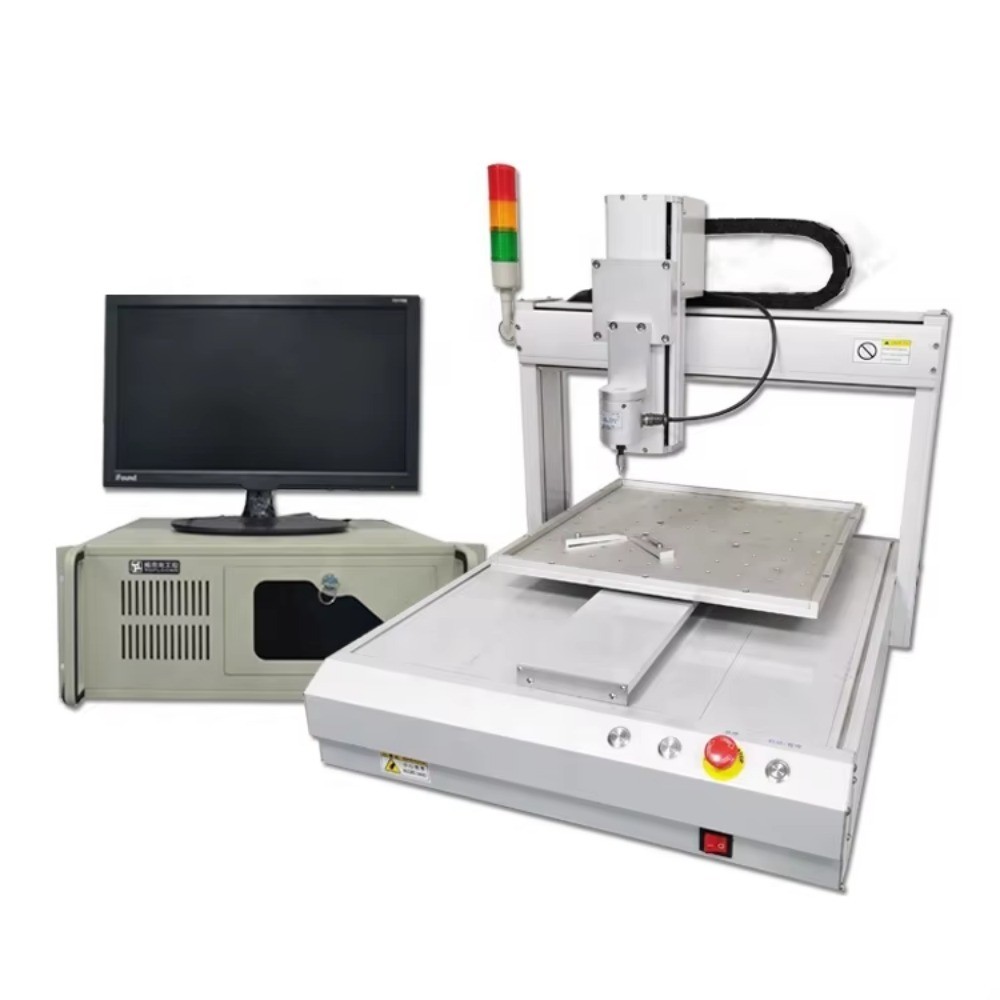

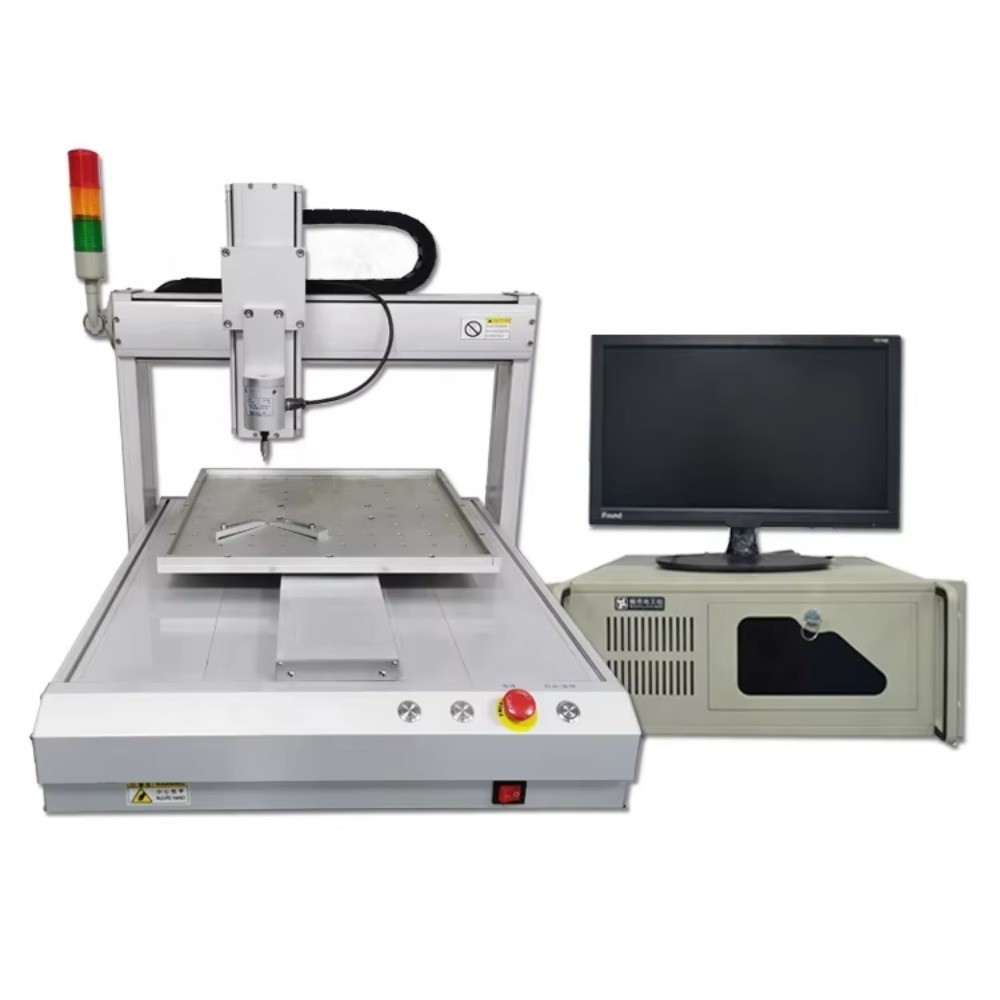

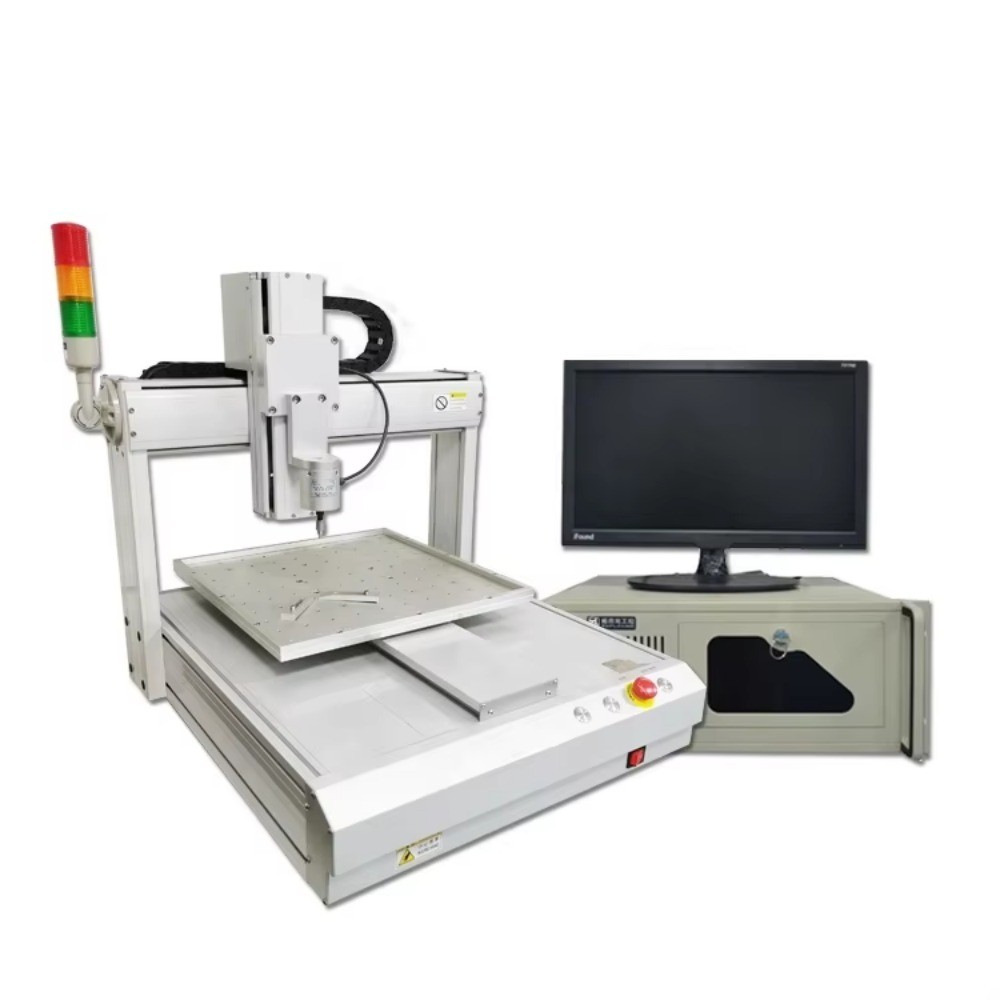

Three-axis Load Stroke Curve Tester

Product Introduction

The tester is suitable for all kinds of stress tests. Set the coordinates, then automatically do the test, record and display the test values. All information/data (test conditions, load-displacement curves, life curves and inspection reports, etc.) can be stored on the keyboard, screen, monitor, pad multi-point pressure automatic measurement and rebound.

1. Coordinate input can be entered manually. It can also be entered in the input matrix. (Meet the needs of different test sequences.) )

2, It can automatically set the z-axis coordinates to a specific point of the bulge to avoid a specific point of the product

Above normal height.

3. When the version test is completed, it can automatically judge the test results, with red and green color distinction

Professional test results.

4. Automatic statistics, used to test the cycle of a version

5. Each group automatically calculates the defect rate and the total number of tests.

6. The test data is comparable with international brand testing machines.

7, Stress test can be done on the screen, display multi-point stress test and PDA stress test.

Application

Automatic multi-point strength testing for general products.

Button (keyboard) curve test (multi-point displacement auto).

LCD withstand voltage test (multi-point automatic displacement).

Stress life testing (multi-point displacement automatic).

Feature

1. You can enter the x-y coordinates, and the tester will test automatically.

2. The maximum test stroke and load can be input, and the computer system automatically controls and tests.

3. The load can be set, and when the value reaches the set value, the teater will pause or return.

4. The test stroke can be set, and the tester will pause or return when the set value is reached.

5. Graphics can be printed and stored. (Load-Stroke Curve, Life Curve, Test Report)

6. The test data is stored on the hard disk. (Each data can be stored.) Unlimited)

7. The test conditions are set by the computer. Including load, stroke, speed, frequency, air compression, pause time, etc.

8. The test report can be saved to Excel for direct editing or output.

Technical Data
