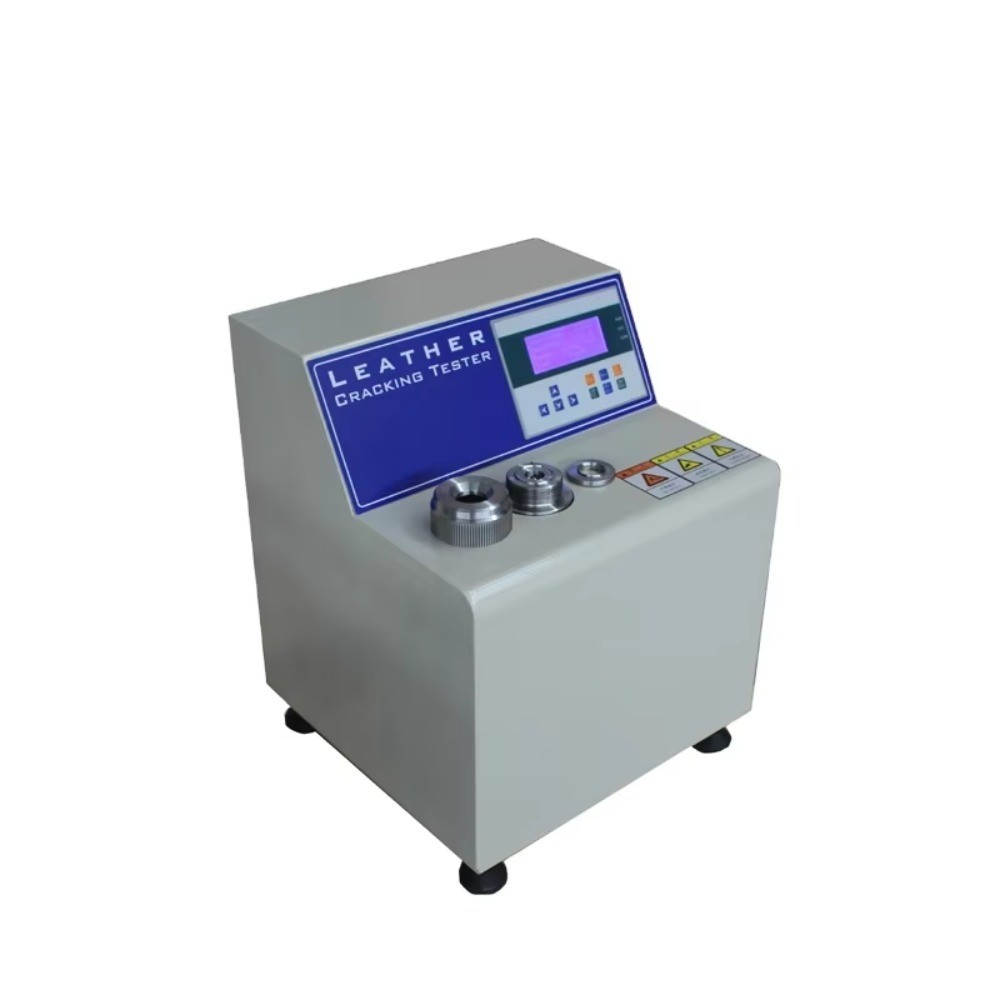

Leather Crack Tester

Product Item : ZHIYI-101
Category： Other
Leather Crack Tester
Product description：Press the steel ball against the center of the flesh side of the leather disc and clip it securely around it. Recorded pressure and expansion at grain cracks and bursts.
INQUIRY

Product Introduction

Press the steel ball against the center of the flesh side of the leather disc and clip it securely around it. Recorded pressure and expansion at grain cracks and bursts.

Standards

DIN53325，ISO3379: 2015

Technical Data

Steel ball	Φ6.25 mm
Measure area	Φ25mm
Test speed	(12 ± 2) mm/min
Sample	Φ44.5mm
Volume	1000N
Unit	kg, lbs, N
Control Mode	Microcomputer controlled, LCD display
Dimensions (WxDxH)	46 x 39 x 50 cm
Weight (kg)	50 kg
Power Supply	220V, 50Hz/60Hz, single phase
Standard Configuration	Machine, user manual, calibration certificate, warranty certificate
