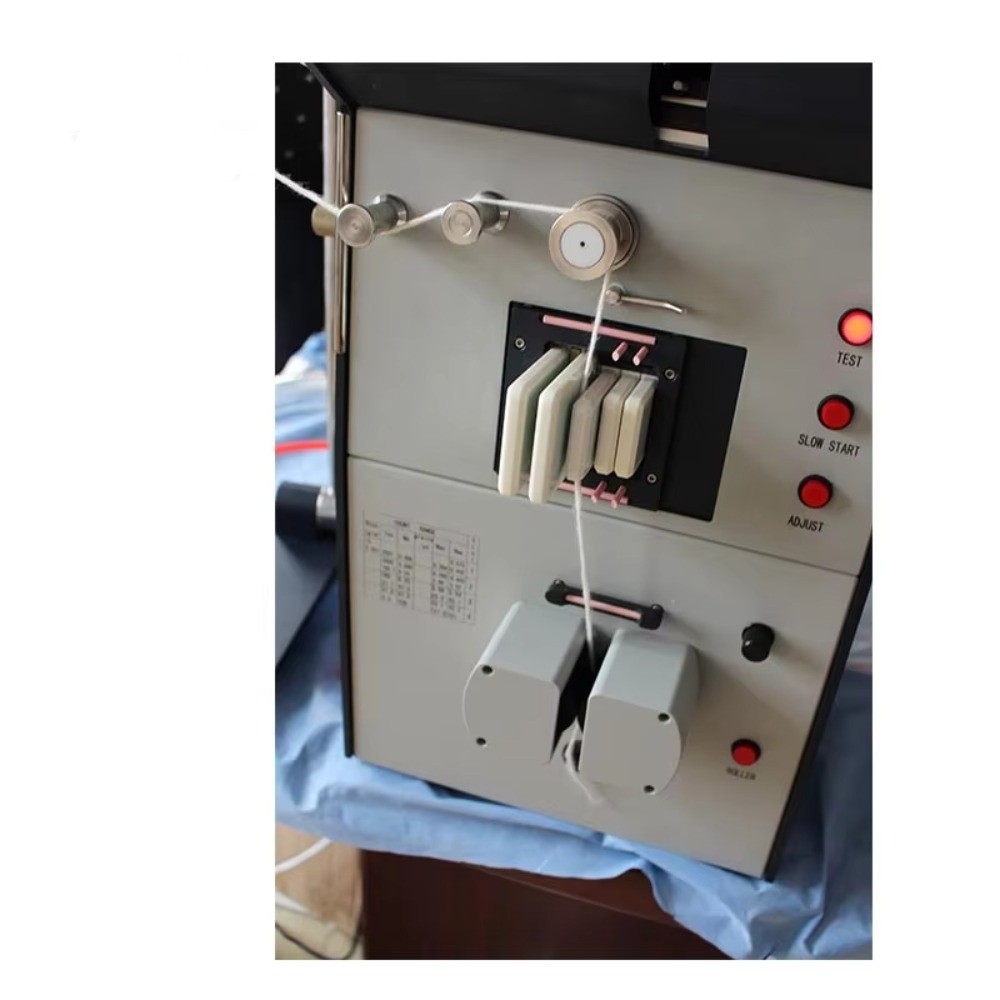

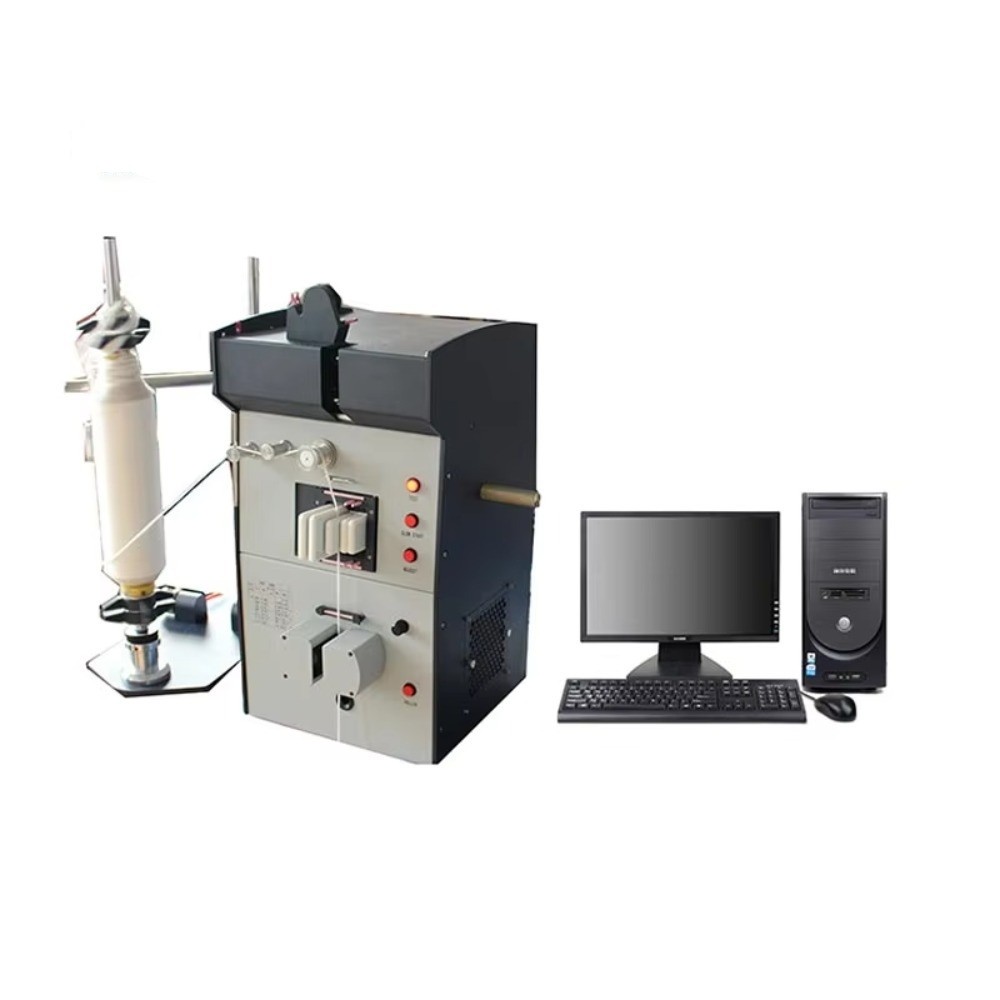

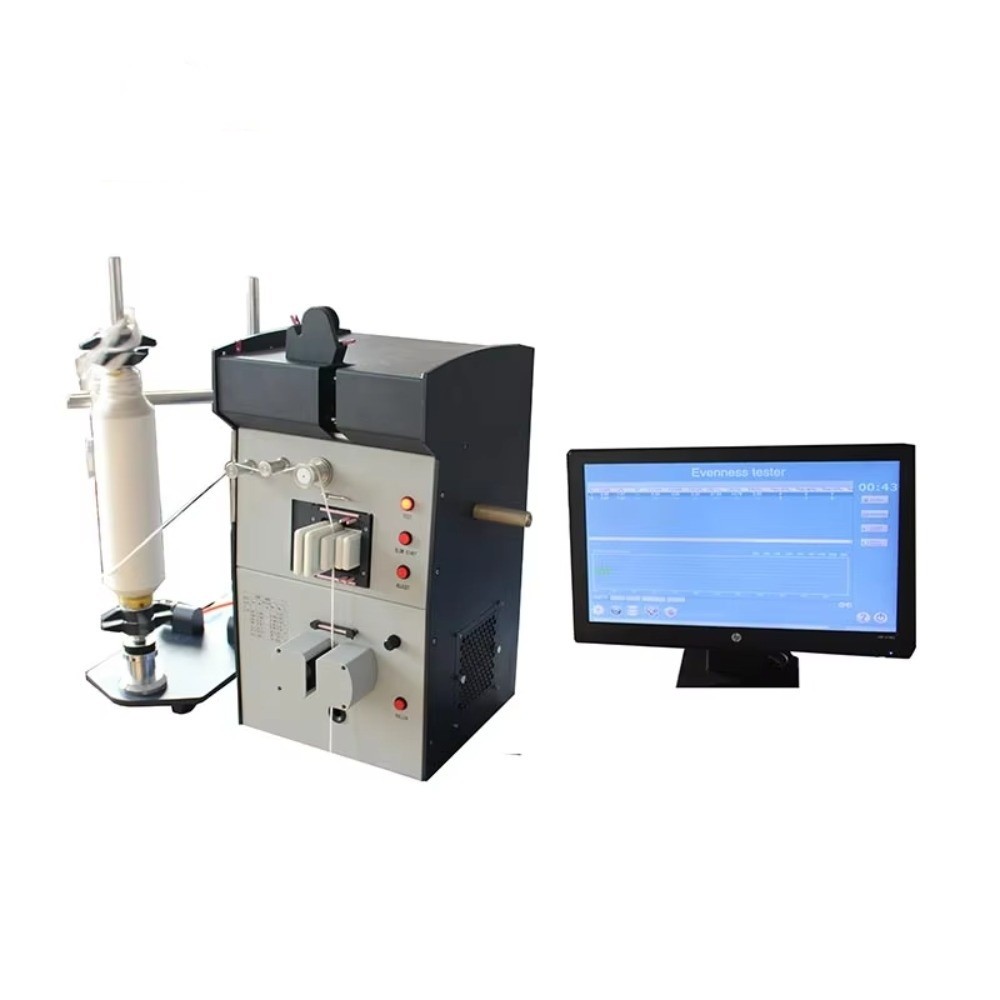

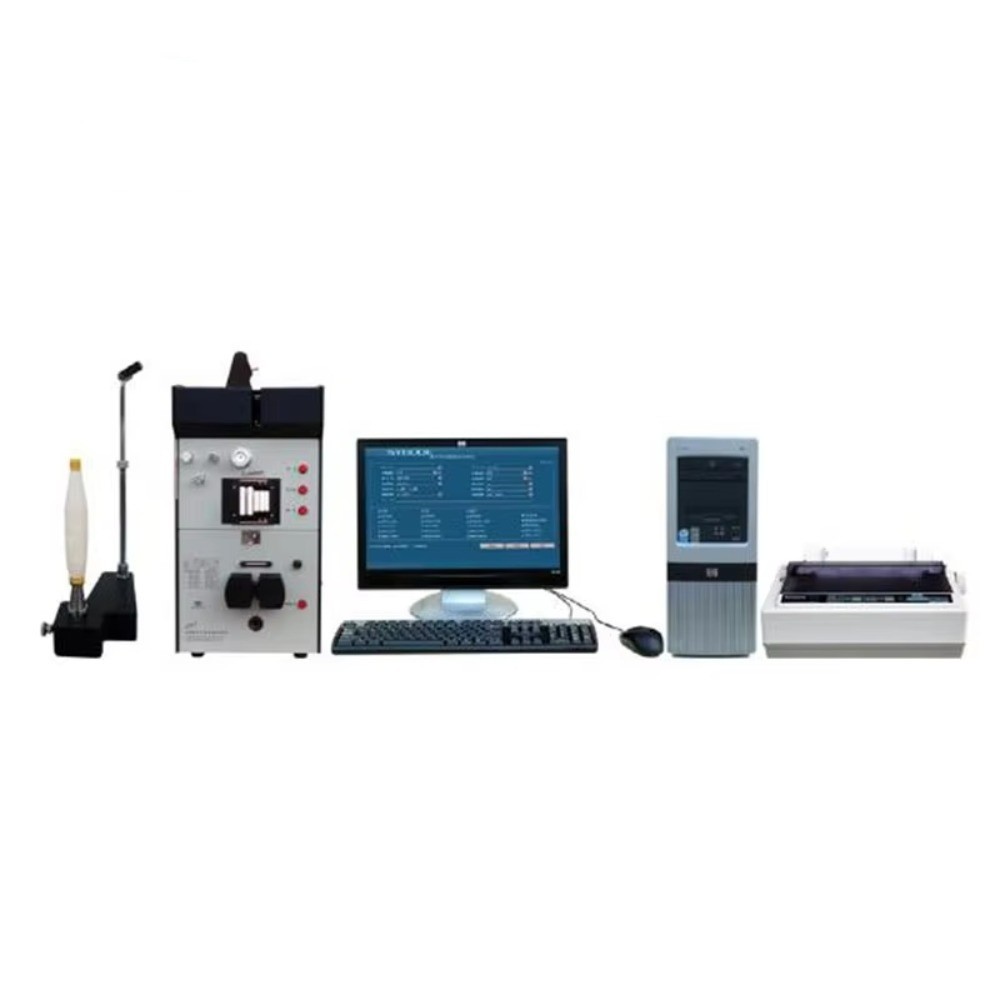

Yarn Uniformity Tester

Product Item : ZHIYI-66
Category： Textile Testing Equipment
Yarn Uniformity Tester
Product description：The Yarn Uniformity Tester is a versatile and high-performance textile laboratory instrument. For testing yarn inhomogeneity and hairy varieties, suitable for cotton, wool, silk, linen, chemical stapl
INQUIRY

Product Introduction

The Yarn Uniformity Tester is a versatile and high-performance textile laboratory instrument. For testing yarn inhomogeneity and hairy varieties, suitable for cotton, wool, silk, linen, chemical staple fiber spinning and blended yarns. It is important to improve and guarantee the quality of the yarn.

Standards

ASTM D1425/D1425M-09

Features

1. The measurement speed can reach up to TP 800/min.

2. Easy to operate: Based on Windows operating system, it is very easy to set up and operate, and the ordinary testing process can be completed with just one click.

3. High degree of automation, add zero push yarn rod, true automatic zero function, add yarn breaking automatic alarm function.

4. It can test CV % value, U % value, H value (hairiness function), SH value (hair function), DR value and 12-level fault in real time

5, It has a variety of graphical indicators, such as variation length curve, non-uniformity curve, spectrogram, linear density-frequency distribution, etc., which is convenient for evaluating yarn quality.

6. Data protection and recovery technology can effectively protect various data

The reports are stored in the computer and can quickly resolve any failures caused by software or hardware.

7. Test results are stored in a database, so users can classify, analyze and retrieve them quickly

8. Drive system: Imported servo system is adopted, which improves reliability.

Technical Data

1.	Test Range:	4tex ~80ktex
2.	Yarn test speed	8 m/min, 25 m/min, 50 m/min, 100 m/min
2.	Yarn test speed	200 m/min, 400 m/min, 800 m/min
3	Test time	Set freely between 10s-20 minutes
5.	Coefficient of variation	(CV %) or heterogeneity (U %) and CV (1) v-l curves
		CV % or U % value test range: 0.20% to 99.99%
		V-l curve cutting length 1cm ~ 1000m
6.	Deviation rate (DR %) and DR curve	Reference length and threshold 20 cm, + 35%; 20 cm, -30%; 1m，+ 5%; 1m，-5%
7.	Fault value	At the same time, it outputs a fault value of twelve levels of sensitivity
		Thin Place -30%, -40%, -50%, -60%
		Thick Places +35%, +50%, +70%, +100%
		neps + 140%，+ 200%，+ 280%，+ 400%
8.	Spectrogram	The spectrogram can measure the wavelength range of 1 cm ~ 2950m spectral channel 170
