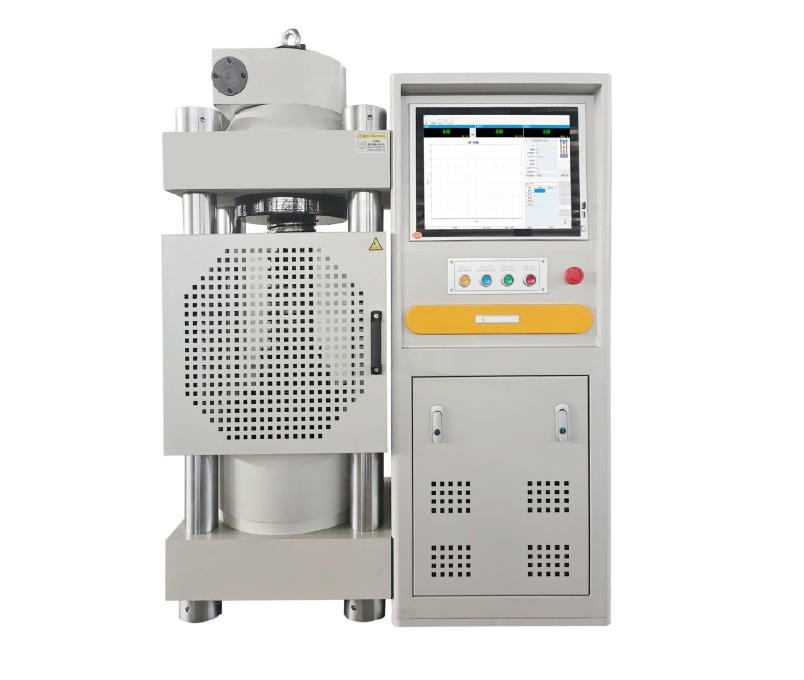

Auto Concrete Hydraulic Compression Testing Machine

Product Item : ZHIYI-3000A
Category： Tensile Testing Machine
Compression Testing Equipment Bending Strength Testing Machine Pressure Testing Machine
concrete Cube Block Hydraulic 300kn 30t Cement Compression Testing Equipment Hydraulic Test Bench Concrete Compression Testing Machine 300 Ton Compression Testing Machine Concrete Strength Tester Labo
Product description：Electro-hydraulic Servo Pressure Testing Machine/computer-controlled Concrete Compressive Strength Testing Machine concrete Cube Compression Pressure Test Machine/cement Compressive Strength Compress
INQUIRY

Product Introduction
Auto concrete hydraulic compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, it can also be used for testing the compressive performance of other materials.
Product Feature
1.Spatial Adjustment Method
Electric lift
2.Hydraulic System
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
3. Control System
The control system includes digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.

The control system has the following functions:
1). Closed-loop control with force;
2). Can achieved constant loading rate or constant stress loading rate;
3). Adopt computer for electronic measurement, automatic test;
4). Computer automatically calculates the results and print reports.
5). Test reports can be to self-design and exported to Excel.
4. Safety Protection

When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.
