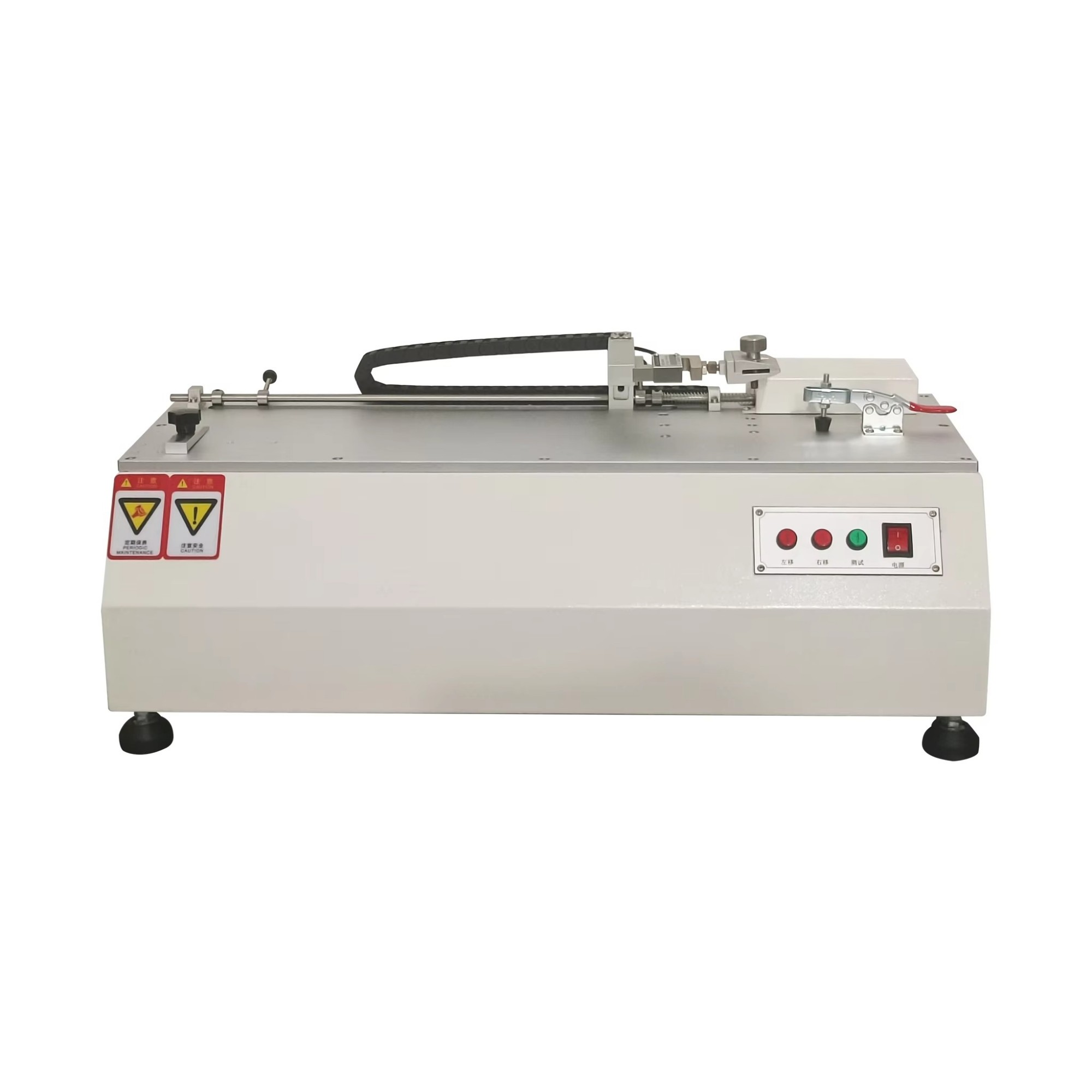

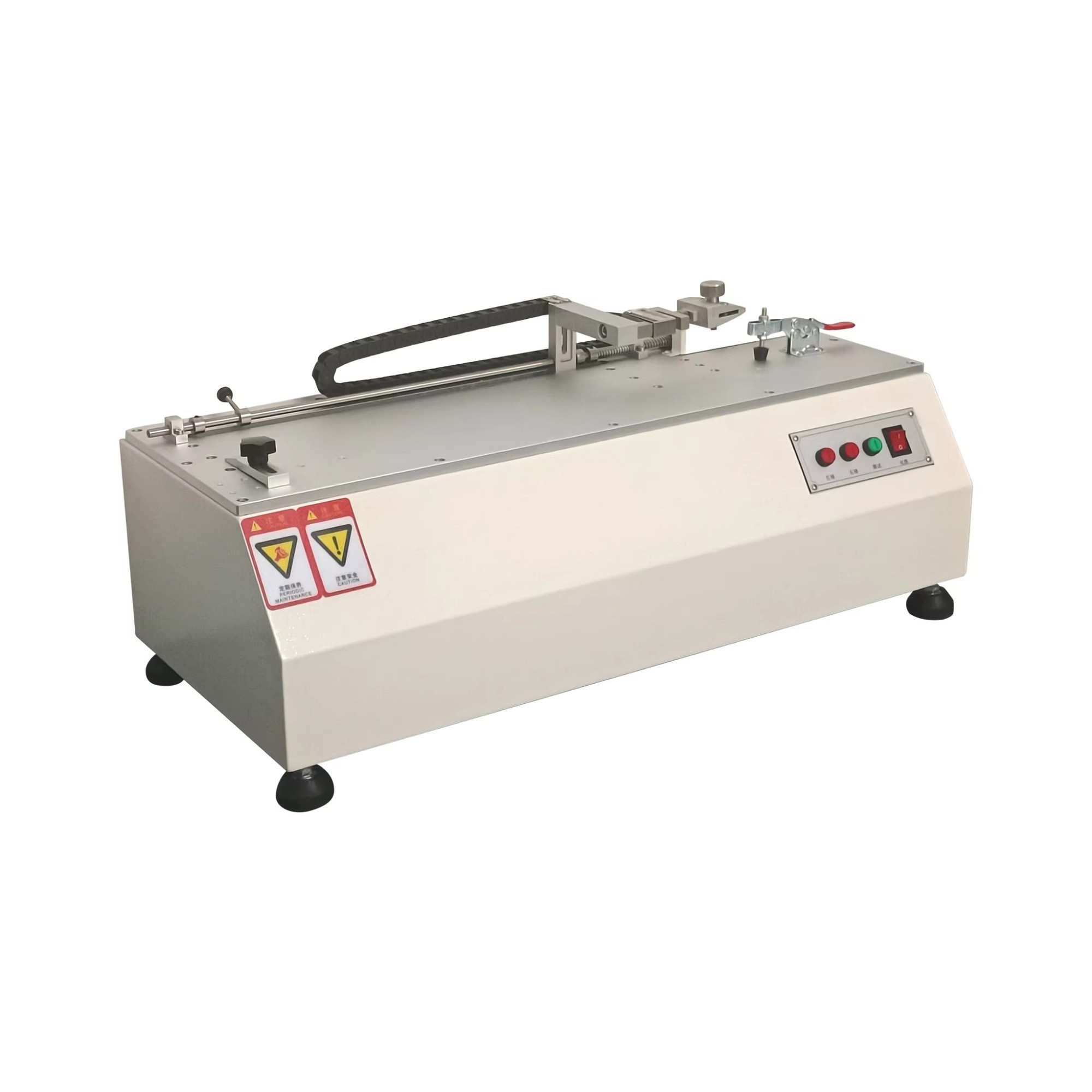

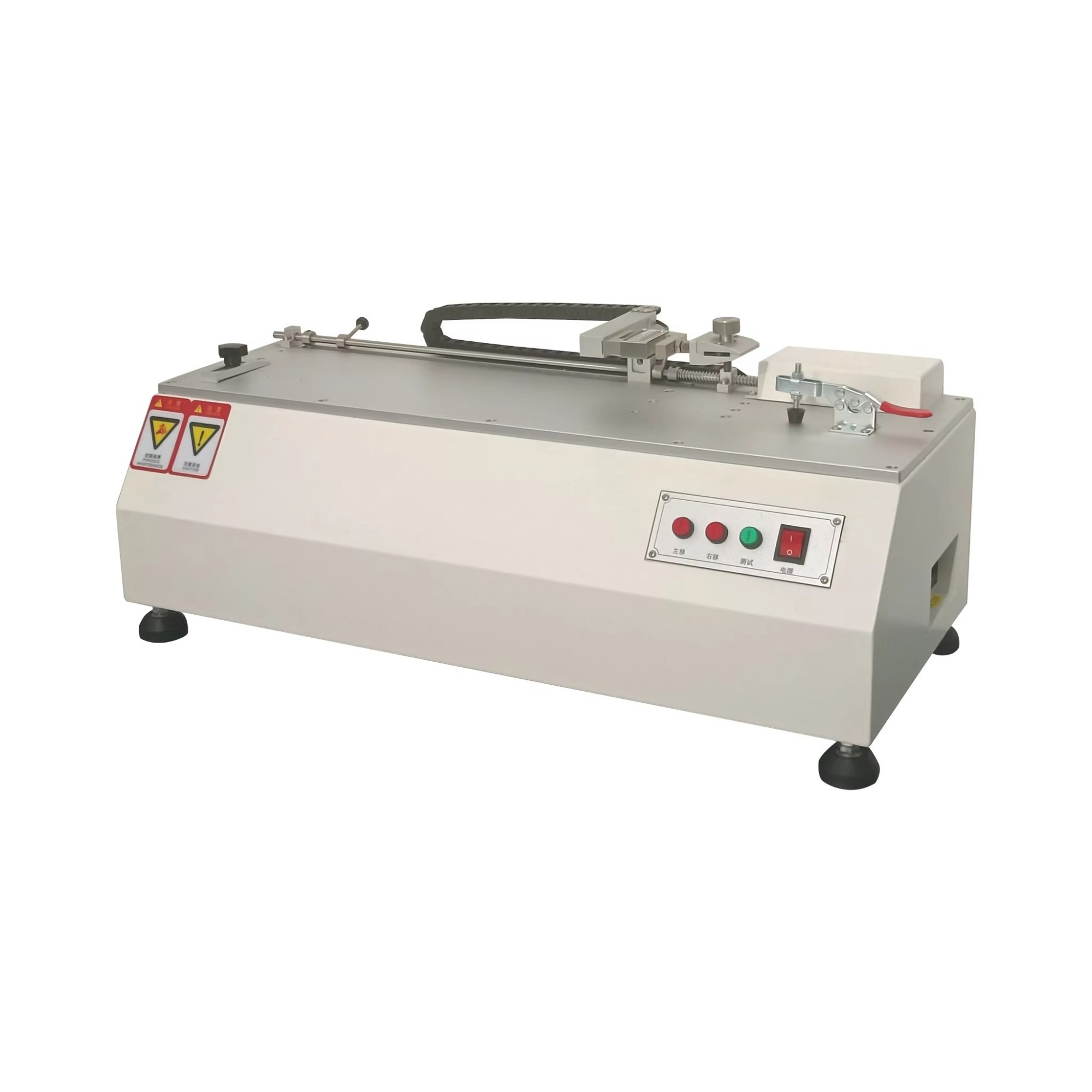

Horizontal Tensile Tester

Product Item : ZY-WL2
Category： Tensile Testing Machine
Horizontal Tensile Tester
Tensile Tester
Horizontal tensile test
Product description：This horizontal tensile tester is suitable for rubber and plastic, paper products, color printing and packaging, tape, bags and handbags, textile, pharmaceutical, daily chemical, food, wire and electr
INQUIRY

Product Introduction

This horizontal tensile tester is suitable for rubber and plastic, paper products, color printing and packaging, tape, bags and handbags, textile, pharmaceutical, daily chemical, food, wire and electronics and other industries. It can test the physical properties of various materials, finished and semi-finished products, and select different fixtures for stretching, compression, stretching, compression, bending, tearing, peeling, adhesion, shear and other tests.

Standards

ASTMD903,GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792,GB/T 16491-2008, GB/T 12160-2002, GB/T 16825-2008, CNS- 11888，JIS K6854，PSTC-7, ISO 3377-1, ISO 3377-2

Product Feature

1) It has protection functions such as overload, overcurrent, overvoltage, displacement limit, emergency stop, etc

2) The controller can control more load cells, with high integration, stable and reliable, and easy to adjust.

3) When the test is completed, it will automatically stop.

4) Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse generation (PWM), and other functions in one.

5) Mechanical zeroing, automatic force measurement, zeroing, calibration and preservation, highly integrated control circuit.

Technical Data

capacity	5,10,20,50,100,200kg
monitor	Touch screen display and connect to a computer
accuracy	within ± 1%
force analysis	1/300000
Effective force measurement range	1 ~ 100% F.S
Deformation indicates accuracy	within ± 1%
Test speed	50 ~ 500 mm/min
Maximum travel	500 mm
Test width	Φ120mm
Power unit switch	kgf,gf ,N,kN,lbf
Stress cell switching	MPa,kPa,kgf/cm2,lbf/in2
Deformation unit switching	mm, cm, inch
Power Supply	AC220V volts, 50/60 Hz, 10a or specified
