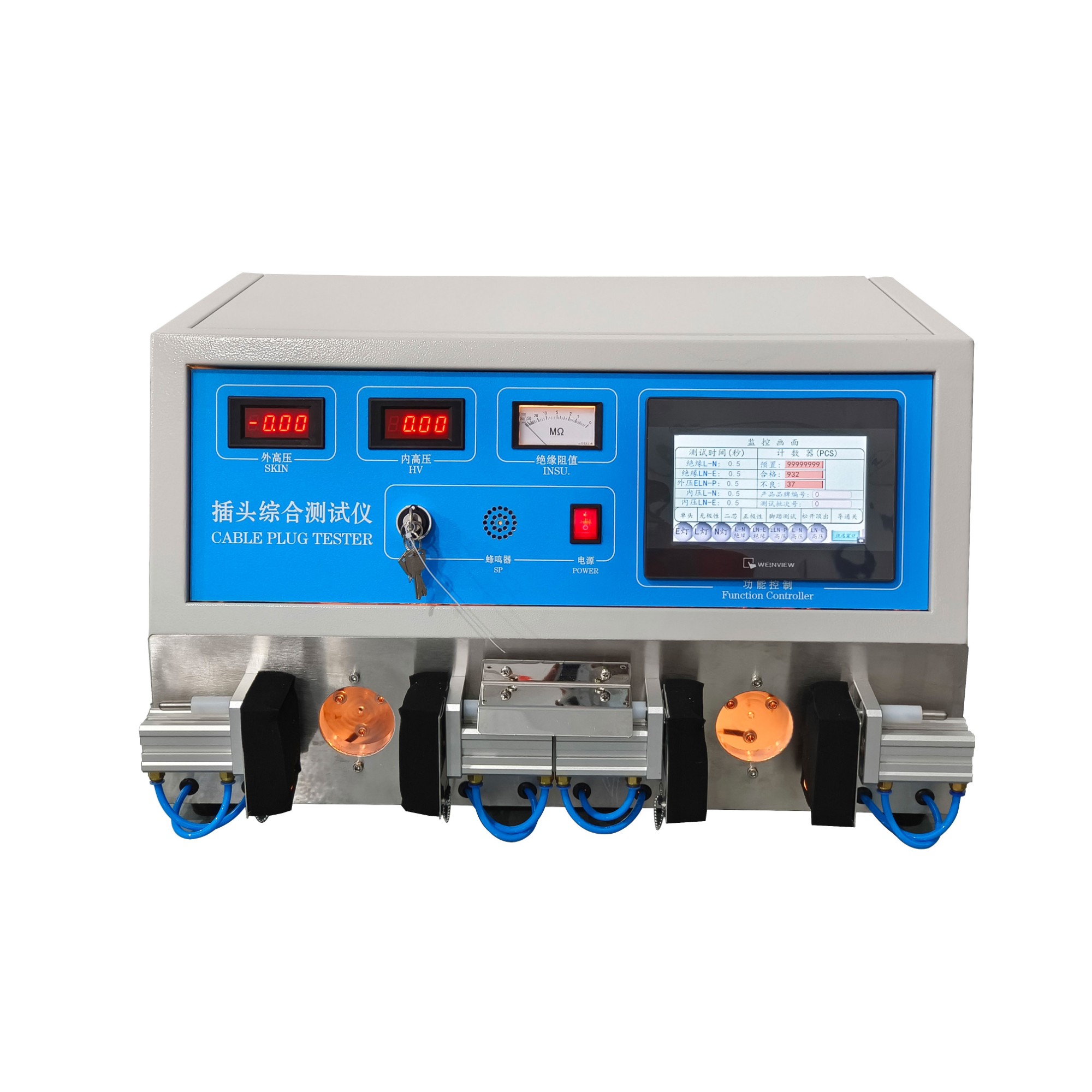

Plug Cable Routine Tester

Product Introduction

The plug cable routine tester is designed to test the comprehensive properties of power plug wires, such as conductivity, polarity, insulation, withstand voltage and leakage. You can perform control and safety routine tests as well as produce plug-in cables that comply with TS IEC 60884-1 + A1 + A2 standards.

Technical Data

Polarity conduction test Polarity test voltage: DC24V

High voltage test: External high voltage: 0-5 KV Adjustable

inter-electrode high voltage: 0-5KV Adjustable waveform: 50/60Hz AC sine wave

Transformer rated power: 500VA

High voltage meter head : Level

1.5 High Voltage Calibration: ± 5% or no leakage current setpoint:

Internal voltage current setting: 0.5/1/2/3/5/10 mA;

External Voltage Current Setting: 0.5/1/2/3/5 mA

Disconnection: Measured value greater than reference value Cut-off output voltage gives fault signal

Accuracy: ± 5%

Current Calibration: Pure resistive load

in series RS truth meter test 3. Insulation resistance test

Output voltage: 500VDC

Voltage Calibration: ± 3%;

Reference set point: 5/50/100MΩ

Disconnect: The insulation resistance of the measured object is less than the set reference value to give the fault signal

Accuracy: ± 5%
