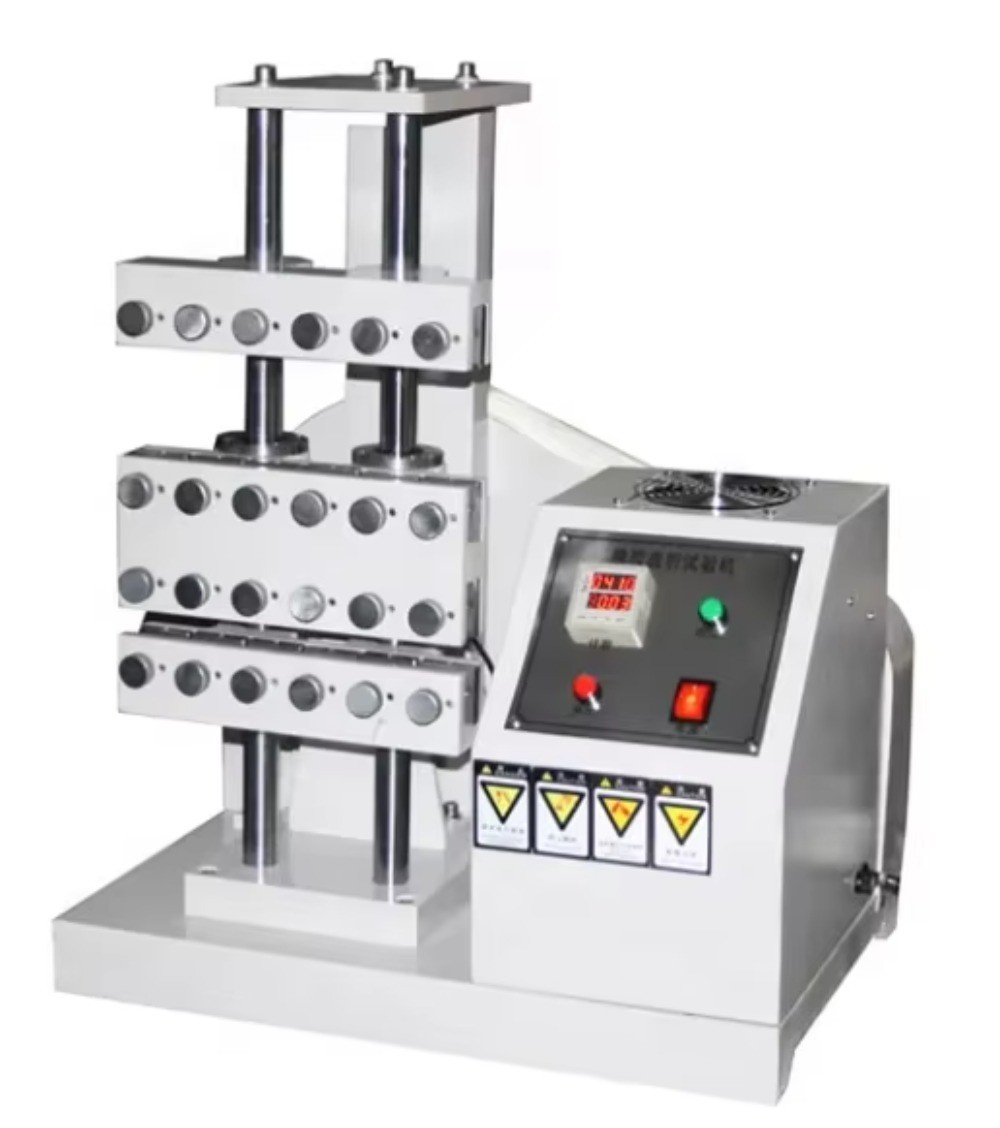

DeMattia Flexing Fatigue Tester - Image 1

DeMattia Flexing Fatigue Tester

Product Item : ZY-6021A
Category： Textile Testing Equipment
0-300 ±10 CPM, adjustable
57mm
0-9999999 (7-digit programmable counter)
6 Groups
Product description：DeMattia Flexing Fatigue Tester is essential for helping companies assess the durability of rubber components such as vulcanized rubber.
INQUIRY

1. Instrument Introduction

Specimens are clamped between the machine fixtures. After continuous flexing fatigue cycles, the cracking degree of samples is observed to compare material durability. It is applicable to rubber, leather, synthetic leather, shoe sole and other materials.

2. Product Functions
Determination of flex cracking performance for vulcanized rubber, leather and fabrics.

3. Compliance Standards
This instrument complies with ASTM-D813, ASTM-D430, GB/T13934-2006, GB/T13935, GB/T20991 Clause 6.5.1, JIS-K6301, ISO132, ISO133, BS-903-A10 and other relevant standards.

4. Product Features

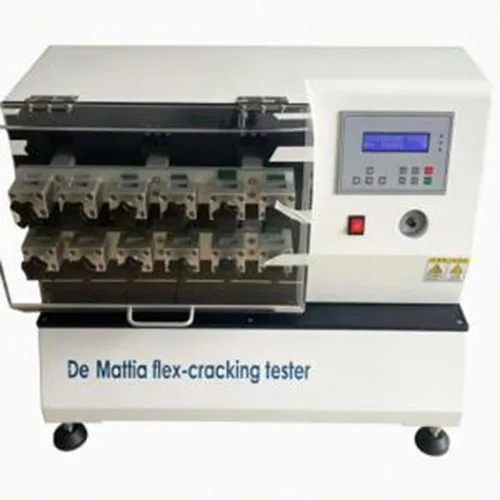

1). Horizontal machine structure with painted cabinet

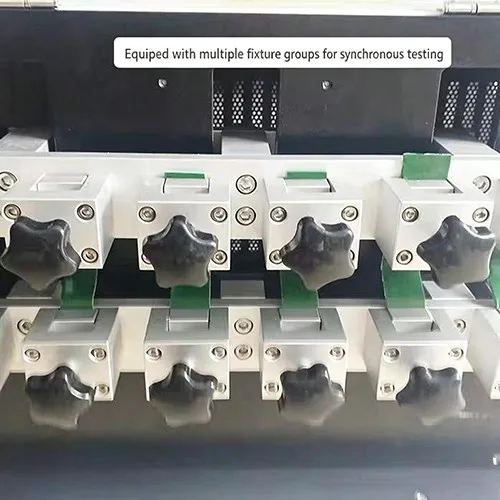

2). Specimen holders: maximum 6 specimens for one test run; 10-specimen version available for customization

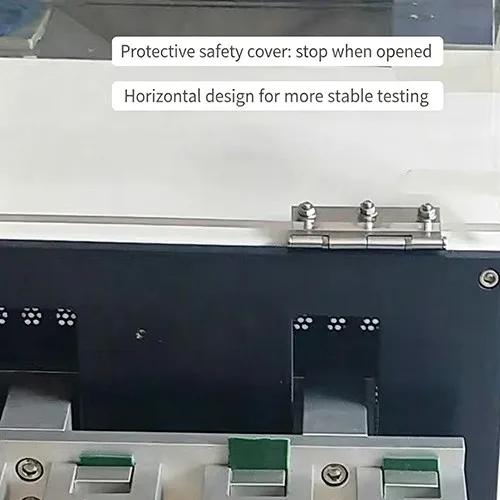

3). Transparent acrylic safety guard with interlock stop switch (machine stops automatically when cover opens)

4). Laser engraved text on cabinet with clear visual effect

Parameter	Specification
Specimen dimension	(L)125-155 × (W)20-25 mm
Maximum fixture spacing	76 mm
Minimum fixture spacing	19 mm
Test speed	0-300 ±10 CPM, adjustable
Reciprocating stroke	57 mm
Counter range	0-9999999 (7-digit programmable counter)
Standard specimen capacity	6 groups
Safety protection	Transparent safety shield with interlock shutdown function
Overall dimensions	680 × 460 × 580 mm
Net weight	68 kg
Power supply	AC220V
