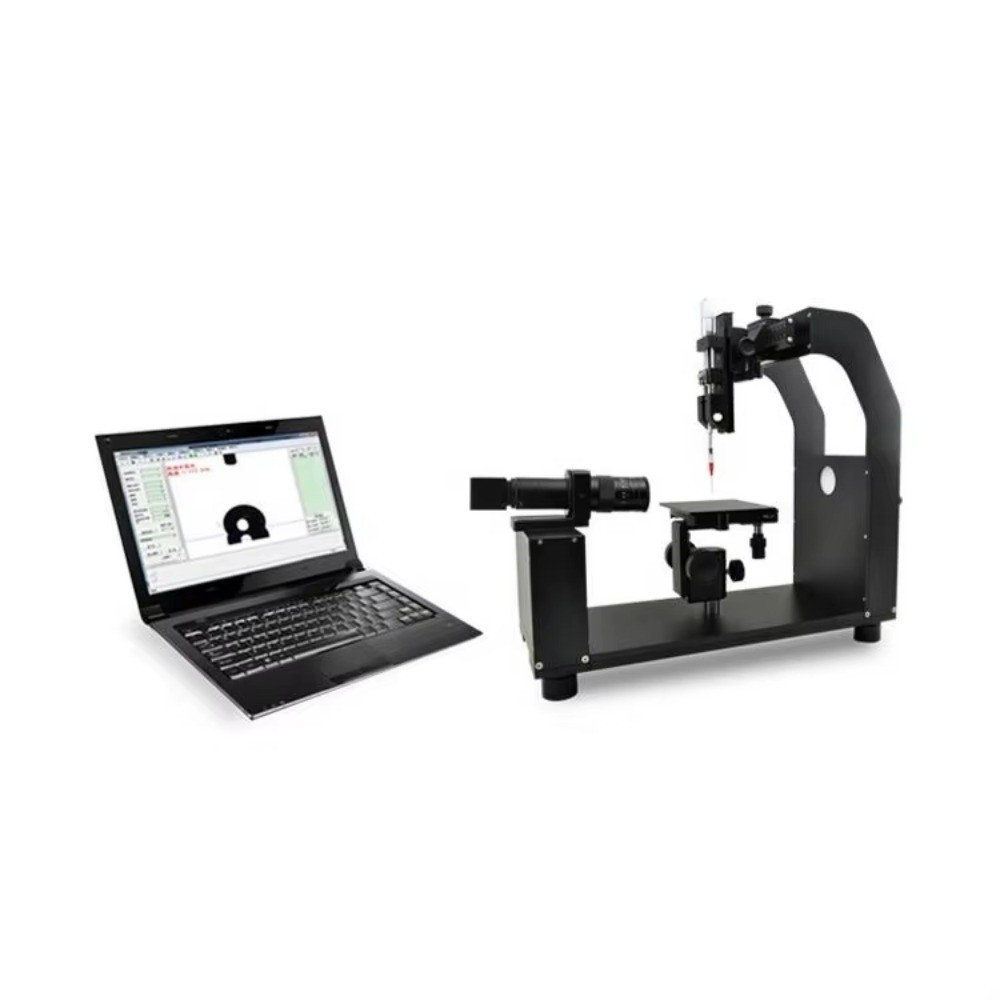

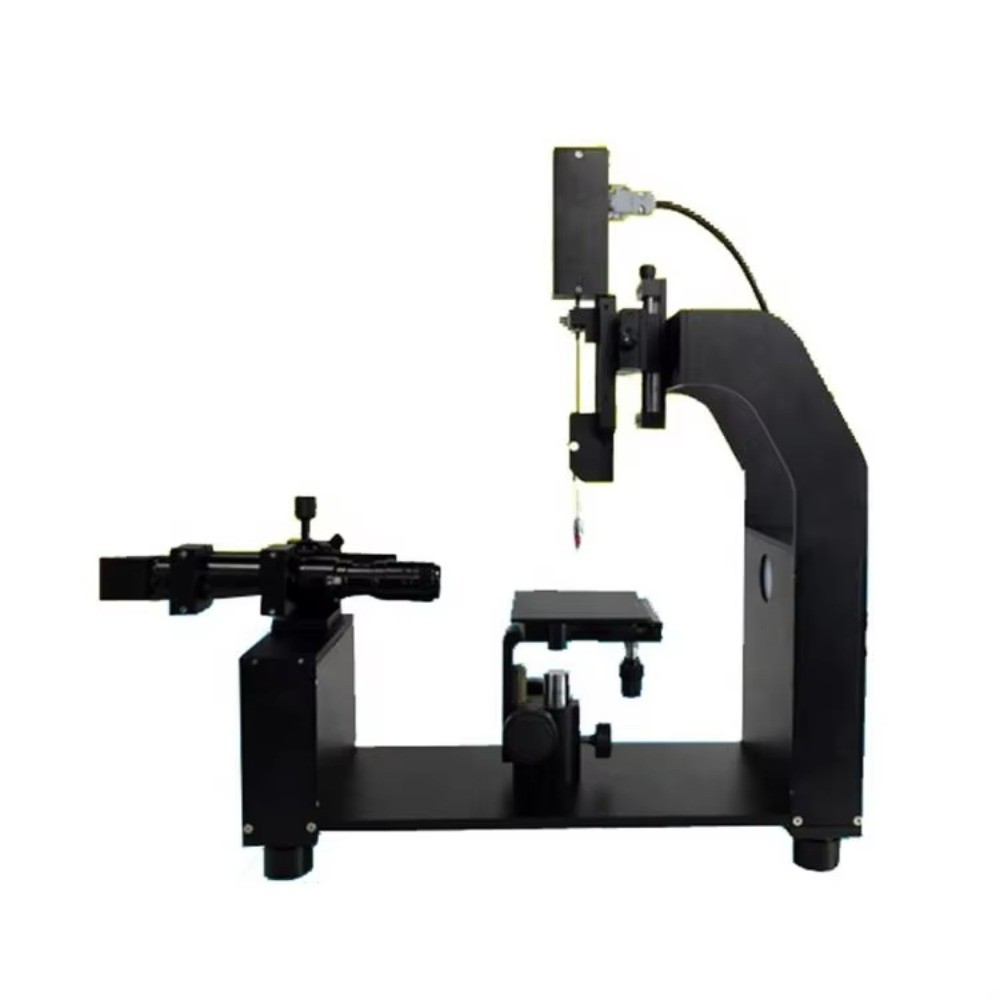

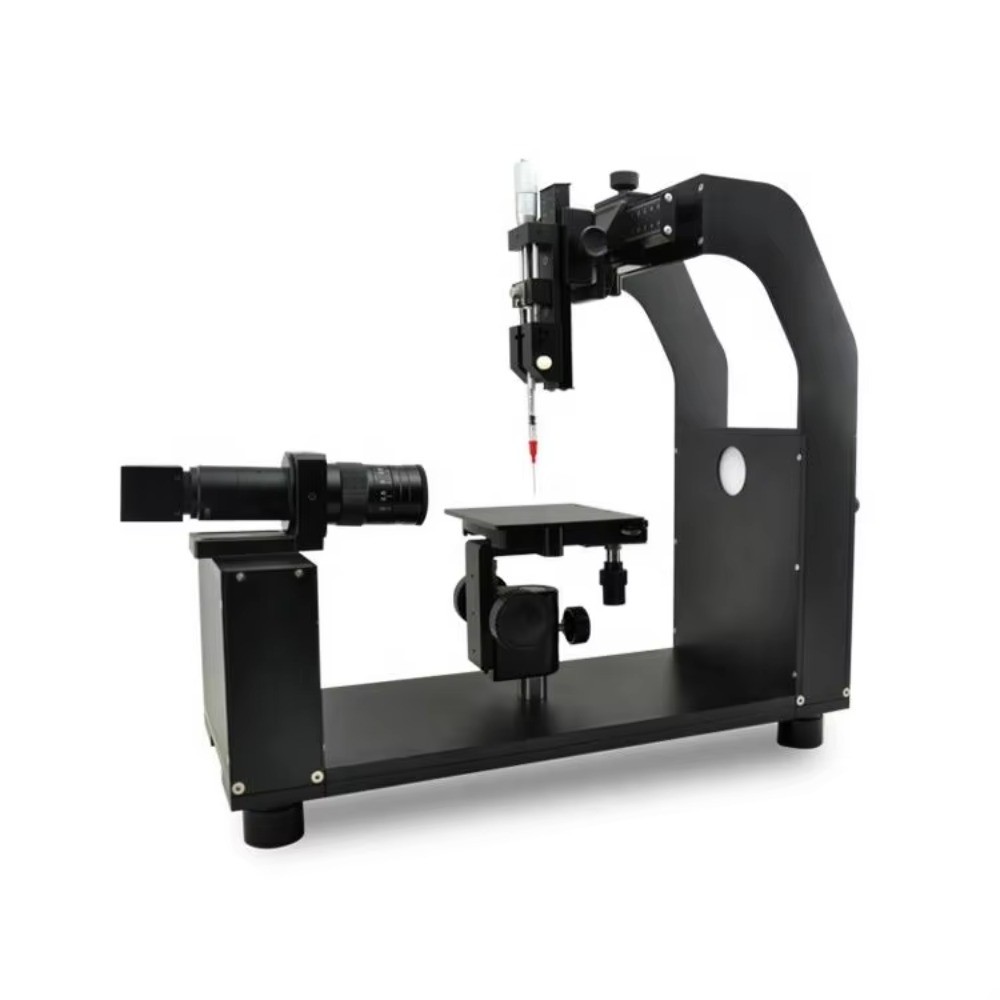

Contact Angle Meter

Product Item : ZYCA-180
Category： Other
Contact Angle Meter
Contact Angle Measuring Instrument
Contact Angle Testing
Contact angle tester price
Product description：Contact angle meter adopts the principle of optical imaging, image contour analysis way to measure the surface contact Angle, wettability, interfacial tension of table, surface energy, such as perform
INQUIRY

Product Introduction

Contact Angle refers to the tangent line of the gas-liquid interface at the intersection point of gas, liquid and solid. This tangent line has an Angle between the liquid and the solid-liquid boundary. The measurement of Contact Angle is the main method of surface performance detection.

Contact angle meter adopts the principle of optical imaging, image contour analysis way to measure the surface contact Angle, wettability, interfacial tension of table, surface energy, such as performance, equipment cost-effective, comprehensive functions, and can meet the demand of conventional measurement, has been widely used in many colleges and universities institutes and enterprises.

Technical Data

Accuracy	±0.1°
Measurement range	0-180°
Maximum sample size	10inch
Work Table size	120*150mm
Drip	Manual rotary injection, drip precision can be achieved at 0.2μL
Injector	Dedicated precision syringe capacity 1000μL
Lifelong	The service life is more than 25,000 hours
Injection unit movement	Up down 100mm; Left right 100mm
Maximum sample size	Front back move manual, stroke 60mm, accuracy 0.1mm Left-right move, manual, stroke 35mm, accuracy 0.1mm Up down move, manual, stroke 80mm,accuracy0.1mm
Acquisition system adjustment	Before and after 60 mm, the view Angle is adjustable (smooth inspect, look down, 360 ° rotating Angle of view, etc)
CCD	Imported high-speed industrial chip with 25 frames /S and 130W pixels

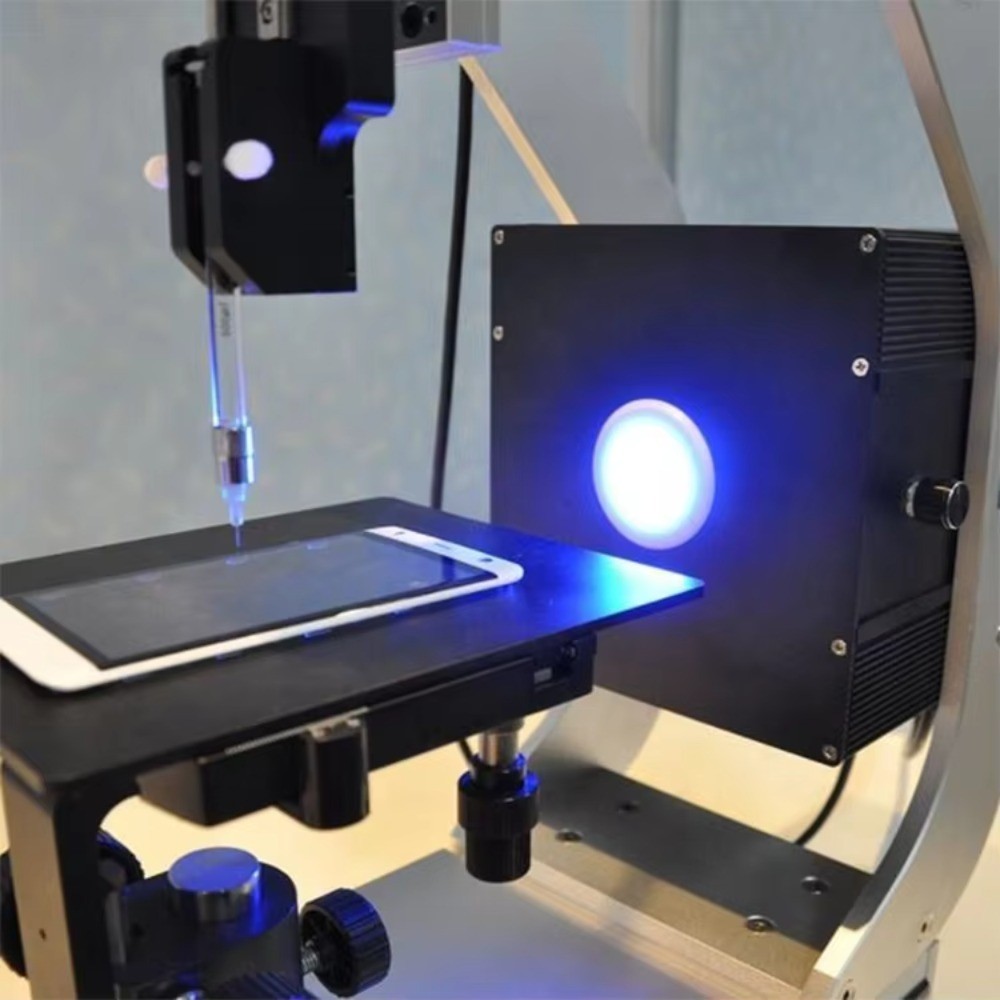

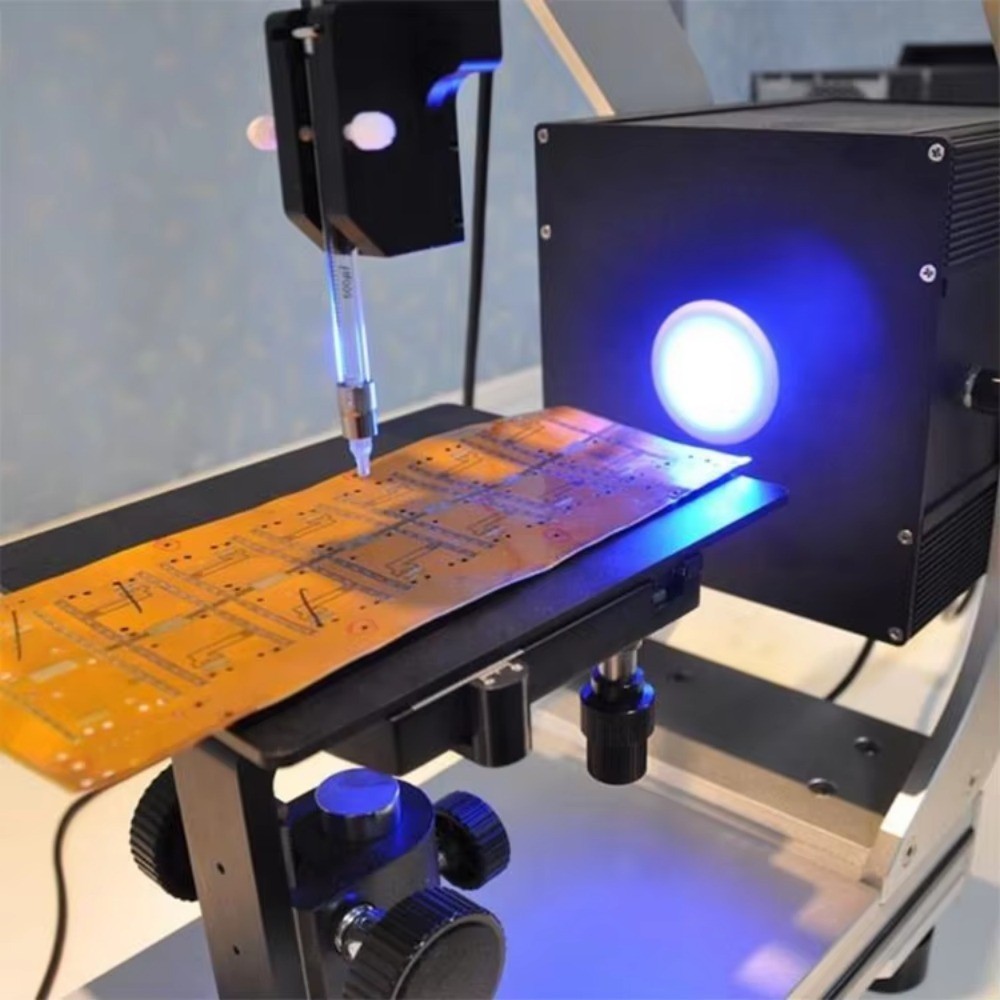

Light source	Dense LED can adjust blue tone industrial grade cold light source
Lens	0.7-4.5 times hd industrial-grade continuous variable magnification microscope
