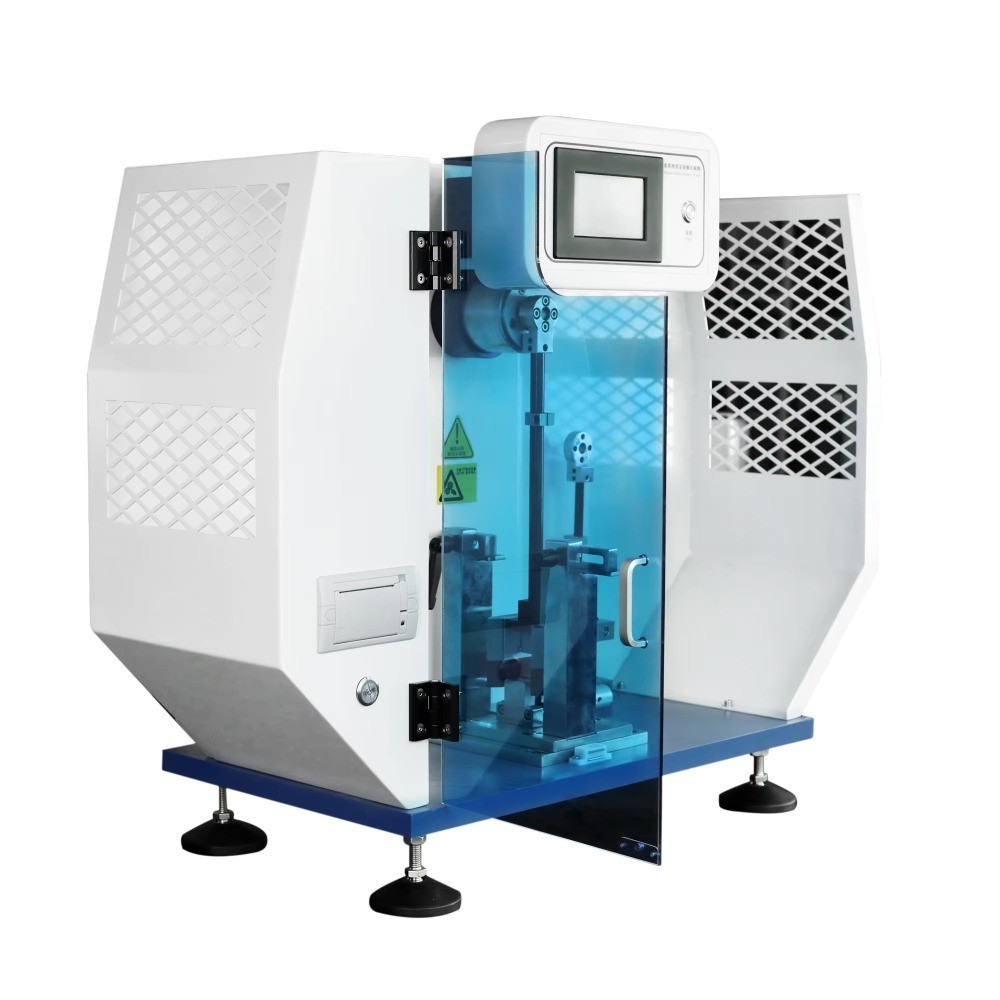

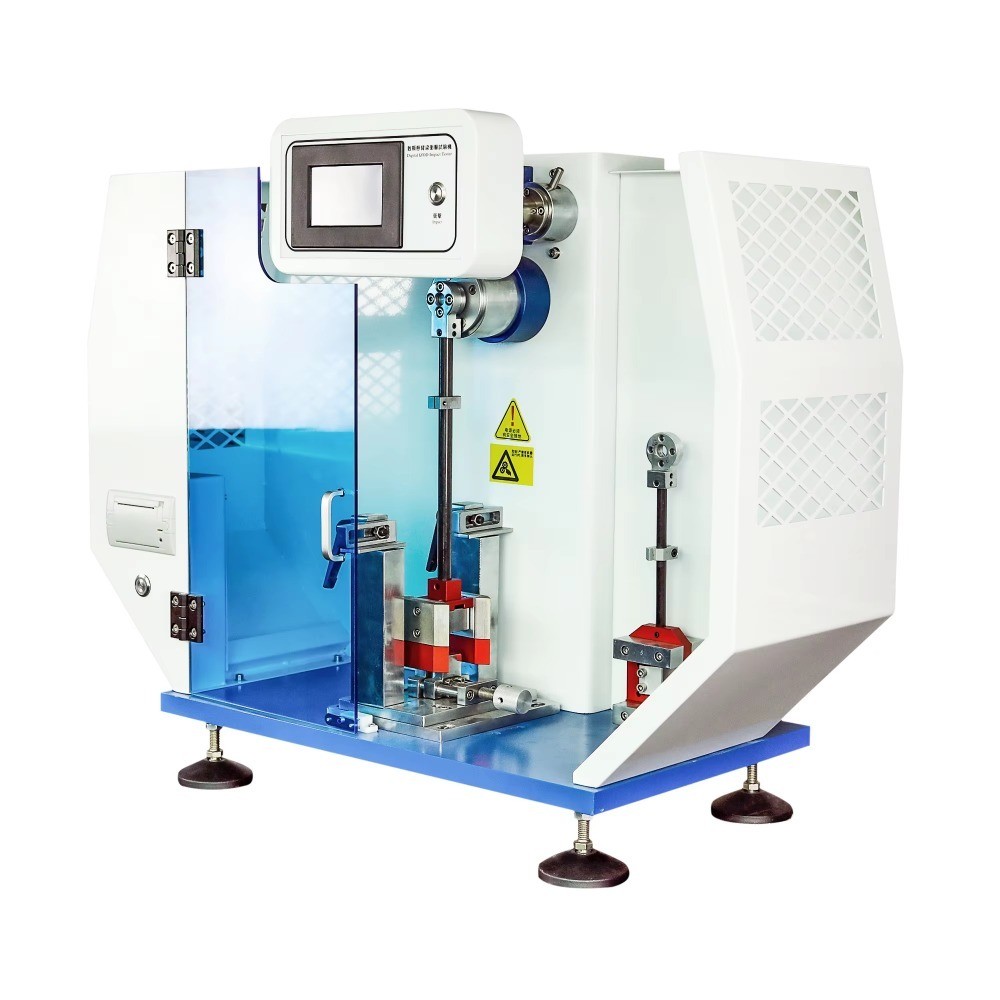

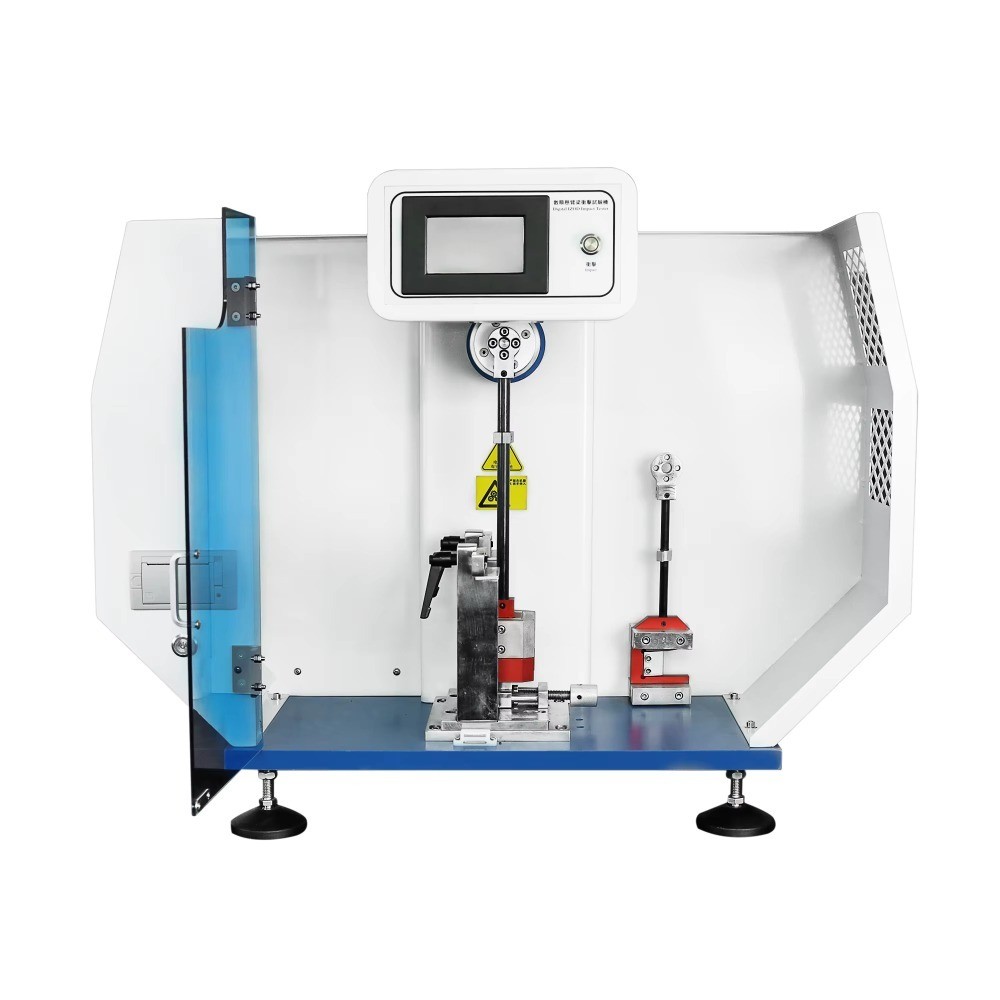

Charpy Impact Tester Machine

Product Item : CIT-150
Category： Strength Tester
Charpy Impact Tester
charpy impact tester price
charpy impact tester machine
charpy impact tester for sales
Product description：The digital Charpy impact tester is mainly designed for measuring the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic
INQUIRY

Product Introduction

The digital Charpy impact tester is mainly designed for measuring the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.

Technical Data

Item	Charpy Impact	Izod Impact
Pendulum energy	1J, 2J, 4J, 5J	1J, 2.75J, 5.5J
Pendulum angle	150°
Blade angle	30°
Blade front angle	5°
Blade back angle	10°
Impact speed	2.9m/s	3.5m/s
Impact center distance	221mm	335mm
Blade filleted radius	R=2mm±0.5mm	R=0.8mm±0.2mm
Energy loss	0.5J ≤4.0J 1.0J ≤2.0J 2.0J ≤1.0J ≥4.0J≤0.5J	2.75J ≤0.06J 5.5J ≤0.12J
Pendulum torque	Pd1J=0.53590Nm Pd2J=1.07180Nm Pd4J=2.14359Nm Pd5J=2.67949Nm	Pd2.75J=1.47372Nm Pd5.5J=2.94744Nm
Print out	Capacity. Angle, energy, etc.
