Fall Dart Impact Tester

  • Product Item : FDT-3000
  • Category: Strength Tester
  • Fall Dart Impact Tester
  • Falling Dart Tester
  • Product description:The fall dart impact tester is suitable for free fall testing of small consumer electronic products and parts such as mobile phones, walkie-talkies, electronic dictionaries, building intercoms, CD/MD/
  • INQUIRY

Product Introduction

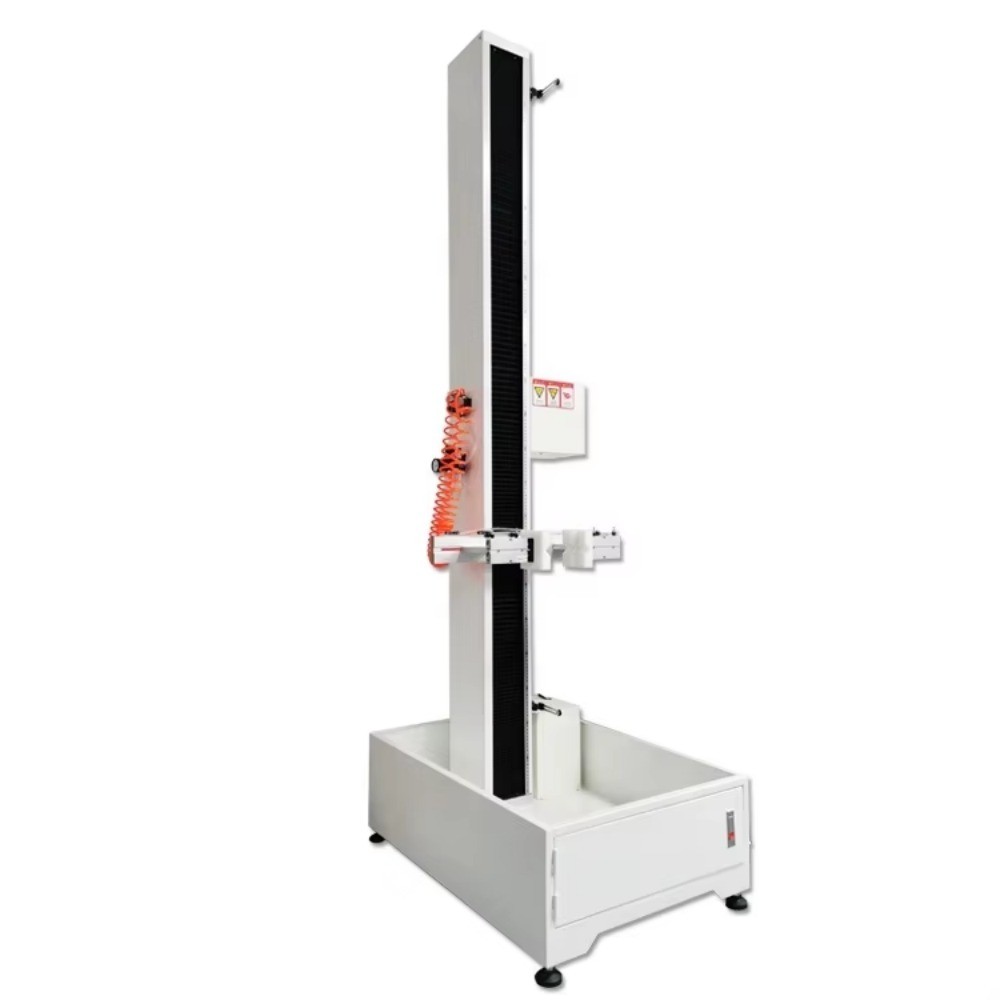

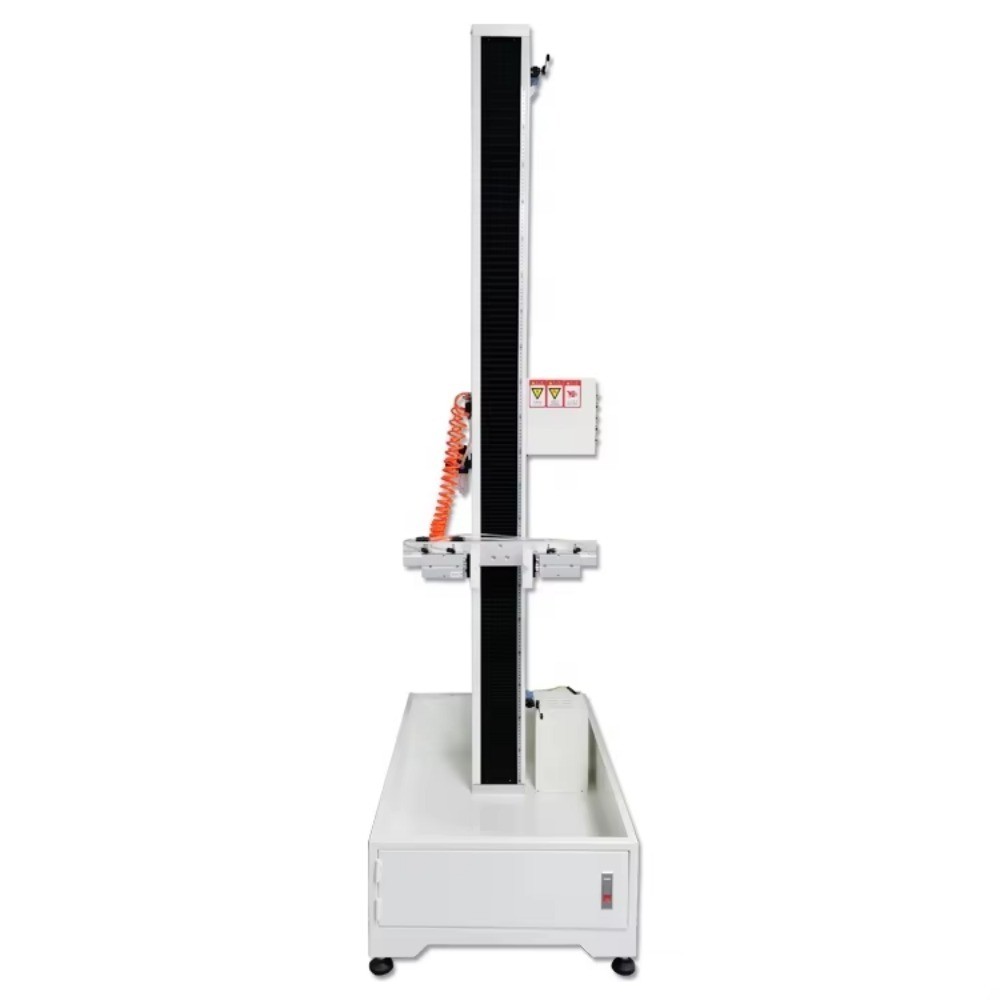

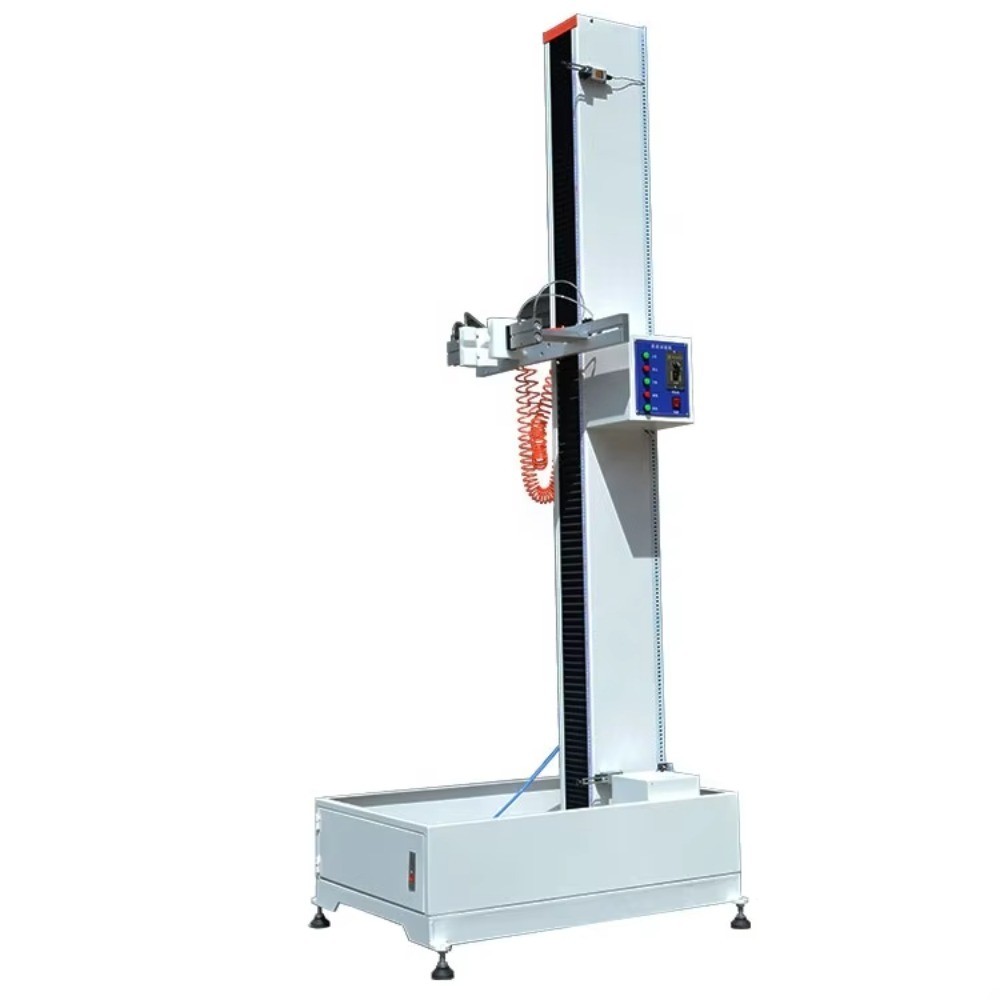

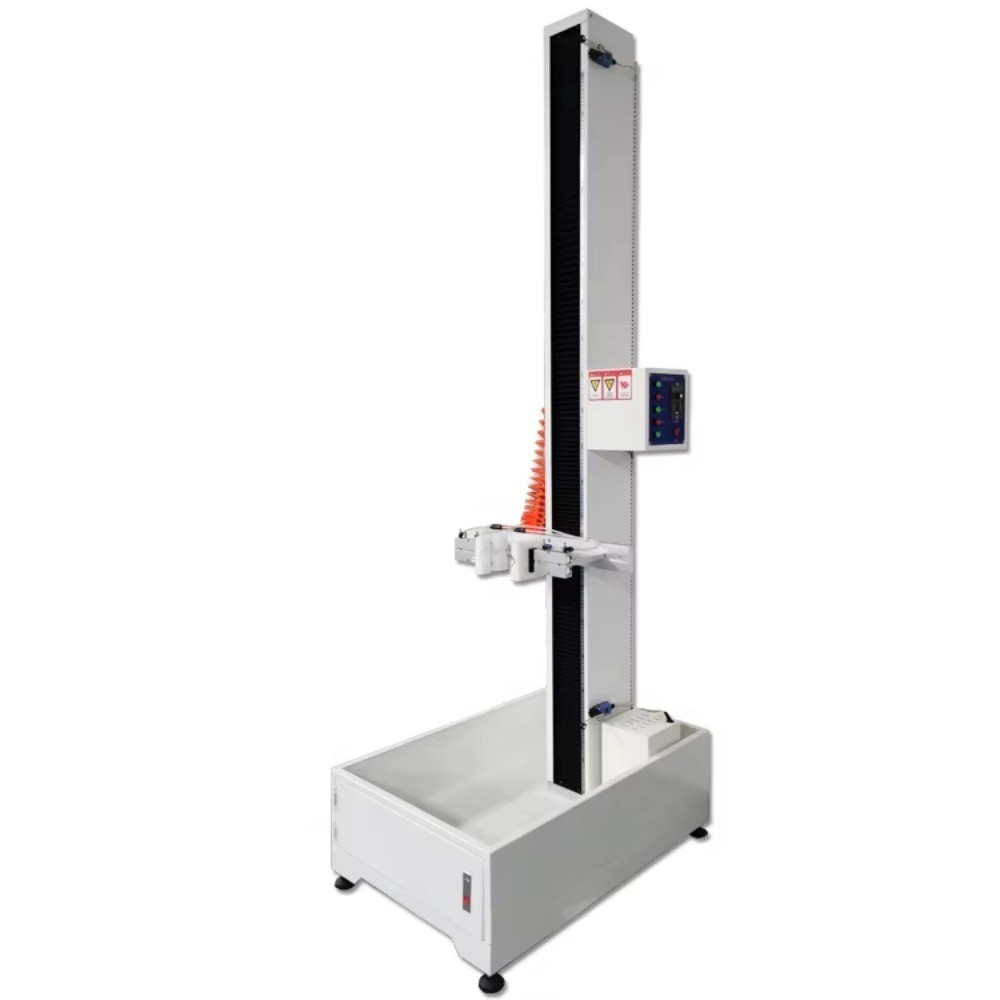

The fall dart impact tester is suitable for free fall testing of small consumer electronic products and parts such as mobile phones, walkie-talkies, electronic dictionaries, building intercoms, CD/MD/MP3, etc. The aircraft adopts pneumatic structure, placed in a special clamp (adjustable stroke) clamp, press the drop button, when the cylinder is released, the specimen will be free fall test, the descent height can be adjusted up and down, the altimeter can find the specimen descent height, the key components of the machine have reliable performance, and provide a variety of floor-to-ceiling floors.

Standard

GB/T 31485-2015,GB/T 31241-2014,UN38.3,IEC62133,QC/T743-201X,GB/T 8897.4-2008

Features

1 mobile phone free drop tester, electric drop tester can be used for packaging surface, corner, edge free drop test.

2. Display the instrument with height digital and track the height with an encoder, so the exact descent height can be measured.

3. The descent height tolerance is within 2% or 10mm;

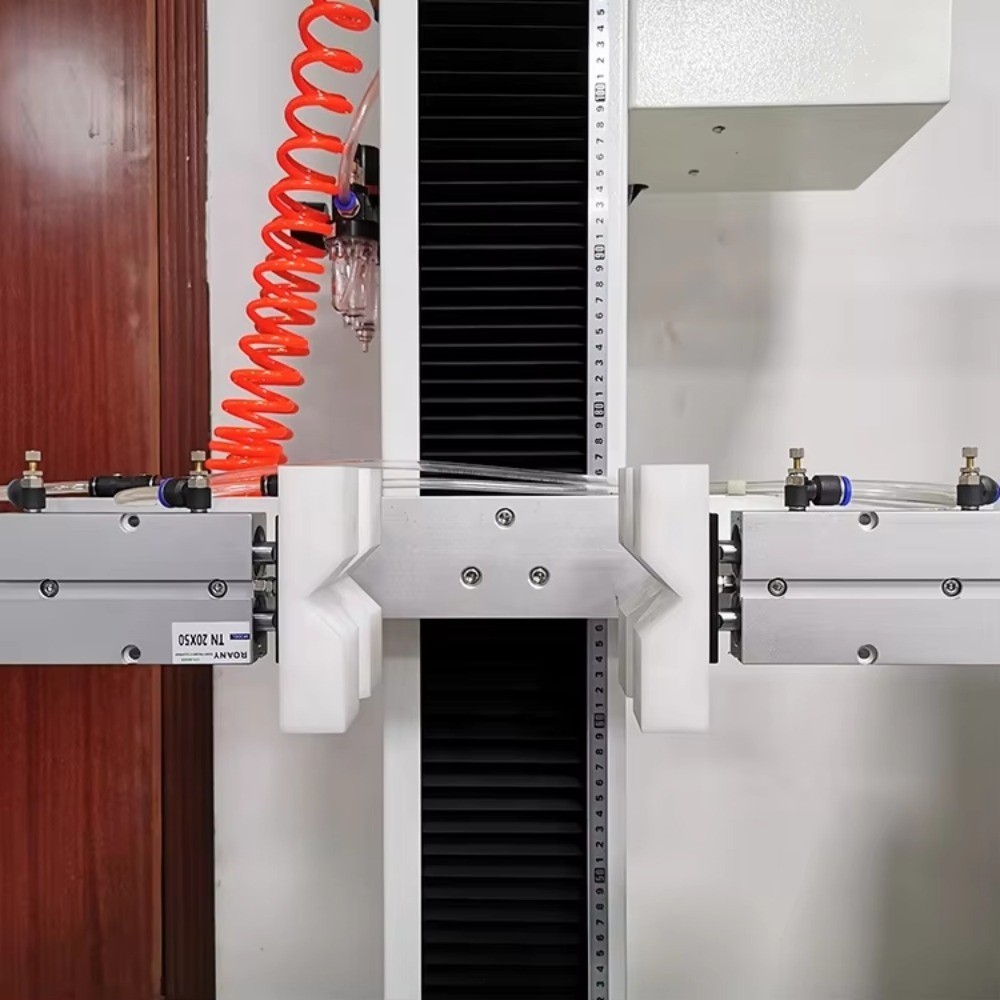

4. The pneumatic structure is adopted, the specimen is fixed with a special fixture (the range is adjustable), the drop button is pressed, the pneumatic cylinder is opened, and the specimen falls freely. The descent height is controllable and comes with a height steel ruler to make the descent height usable.


Technical Data

Model

FDT-3000

Descend altitude

300 ~ 2000 mm

Drip method

Faces, sides, and corners fall

Maximum test load

5 kg ± 100 g

Floor-to-ceiling flooring material

A3 steel plate (acrylic board, marble board, wooden board optional)

Lifting method

Motor lifting

Clamping method

Pneumatic drip adsorption, any part can be dropped

Descending height scale

1 mm

Drop floor size

W500 x D600 x H20mm (solid board)

Air source

<1mpa

impetus

220V 50Hz
