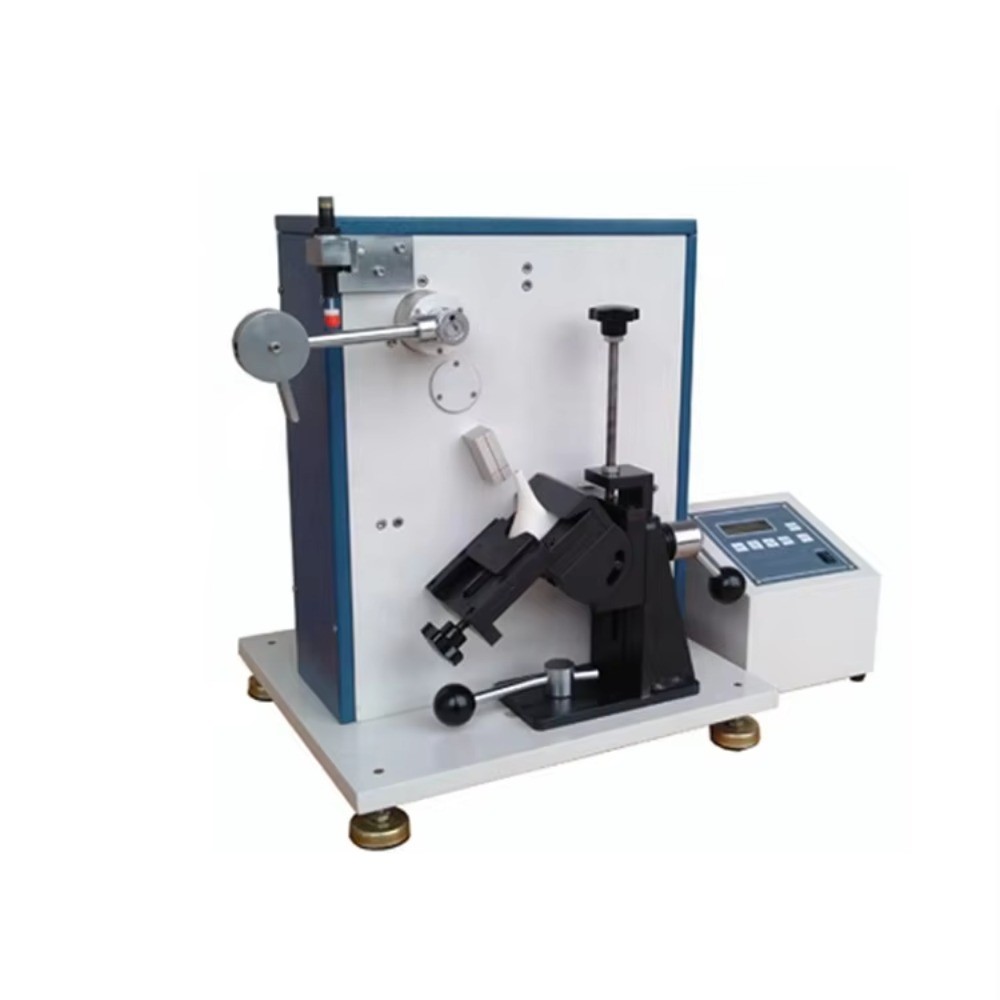

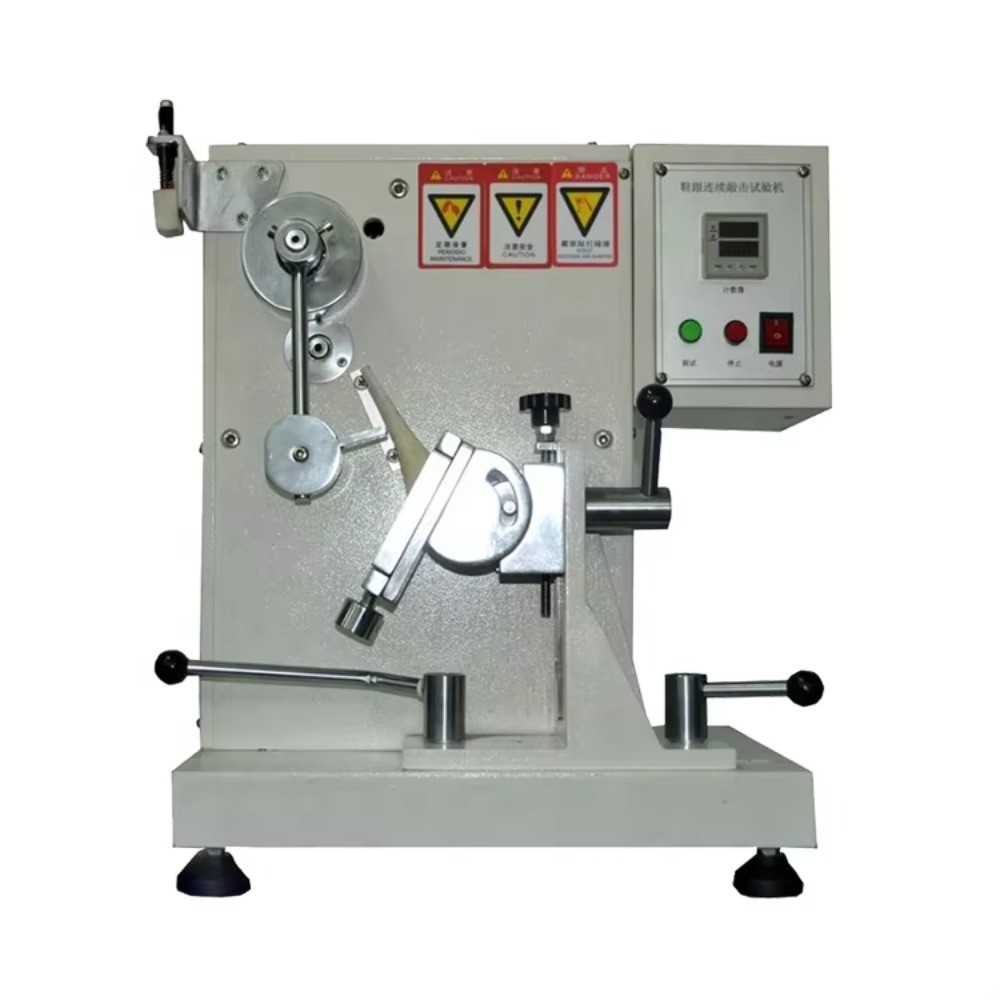

Heel Impact Fatigue Tester

Product Item : IFT-900
Category： Other
Heel Impact Fatigue Tester
Impact Fatigue Tester
Heel impact testing
Heel Impact Tester
Product description：The heel fatigue tester mainly tests plastic heels, simulating the ability of the heel to resist continuous impact when wearing women's shoes. This machine is a pair of women's high heels, moving once
INQUIRY

Product Introduction

The heel fatigue tester mainly tests plastic heels, simulating the ability of the heel to resist continuous impact when wearing women's shoes. This machine is a pair of women's high heels, moving once per second, in free fall, with an energy of 0.68J, the impact hammer descends from a horizontal position to a vertical position, hitting the specimen until the heel breaks or the desired number of fatigue is reached.

Standards

BS-5131，SATRA PM20，SATRA TM21

Technical Data

Model	IFT-900
Impact frequency	60 blows/min
Impact energy	0.68 J/blow
Swing arm	Φ12.5 mm
Impact hammer	Φ57mm, thickness 20mm
Test angles	90 °
Specimen adjustable range	Up to down ~ 90 mm Left to righ ~ 80 mm Angle 0° ~ 180°
counter	LCD，0 ~ 999999
power supply	220V, 50/60hz or specification
