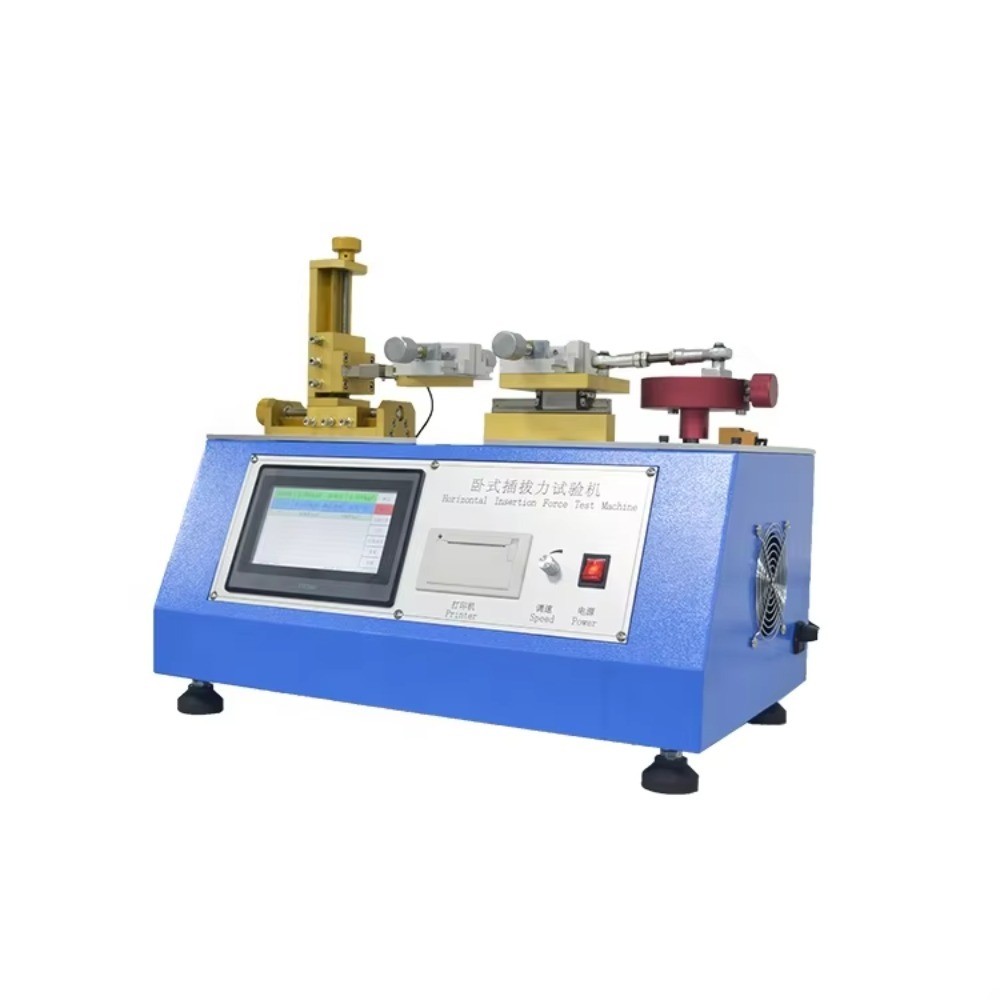

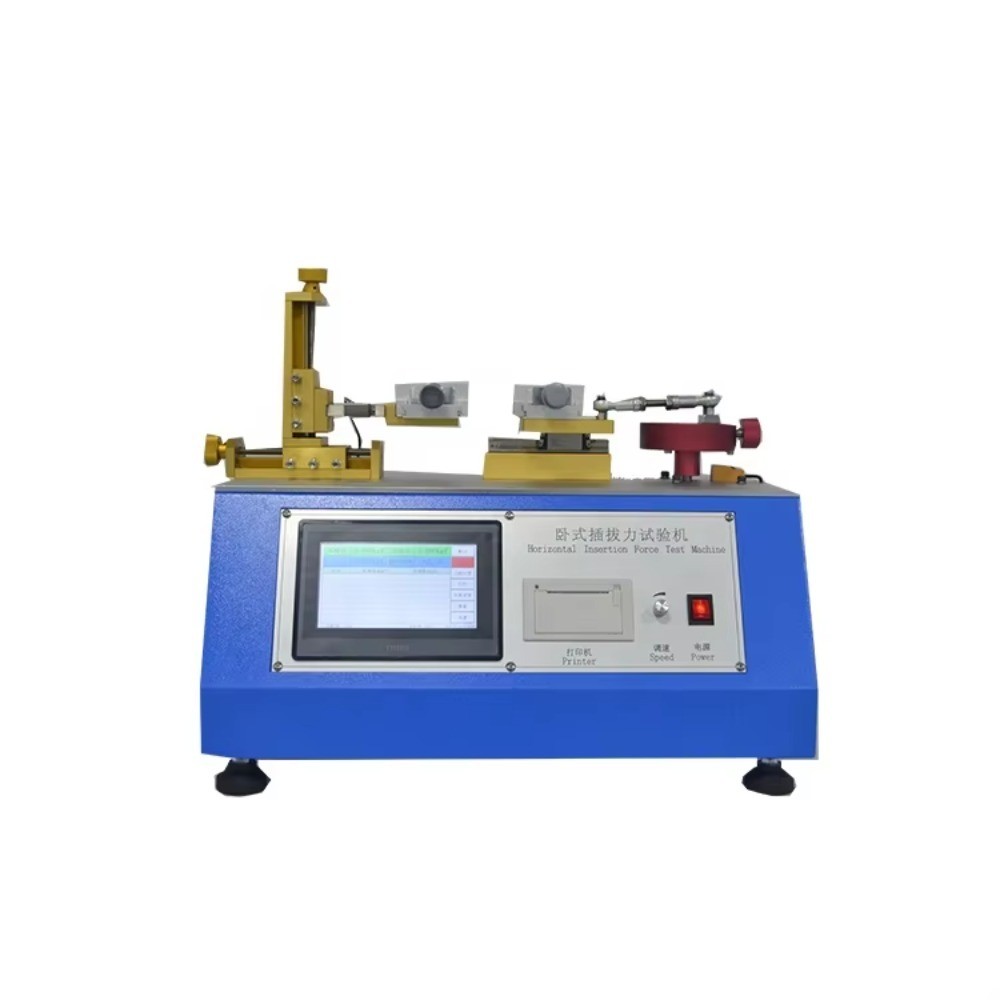

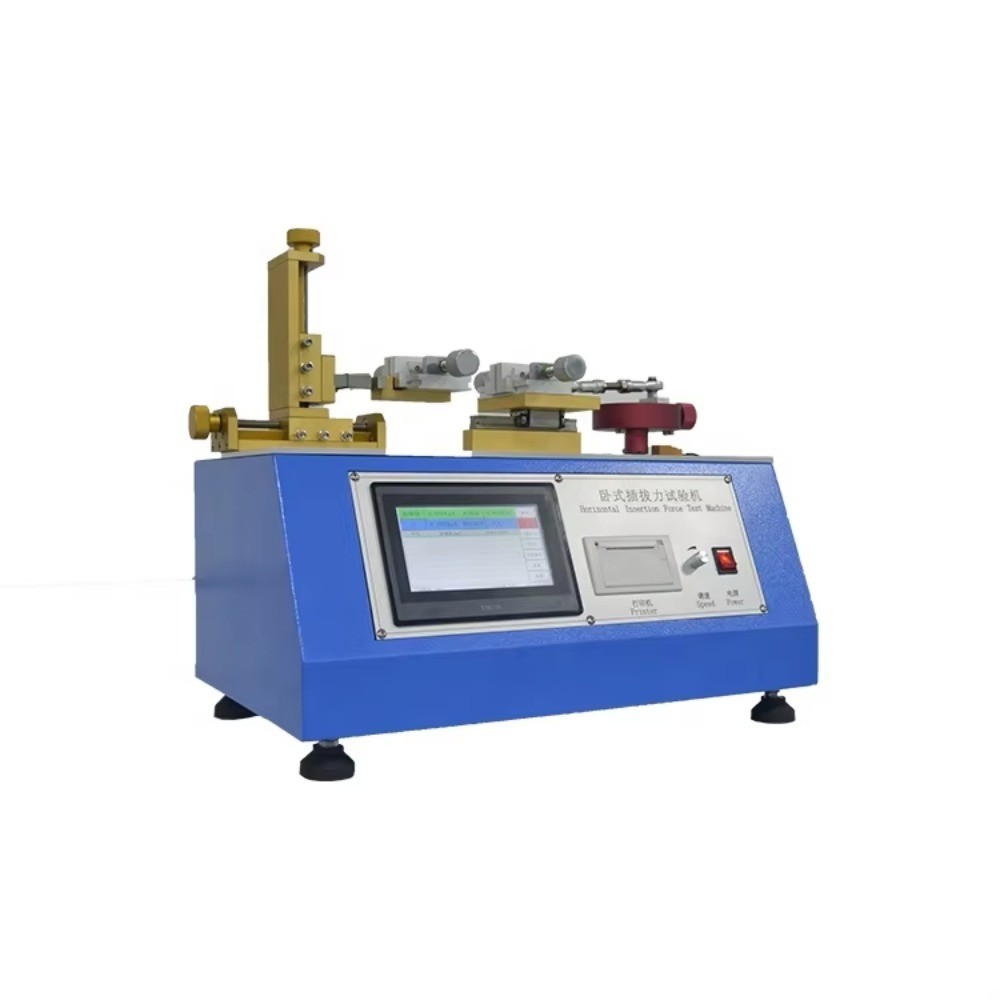

Horizontal Insertion Force Tester

Product Item : PF-500
Category： Other
Insertion Force Test
Insertion and Withdrawal Testing
Insertion Tester
Product description：The horizontal insertion force tester is suitable for a wide range of connectors. It uses embedded microcomputer measurement to display the peak, continuous change and force value of the insertion for
INQUIRY

Product Introduction

The horizontal insertion force tester is suitable for a wide range of connectors. It uses embedded microcomputer measurement to display the peak, continuous change and force value of the insertion force, and has a printing function. This is one of the best value machines on the market.

Features

1. Test speed, number of tests and stroke can be set.

2. Auto show tests speed, insertion force, exit force and current force.

3. Set the test time, when it reaches the value, it will stop automatically.

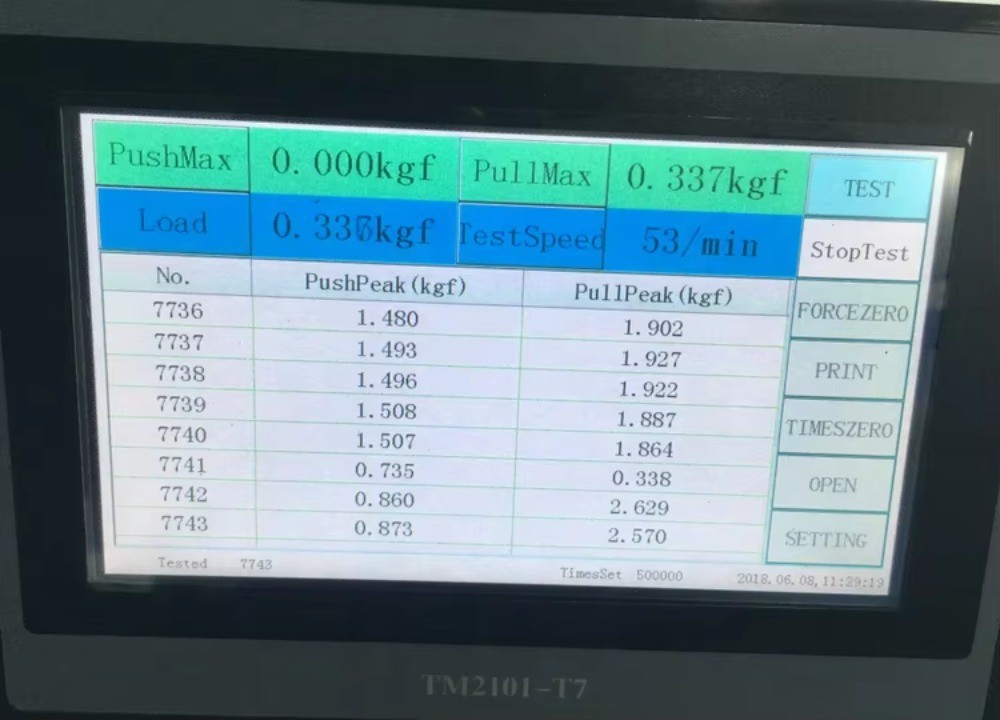

4. Touch screen controller.

Technical Data

Model	PF-500
Display	touch screen
Load capacity	50kgf
Speed range	0-60 times/min (adjustable)
Resolution troops	0.01 kg
Test time	0-500000
Drive mode	Rotating eccentric wheel
Stroke adjustable range	0 ~ 50 mm
unit	N, Kg
size	500450350 mm
impetus	220V，50Hz
