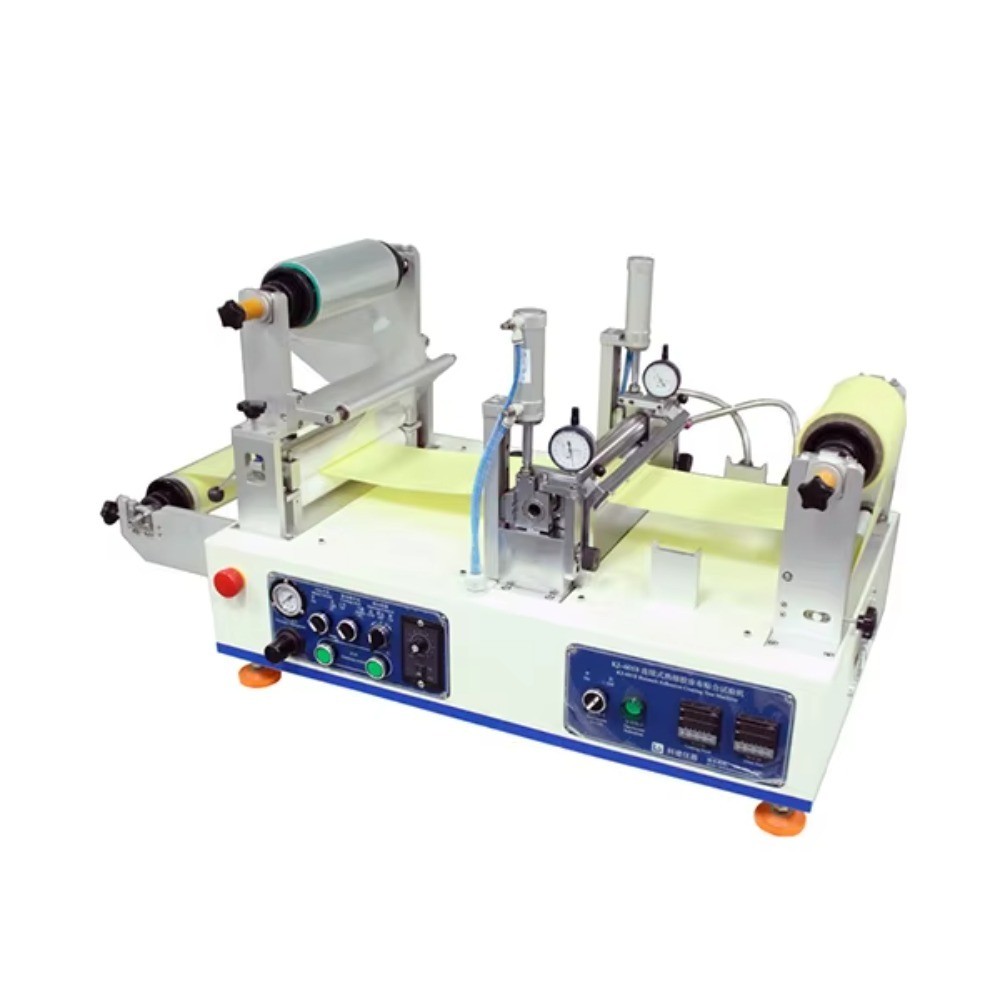

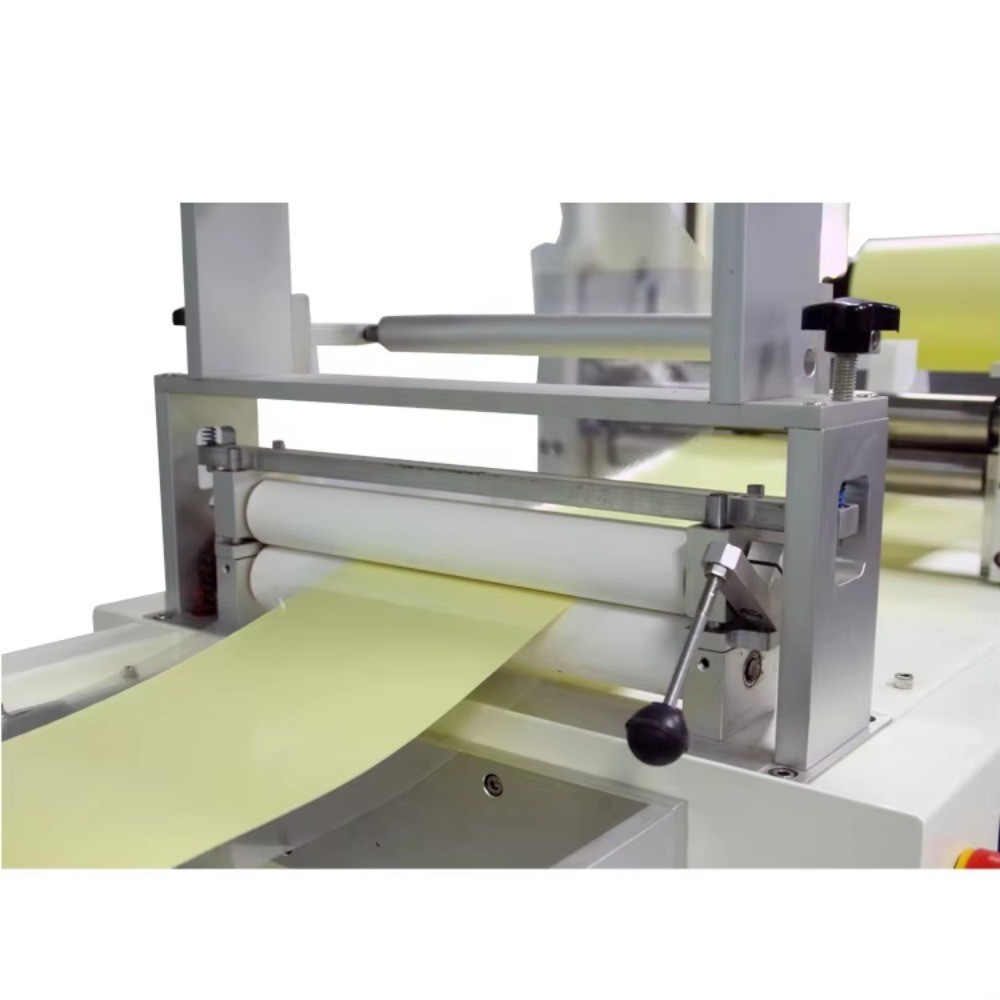

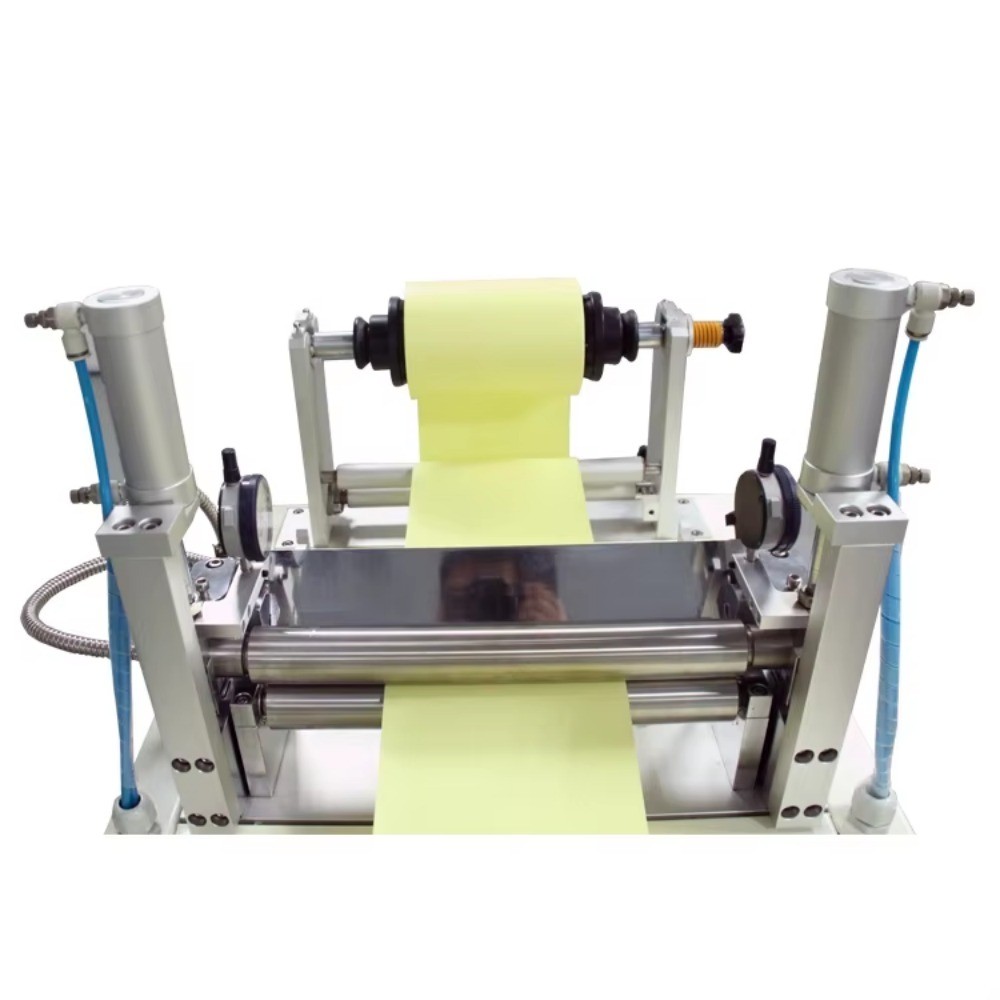

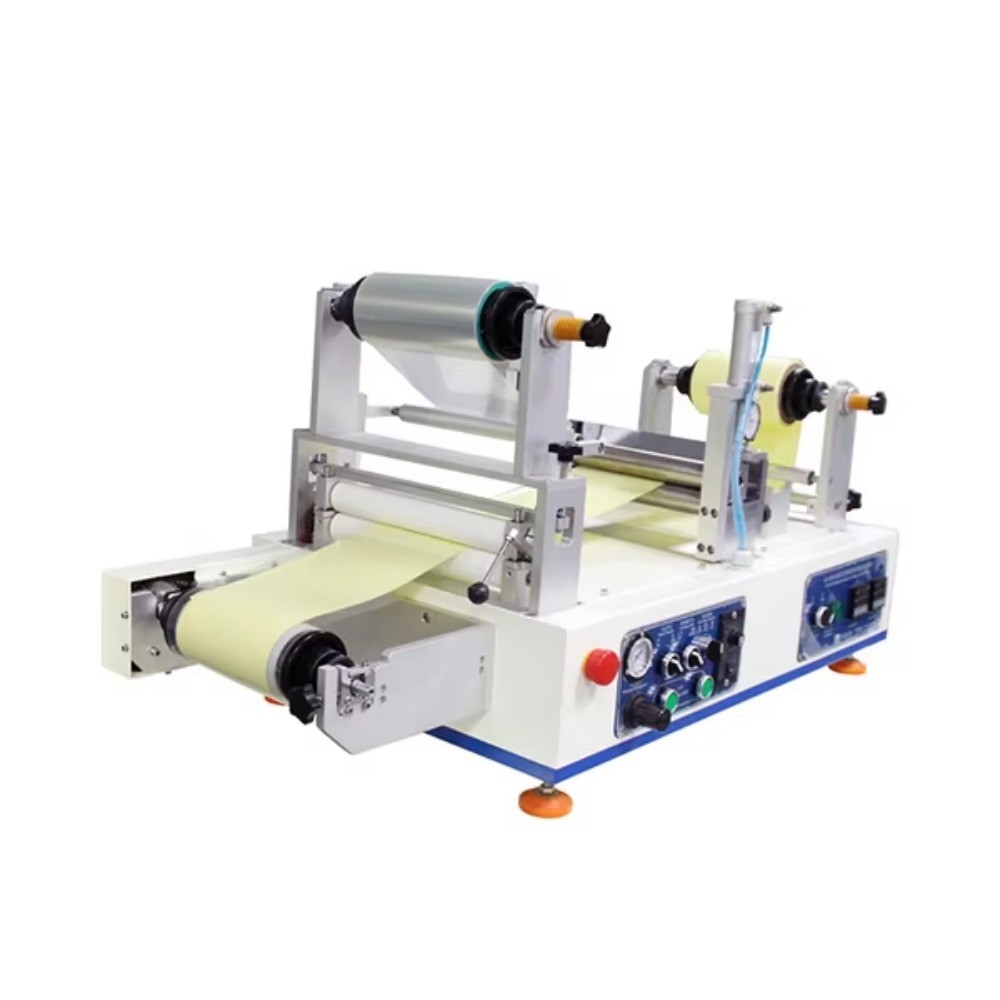

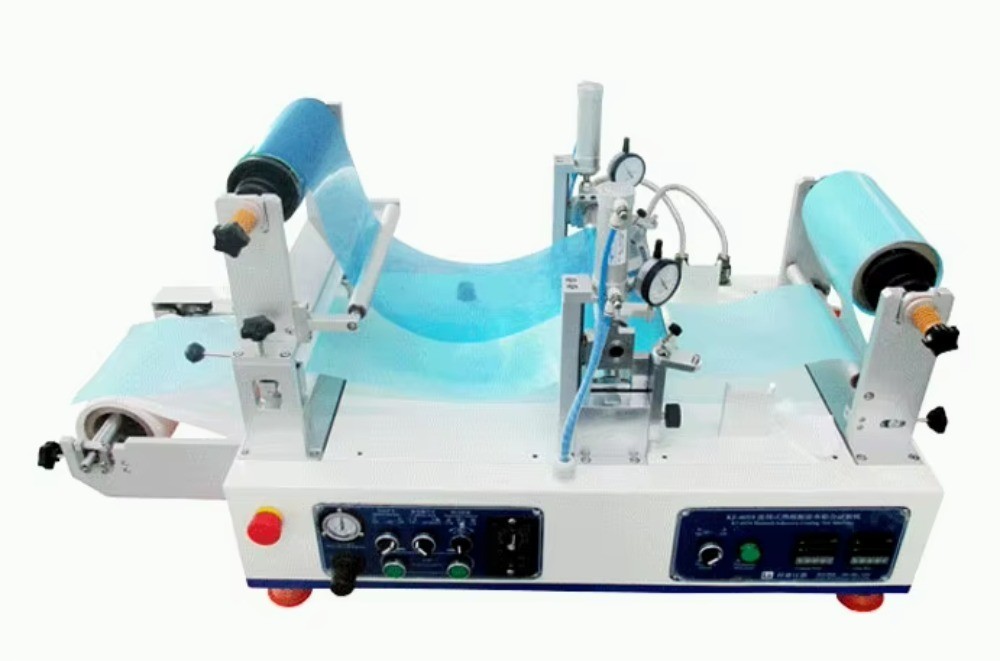

Hot Melt Adhesive Label Coating Machine

Product Item : LCM-200
Category： Other
Adhesive Label Coating Machines
Label Coating Machines
Label Sticker Coating Machines
Adhesive Coating & Laminating Stations
Product description：It is designed for producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can b
INQUIRY

Product Introduction

It is designed for producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied.

Continuous coating proofing or small production of laboratory miniature hot melt adhesive coating and laminating machine. The hot-melt pressure sensitive adhesive can be directly coated on the heat-resistant substrate, or coated on the release paper and then applied to different surfaces, such as paper, plastic model metal film, etc. (50 μ m high temperature resistant PET film is recommended for the best experimental substrate).

Technical Data

Maximum operating temperature	200℃
The maximum coating width	200mm
the maximum width of the sheet	260mm
the maximum width of the coating	160 mm
The coating length	unlimited
Coating speed	adjustable, max coating speed: 4.5m/min, the most suitable speed is 1--2m/min,
Max capacity	150g
Minimum coating thickness	0.05mm
The maximum gap of the total coating	500 μ m(base material thickness)
the optimum coating thickness	≥ 20 μ m
coating accuracy	±5 μ m
Dimension	150×518(Containing motor 720)×658mm(LWH)
Weight	about 120kg
Power source	1 phase, AC 220V,50HZ
Rate of power	1050W
