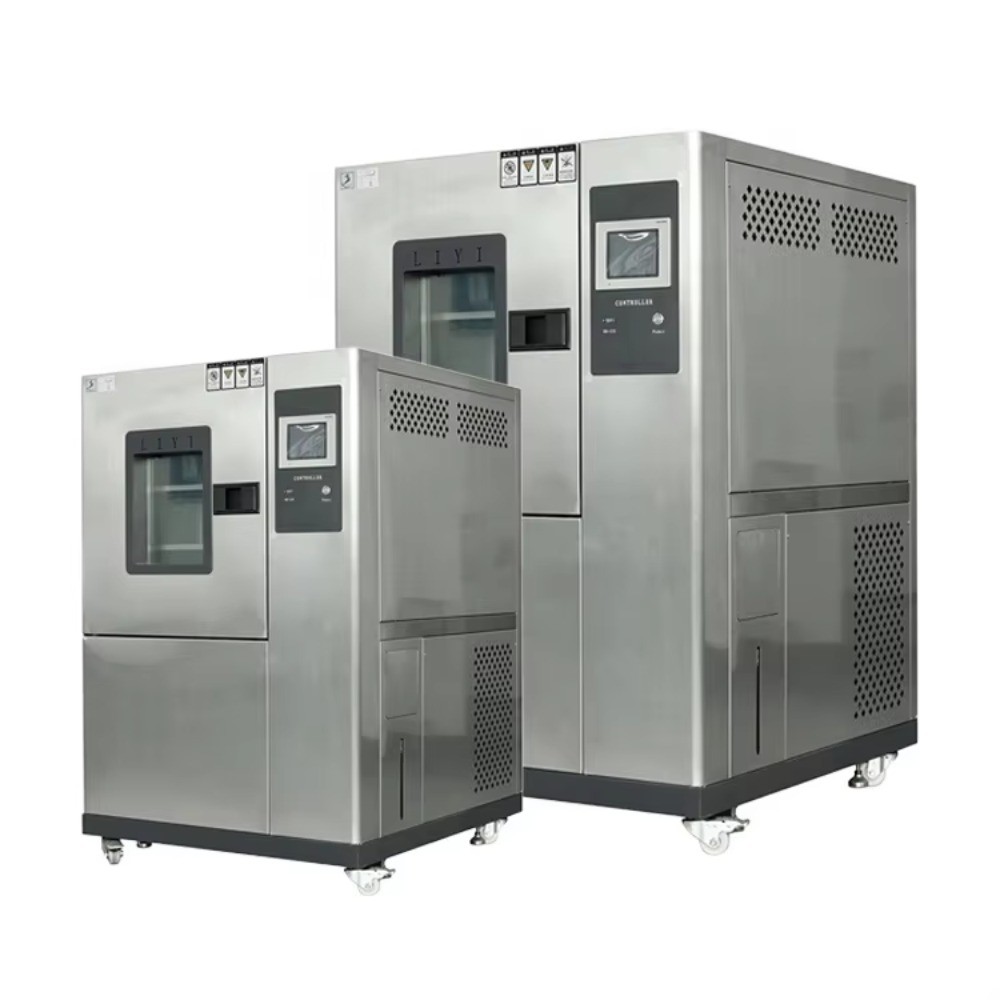

Climatic Test Chamber

Product Item : ZYEC-80
Category： Environmental Test Chamber
Environmental Test Chamber
Climatic Chamber
Lab Climate Chamber
Thermal Test Chamber
Product description：This test chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define per
INQUIRY

Product Introduction

This test chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.

Features

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature & humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature & humidity environment.

Technical Data

Model		ZYEC-80	ZYEC-150	ZYEC-225	ZYEC-408	ZYEC-800
Inner Size W×H×D(cm)		40×50×40	50×60×50	50×75×60	60×85×80	100×100×80
Outside Size W×H×D(cm)		93×155×95	100×148×106	117×166×91	140×176×101	170×186×111
Volume (V)		80 L	150L	225L	408L	800L
Temp and Hum Range		A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98%
Function	Fluctuation	±0.5°C ±2.5%RH
	Deviation	±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
	Controller Analytical Accuracy	±0.3°C ±2.5%RH
Wind Cycling Way		Centrifugal fan-broadband type forced air circulation
Refrigeration Way		Single stage compression refrigeration
Refrigerator		French Tecumseh
Refrigerants		R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way		Air-cooled or water-cooled
Water Supplying Way		Automatic cycling water supply
Standard Accessories		1 Observe window (double-deck cavity toughened glass) 1 50mm test hole in the left 1 PL inner chamber lamp 2 clapboards 1 bag of wet and dry bulb 3 fuses 1 power cable
