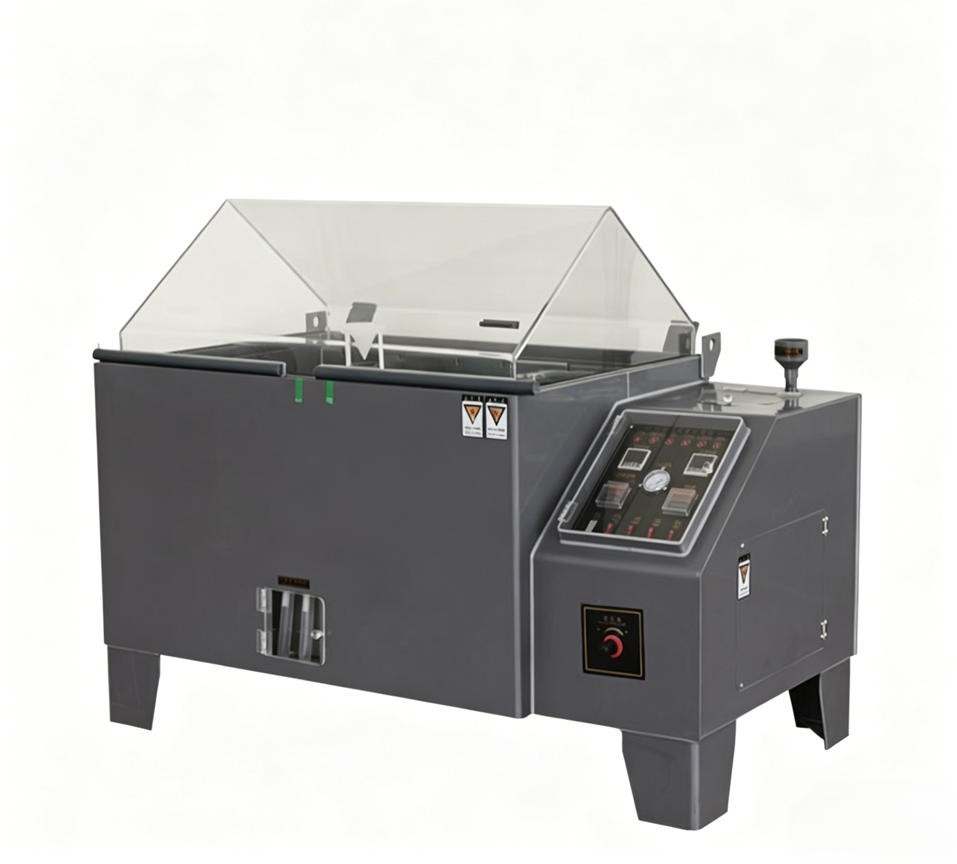

Salt Spray Test Apparatus Environment Testing Machine

Product Item : ZHIYI-SS200
Category： Environmental Test Chamber
Salt Spray Test Chamber
salt Spray Test Apparatus Environment Testing Machine
salt Fog Spray Test Chamber
Product description：Salt Spray Test Chamber salt Spray Test Apparatus Environment Testing Machine salt Fog Spray Test Chamber
INQUIRY

Product Name: Salt Spray Testing Machine

Product Model: ZHIYI-SS200

The salt spray test is used to test the corrosion resistance of various materials after surface treatments, including coatings, electroplating, inorganic and organic films, anodizing, and anti-corrosion treatments such as rust-preventive oil.

The inner and outer shells are integrally welded from PP sheets, ensuring corrosion resistance, impact resistance, easy cleaning, and zero leakage.

Standards Met:

This equipment conforms to GB10587-89 "Technical Conditions for Salt Spray Testing Machines" and can perform various salt spray tests (NSS, ACSS, CASS) according to GB2423.17-93 "Basic Test Procedures for Electrical and Electronic Products - Test Ka: Salt Spray Test Method" and other equivalent standards such as GB/T 5170, GJB150, IEC, DIN, MIL, and ASTM.

Control Method :

1. Utilizing the Bernoulli principle, salt water is drawn and then atomized, resulting in uniform atomization without clogging or crystallization, ensuring consistent testing standards.

2. Nozzle: Made of special glass, the nozzle has a service life of up to 4200 hours and allows adjustment of spray volume and angle.

3. Spray Volume: The dual spray towers are located in the test chamber, ensuring uniform mist distribution. The volume can be adjusted to 1~2 ml/80cm²•h (16-hour average).

Technical Parameter:

Test Space	2000×1000×600mm
Outer dimensions	2700×1350×1400mm
Resolution	± 0.1℃
Control accuracy	± 1.0℃
Distribution accuracy	± 2.0℃
Uniformity	≤2.0℃
volatility	± 1.0℃
Salt spray deposition	1.5±0.5ml/hr
spray method	Single-tower spray; cycle time, continuously adjustable.
Adjustable temperature in the studio	RT+5℃～65℃；（RT is ambient temperature）
Humidity range	85%~98%
How to open the lid	Dual-cylinder automatic lifting
Test methods	1. Salt spray test: NSS （1）Test space: 35℃±1℃ （2）Saturated air tank: 47℃±1℃ 2Acetate mist test：ACSS （1）Test space：35℃±1℃ （2）Saturated air tank：47℃±1℃ Add glacial acetic acid to adjust the pH of the test solution to 3.1-3.3. 3. Copper speed test：CASS （1）Test space：50℃±1℃ （2）Saturated air tank：63℃±1℃ Add glacial acetic acid to adjust the pH of the test solution to 3.1-3.3, and prepare 0.02%-0.025% copper chloride solution.

Product structure:

Test space	Imported PP sheet integral molding (8mm thick sheet, high temperature resistant and can be tested for copper acceleration).
Spray tower	The spray is a tower-type sprayer with nozzles made of fired quartz glass. The nozzle orifice is designed to be 0.7–1 mm according to national standards, resulting in fine mist particles. The salt spray is suspended and then slowly settles naturally, distributing evenly.
Sealing cap	The chamber lid is made of PP board with a transparent acrylic observation window and is 100º～120º top cover, so that the condensation water of salt spray inside the chamber will not drip directly onto the sample (the chamber lid of model 120 and above is opened/closed by a pneumatic device and does not need to be opened manually). The observation window is made of transparent acrylic and can be used to observe the test status of the sample.
heater	The nickel-chromium alloy heating wire heats from the bottom, forming a jacket preheating system, which improves the temperature uniformity inside the chamber (the jacket includes an over-temperature protection device).
pressure tank	The high-pressure resistant barrel provides optimal heat preservation. The compressed air used for spraying is filtered by an oil-water separator and then saturated with warm water before spraying, ensuring the air contains a certain level of humidity and is free of impurities. The chamber temperature remains stable and does not drift during long-term operation of the salt spray test chamber. It features a water cooling protection device with an indicator light to show the water cooling level (not automatic water replenishment).
Heating system	Air is heated using imported stainless steel finned heat pipe U-TYPE electric heaters.
Defogging	This test chamber is equipped with a rapid defogging device, which can quickly remove residual fog from the test chamber at the end of the test, effectively preventing the indirect corrosion of metal parts in the laboratory caused by residual fog when the test chamber lid is opened.
Shelf	The flat indexing frame allows for arbitrary angle adjustment, ensuring consistent fog distribution and fog reception on all four sides, and accommodating a large number of test pieces.
control system	1. The controller uses high-precision domestic and imported instruments. 2. Measurement input: Platinum resistance thermometer (Pt100); Output: SSR drive; 3. Display range: 0～100℃; Control range: RT+5℃～65℃; 4. Measurement cycle (filtering): 2～3s; 5. Control components mainly use products from joint ventures (Schneider Electric, etc.);
control Panel	◆ Laboratory temperature controller 0-99.9℃, LCD digital display with PID automatic calculation, control error ±0.3℃ (YANGMING) (Taiwan) ◆ Saturated air tank temperature controller 0-99.9℃, LCD digital display with PID automatic calculation, control error ±0.3℃ (YANGMING) (Taiwan) ◆ Heating tank liquid expansion safety temperature controller 0-120℃ (Italy c.a.e.m) ◆ Saturated air tank liquid expansion safety temperature controller 0-120℃ (Italy c.a.e.m) ◆ Digital display time controller 0.1s-9990hr (YANGMING) (Taiwan) ◆ Timer 0-9990hr (NATINL TH248) (Japan) ◆ Rocker-type illuminated latch switch, capable of 20,000 consecutive latches
