Fiber Fineness & Content Analyzer

Product Introduction

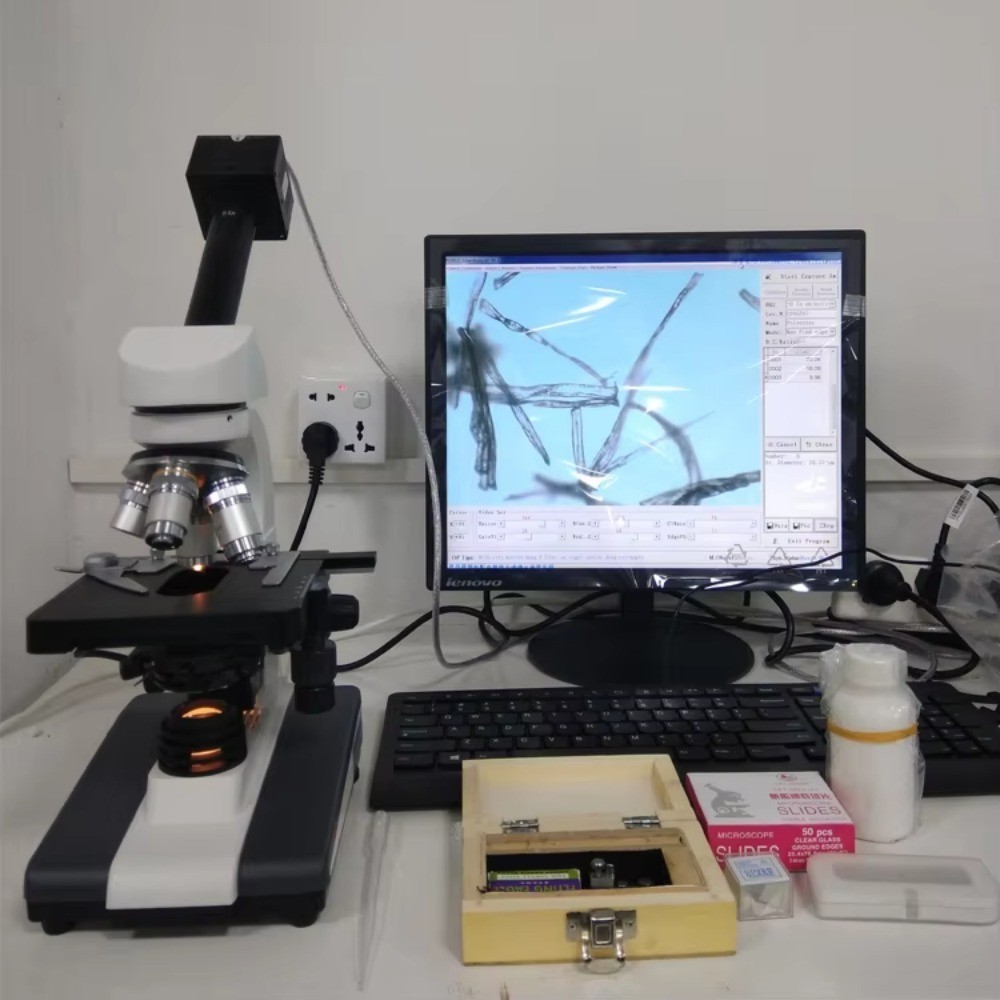

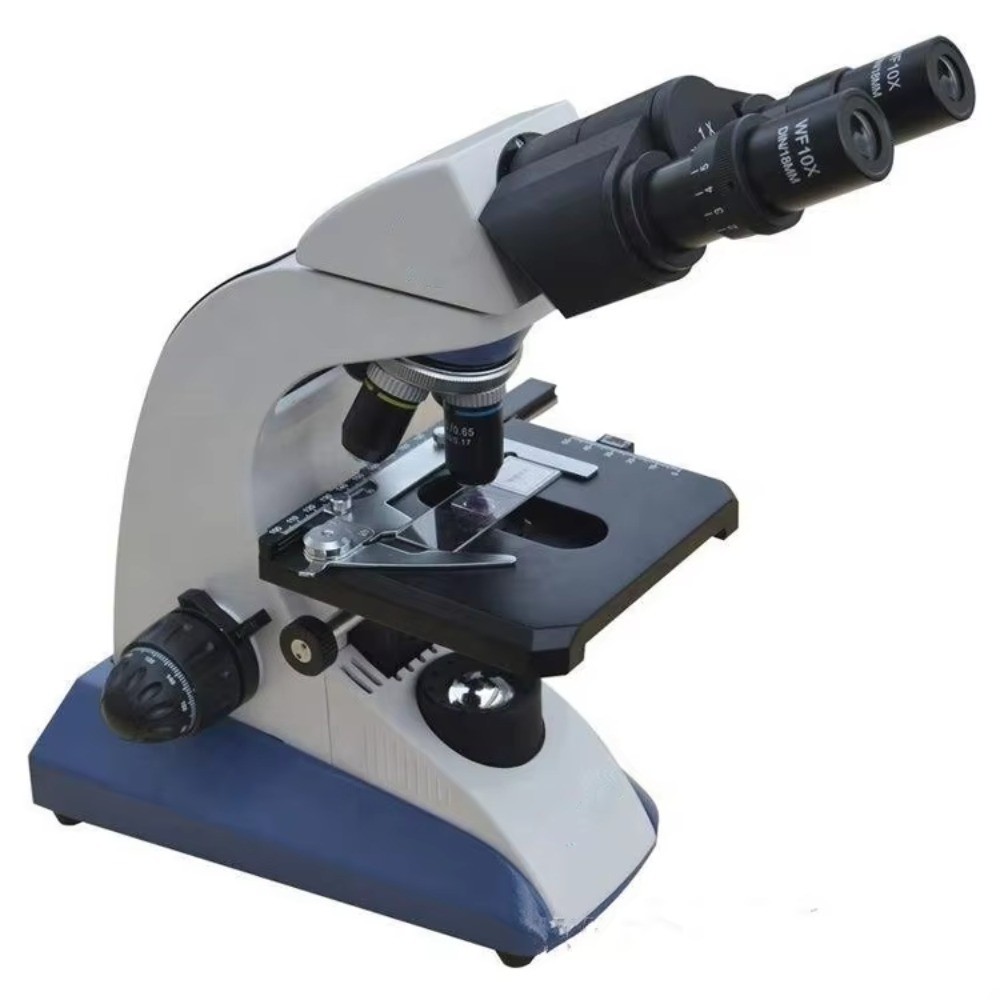

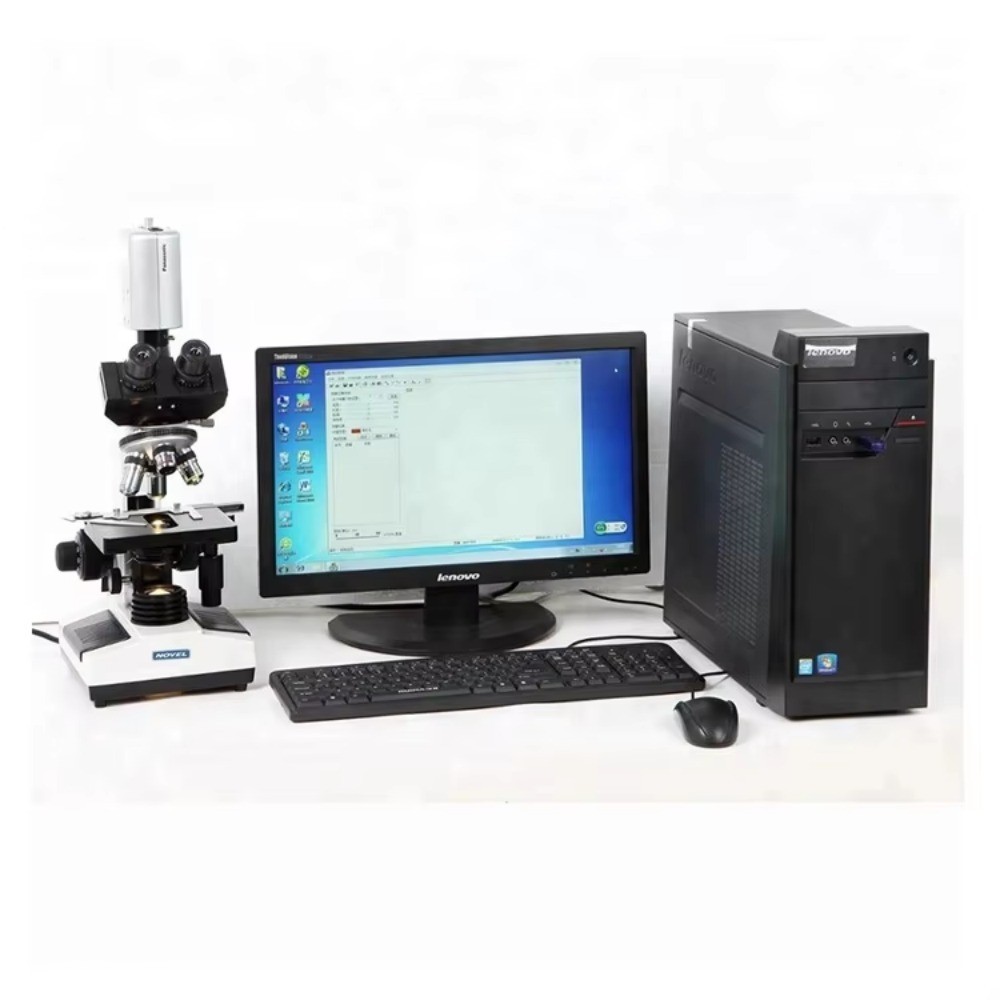

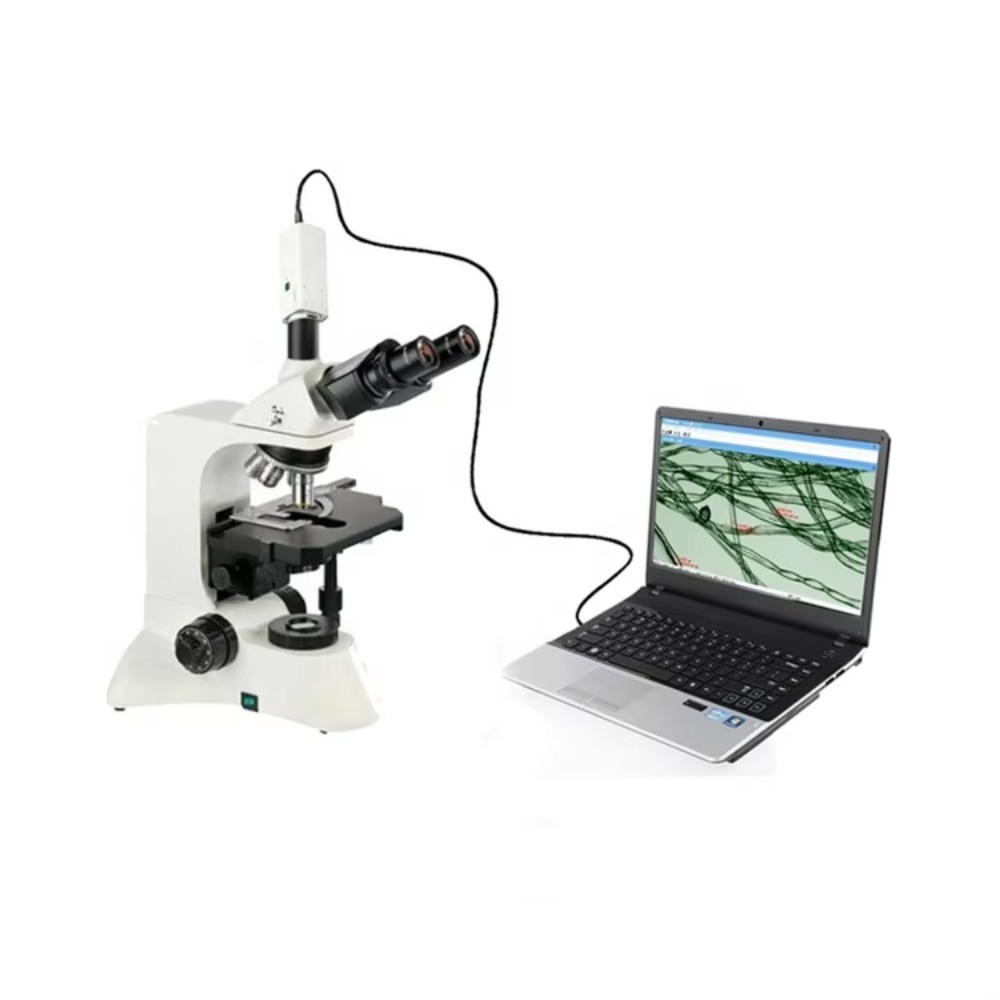

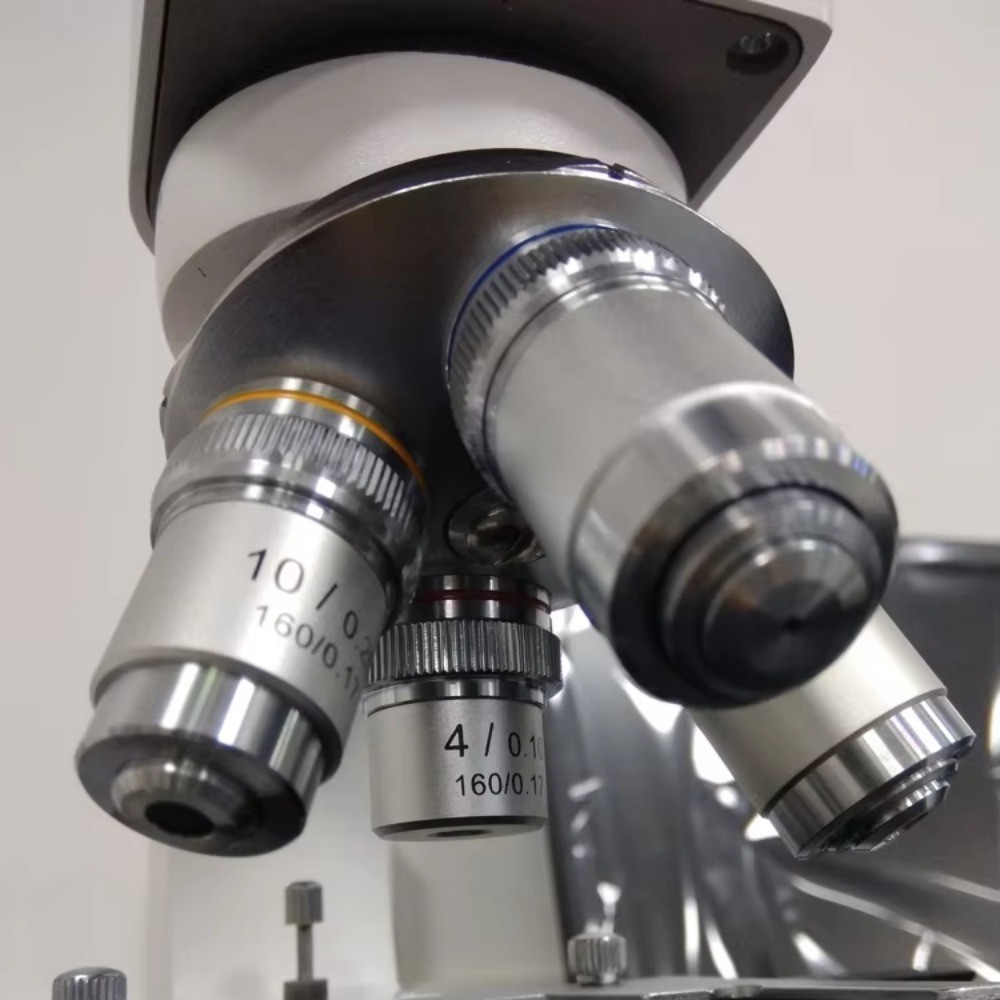

The fiber fineness analyzer a new type of human-computer interaction fiber diameter measurement analyzer. The instrument connects the optical microscope to a computer via a high-resolution industrial camera, and professional analysis software is used to complete the fiber diameter and cross-sectional area tests. It can be used to measure the fiber diameter of animal fibers such as wool and rabbit fur, as well as various natural, man-made blends. The measurement range is 2 ~ 200μm, and the accuracy is 0.1μm.

Standard

GB/T 10685 ~ 1989: Test method for determination of wool fiber diameter by projection microscope

GB/T 16988 ~ 1997: Quantitative determination of special animal fiber and wool mixtures

FZ/T30003 ~ 2000: Quantitative Analysis of Ramie-Cotton Blended Fabrics -- Micro projection

SN/T0756 ~ 1999: Method for quantitative analysis of bast/cotton blended textiles by projection microscope for import and export

AATCC 20A ~ 1995: Fiber Analysis: Quantification

Product Feature

1. The system adopts computer digital image processing technology, which is composed of computer, camera, microscope, printer and testing software. It also provides automatic fiber diameter measurement function and hotline help function;

2. It is used to observe the cross-sectional morphology of various types of animal fibers, chemical fibers, special-shaped fibers, and hollow fibers and measure the cross-sectional area;

3. Detect abnormalities in special-shaped fibers;

4. Through the analysis of the transverse morphology and area measurement of single fibers in blended products, the fiber content of various blended products can be obtained;

5. Professional analysis software, data and reports are output in EXCEL format with standard reports;

6. The operator can work without darkroom conditions, reducing the fatigue of the demonstration;

7. Improved efficiency, much larger than traditional detection speed;

8. It can print out the test record, improve the accuracy, and print the controversial sample image for reference;

9. Dark fiber, no need to peel off the color to improve the detection effect;

10. Equipped with English software, cross-section software and cotton and linen software.

Technical Data
