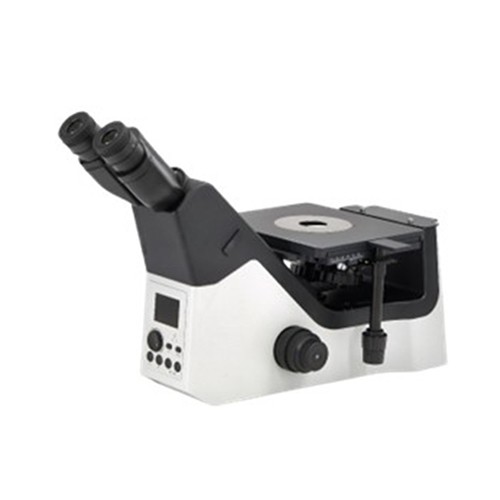

Inverted Metallurgical Trinocular Microscope

Product Item : ZY-MM5200
Category： Metal Testing Instrument
Microscope
Metallurgical Microscope
Inverted Metallurgical Microscope
Trinocular Metallurgical Microscope
Product description：ZY-MM 5200 is an intelligent inverted metallographic microscope with modular design. It adopts a newly designed infinity chromatic aberration correction optical system and infinity long working distan
INQUIRY

Inverted Metallurgical Microscope ZY-MM5200 Introduction

ZY-MM 5200 is an intelligent inverted metallographic microscope with modular design. It adopts a newly designed infinity chromatic aberration correction optical system and infinity long working distance plan-field bright and dark field achromatic professional metallographic objective lens. It comprehensively covers a variety of observation methods such as bright field, dark field, simple polarization, differential interference, etc. It is suitable for a variety of research needs and can be widely used in casting, smelting, heat treatment, circuit board and semiconductor research, raw material inspection or material analysis and other tests.

Inverted Metallurgical Microscope ZY-MM5200 Advantages

Comfortable and Simple Operation Mode

In order to meet the user's long-term observation needs, ZY-MM 5200 uses a low hand position operation mode. During the focusing process, the user can completely put the elbow on the workbench, without worrying about the pain caused by long-term elbow suspension operation. It is equipped with a high eye point 360° rotating binocular observation tube, which fully conforms to the ergonomic observation mode.

Stable and Considerate Appearance Design

The ZY-MM 5200 body is made of all-metal casting, and the surface is treated with anti-corrosion and wear-resistant technology. It is quality-assured and solid. Make full use of the built-in space of the body to place the instrument disassembly tools, which are commonly used to disassemble the main parts of the instrument. It is pragmatic and convenient to store.

The rear of the body is equipped with a carrying device, so you can move the instrument easily and safely; make full use of the built-in space of the body to place the instrument disassembly tools, which are commonly used to disassemble the main parts of the instrument. It is pragmatic and convenient to store.

Infinity long working distance flat field bright and dark field achromatic metallographic objective lens

Bright and dark field objective lens can realize bright field, dark field, polarization, and micro-powder interference observation

Strictly select high-transmittance lenses and advanced coating technology to truly restore the natural color of the sample

Semi-apochromatic design, with excellent chromatic aberration correction performance, improves the contrast and clarity of the observed image

Front magnification display function : The front objective magnification display function displays the current magnification in front of the instrument through the built-in magnification sensor, making research work more convenient.

Unique industrial camera connection position

The industrial camera is connected to the left side of the microscope, which does not affect the placement of the sample.

Meet Various Observation Methods

Comprehensively covers a variety of observation methods such as bright field, dark field, simple polarization, differential interference, etc., to meet various research needs.

High contrast dark field observation. Make full use of the aperture angle of the objective lens to clearly observe impurities and subtle defects in the metallographic structure.

PCB slice dark field

Simple polarized light observation. The 360° rotating analyzer can be used to conveniently observe the state of the specimen under different polarized light angles without moving the specimen.

Simple Polarization of Metallographic Structure

DIC differential interference observation. The differential interference component configured in ZY-MM5200 can show the height difference that cannot be detected in the bright field in the form of relief. It is suitable for detecting height differences and tiny samples, including metallographic structure, minerals and wafer surface, etc.

Inverted Metallurgical Microscope ZY-MM5200 Technical Data

Objective lens Infinity long working distance plan field bright field dark field achromatic professional metallographic objective lens	Lens	Numerical aperture (N.A.)	Work Distance (W.D.)	Cover glass thickness	Conjugate distance (mm)
	5X	0.15	19.0mm	0	∞	●
	10X	0.3	13.0mm	0	∞	●
	20X	0.45	11mm	0	∞	●
	50X	0.55	11mm	0	∞	●
	100X	0.8	3mm	0	∞	○
Nosepiece	5-hole coded bright and dark field objective lens changer (with DIC slot), The coded objective lens changer integrates the hardware settings of the microscope with the image analysis software of the MEG Instruments. The magnification of the objective lens is displayed on the screen, and the calibration value recorded in the software can be automatically adjusted when the magnification is switched, eliminating measurement errors caused by forgetting to switch the software magnification.					●
Frame	With bright and dark field switching device, with polarizing device slot, with LCD screen display light source brightness and objective lens magnification display function					●
Stage	Double-layer mechanical moving platform, coaxial adjustment in X and Y directions at low hand position, dual-purpose glass stage					●
Lighting System	Adaptive wide voltage 100V-240V_AC50/60Hz, reflector lamp house, single high-power 10W LED, warm color, Kohler lighting, with field diaphragm and aperture diaphragm, center adjustable					●
Focusing system	Low hand position coarse and fine adjustment coaxial, coarse adjustment stroke 9mm, focus plane upward 6.5mm, downward 2.5mm, fine adjustment accuracy 0.002mm, with tension adjustment hand wheel to prevent slipping					●
Differential Interference	DIC- Differential Interference Components					○
Color Filters	blue/green/yellow					○
Polarized accessories	The analyzer can rotate 360 degrees, and both the polarizer and analyzer can be moved out of the light path					○
Power	Adaptive voltage 90-240V					●
Photography and Videography	Trinocular synchronous optical output, standard C-mount, photography and video accessories: 0.7X C-mount, adjustable focus, multiple cameras available: 5MP/USB2.0 camera, 6.3MP/USB3.0 camera, 12MP/USB3.0 camera, 20MP/USB3.0 camera directly connected to computer to collect images, no acquisition card required.					○
Measurement software	Professional image processing and measurement software. This software not only provides basic camera functions such as simple video preview, image acquisition, camera parameter adjustment, video recording, playback, etc., but also provides a complete measurement mechanism that can accurately measure the size of various tiny objects. For example, measuring the diameter and area of printed dots, measuring the cross-sectional area of cells, etc. In addition, it also provides automatic counting function, image stitching function, image fusion function, etc. It also supports exporting data to Excel and Word. Powerful functions and user-friendly interface design.					○
Metallographic magnification comparison system	Functions of magnification, annotation and atlas comparison, with more than 400 metallographic atlases built in, and Word documents directly used as templates for easy report generation					○
Metallographic Image Analysis System	Determination of magnification, annotation, comparison of graphs, quantitative analysis, organization rating, etc., determination of various geometric forms such as area, circumference and roundness, built-in latest metallographic graphs, 17 analysis and rating modules such as ductile iron and gray iron					○
Warranty	1 year for whole instrument					●
Accessories/Spare Parts						●
● Standard Accessories ○Optional Accessories
