Metallographic Grinding and Polishing Machine

Product Item : ZYGP-1020
Category： Metal Testing Instrument
Metallographic Grinding and Polishing Machine
Grinding and Polishing Machine
Product description：In the metallographic sample preparation process, the grinding and polishing of the sample are indispensable procedures. After the sample is polished, a mirror-like surface can be obtained. The ZYGP-1
INQUIRY

Product Introduction

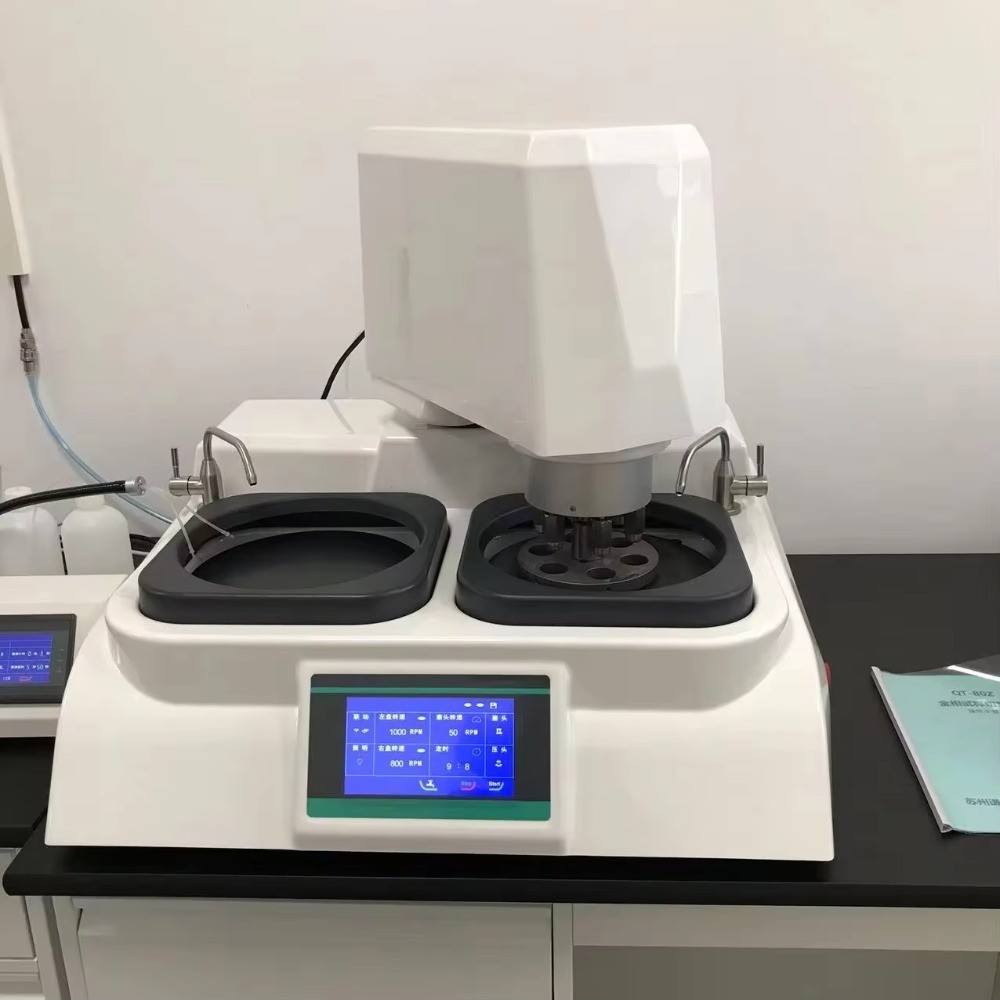

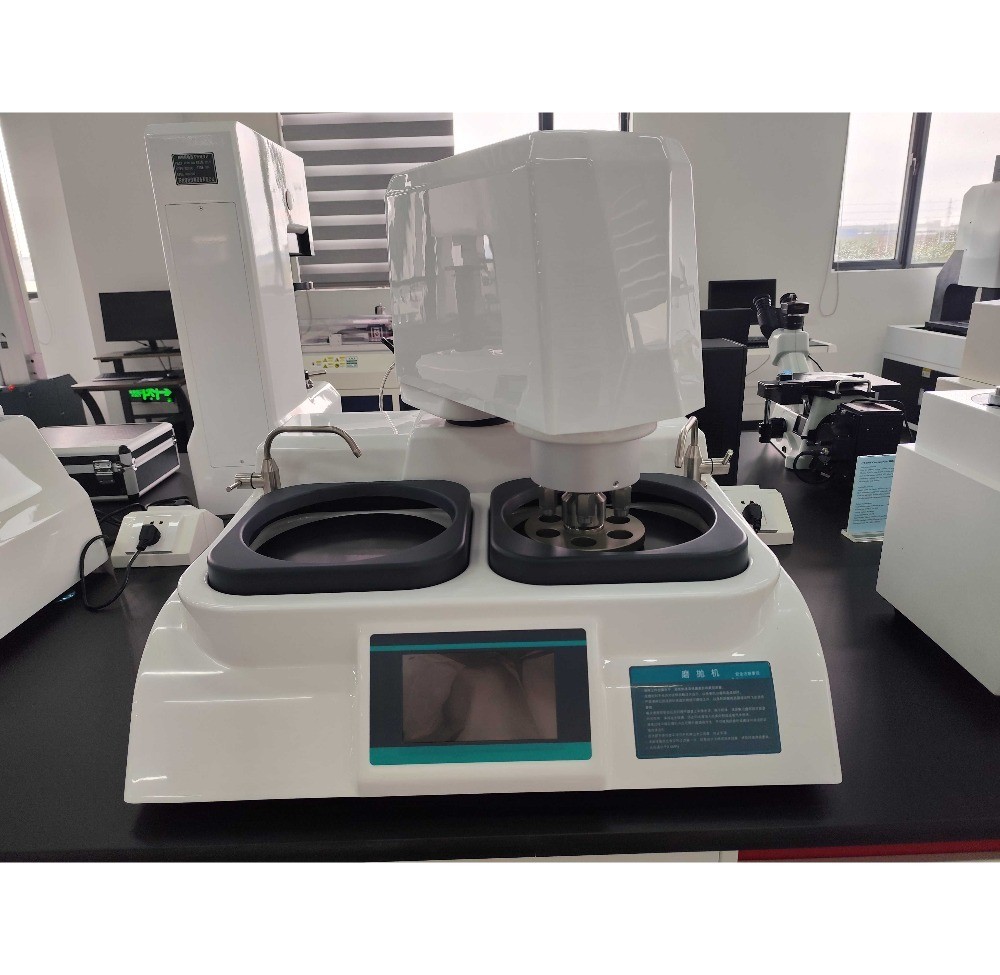

In the metallographic sample preparation process, the grinding and polishing of the sample are indispensable procedures. After the sample is polished, a mirror-like surface can be obtained. The ZYGP-1020 metallographic sample grinding and polishing machine adopts a double-disc design. The left disc is a grinding disc and the right disc is a polishing disc. It satisfies the requirements of the two processes of grinding and polishing at the same time. It can be operated by two people at the same time. The shell is made of integral ABS plastic, with novel appearance, stable rotation, low noise, convenient operation, and high work efficiency. It also has a cooling device that can cool the sample during grinding and polishing to prevent the sample from overheating. Destroy metallographic organization. It is suitable for the metallographic laboratory of factories, universities and research institutes. It is an excellent equipment for grinding and polishing metallographic samples.

Features

1. The shell is made of high-end ABS, which has a novel appearance and high-end atmosphere.

2. The faucet adopts all-copper chromium plating process, which has good corrosion resistance

3. The dual-disc and dual-speed are convenient and quick to meet most of the needs of grinding and polishing work

4. The double-disc design makes the sample preparation efficiency doubled instantly and more efficiently

Technical Data

Number of grinding discs	2
Diameter of the grinding and polishing disc	254 mm
The rotational speed of the grinding and polishing plate	Stepless speed regulation 100-1000 rpm, four-speed speed regulation 300 500 800 1000 rpm
The direction of rotation of the grinding and polishing disc	Forward and backward in both directions
Grinding disc motor power	2.2 kW
Grinding and polishing disc control	Dual disk dual control
The direction of rotation of the grinding head	clockwise
The speed of the grinding head	0-120 rpm
grinding head motor	Stepper motor 200W
Grinding head locking method	Manual (optional automatic)
Timer and adjustable time	0-99 minutes
Pressurization method	Single-point pneumatic pressure
pressurized pressure	0-0.5Mpa (typically 0.2-0.3Mpa)
Number of sample clips	6
Clamp sample thickness	8-22 mm (customizable)
