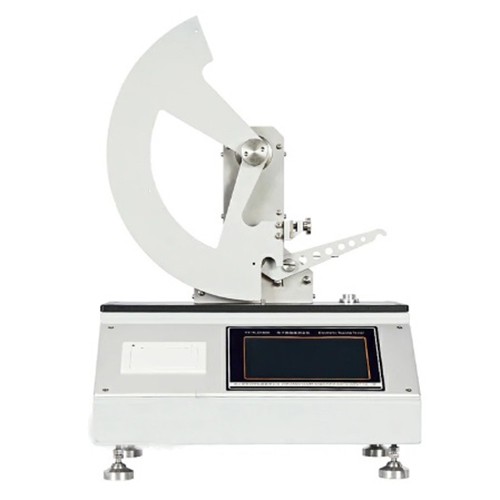

Electronic Tearing Tester

Product Item : ETT-100
Category： Paper, Packaging & Print
Tearing Tester
paper Tearing Tester
cardboard tearing tester
cartong box tearing tester
Product description：Electronic Tearing Tester is an intelligent testing instrument used to test the tearing properties of thin sheets such as paper and cardboard. It is widely used in colleges and universities, scientifi
INQUIRY

Electronic Tearing Tester is an intelligent testing instrument used to test the tearing properties of thin sheets such as paper and cardboard. It is widely used in colleges and universities, scientific research institutions, quality inspection departments, and paper printing and packaging production departments for testing paper materials.

Electronic Tearing Tester Application

Paper,paper jam,cardboard, cardboard, carton, color box, shoe box, paper tray, film, cloth, leather, etc

Electronic Tearing Tester Product Feature

● Automatic release of pendulum, high test efficiency.

● English operation, intuitive and convenient to use.

● Data saving function in case of sudden power failure, data before power failure is retained after booting up and test can be continued.

● Test data supports USB export.

● Both the system and screen software support upgrade via network or USB flash drive.

● Support multiple communication methods, online software (purchased separately) can communicate via WIFI or USB.

● Test data supports uploading to cloud server, cooperate with QMS paper quality management system (purchased separately), real-time monitoring of paper product inspection data.

Electronic Tearing Tester Product Standard

GB/T 455，QB/T 1050，ISO 1974，JIS P8116，TAPPI T414

Electronic Tearing Tester Technical Data

No.	Parameter Item	Technical indicators
1	Power supply	AC(100～240)V, 50Hz/60Hz，50W
2	Working environment	Temperature(10～35)℃, relative humidity ≤ 85%
3	Display	7-inch IPS high-definition screen, 1024*600 resolution capacitive touch
4	Measuring range	A gear:(50～8000mN)，B gear:(8000～16000mN)
5	Resolution	0.1mN
6	Indication error	±1％
7	Repeatability	≤1％
8	Tear force arm	(104±1)mm
9	Tear initial angle clamp	27.5°±0.5°
10	Distance between paper clamps	(2.8±0.3)mm
11	Specimen cut length	(20±0.5)mm
12	Data storage	50 test data
13	Data export	Export data to USB flash drive
14	Print	Built-in thermal printer
15	Communication interface	USB、WIFI（2.4G）
16	Dimensions	415×310×600 mm
17	Net weight	19.5kg
