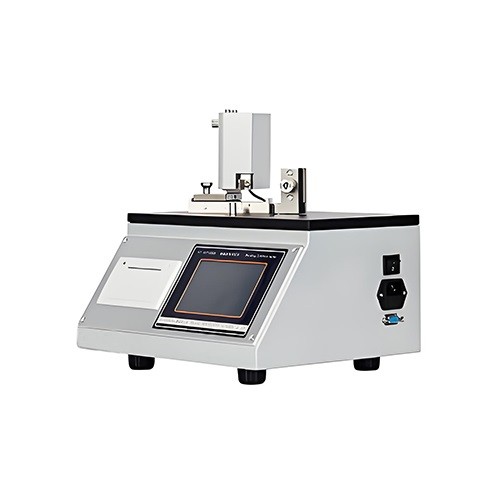

Bending Stiffness Tester

Bending Stiffness Tester Features

● ARM processor improves the response speed of the instrument, and calculates data accurately and quickly

● 7.5° and 15° stiffness test （arbitrary setting between 1 and 90°）

● The change of test angle is automatically controlled by the motor to improve the test eﬃciency

● Adjustable test time

● Automatic reset, overload protection

● The instrument is equipped with a standard RS232 interface, which can be used with PC software for communication (optional)

Bending Stiffness Tester Standards

GB/T 23144，GB/T 22364，ISO 5628，ISO 2493

Bending Stiffness Tester Technical Data

No.	Parameter	Technical Data
1	Power Supply	AC(100～240)V，(50/60)Hz 50W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Measuring range	15～10000 mN
4	Indicating Accuracy	≤50mN±0.6mN, others±1%
5	Resolution	0.1mN
6	Indication Variation Accuracy	±1％(Range 5%～100%)
7	Bending length	（50/25/20/15/10/5）±0.1mm
8	Bending angle	7.5±0.3°or 15±0.3°
9	Bending speed	5±0.1°/s（1~100°/s adjustable）
10	Print	Built-in thermal printer
11	Communication Interface	RS232
12	Dimension	310×250×295 mm
13	Net Weight	12kg
