UV Sunlight Aging Tester

Category： Products
Product description：The chamber utilizes a xenon arc lamp capable of simulating the full solar spectrum to reproduce the destructive light waves found in various environments.
INQUIRY

Product Introduction

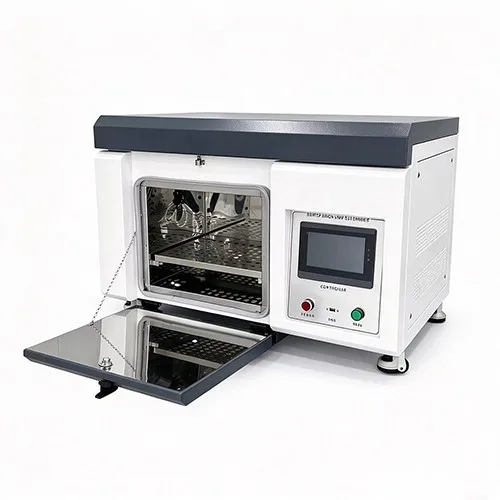

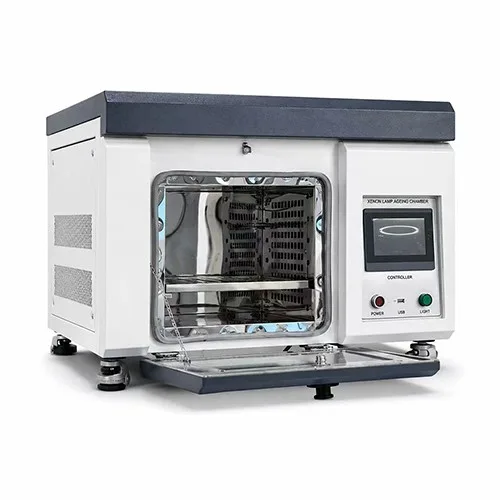

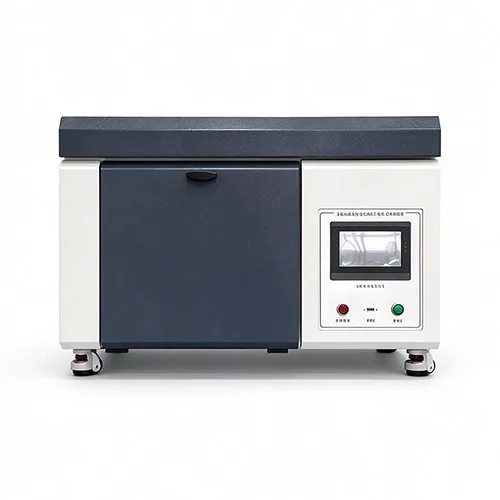

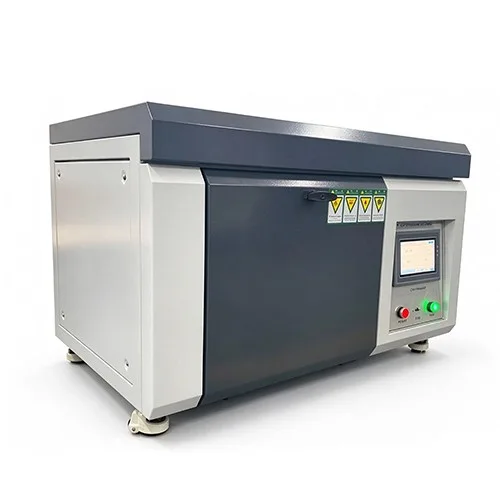

The xenon lamp test chamber utilizes a xenon arc lamp capable of simulating the full solar spectrum to reproduce the destructive light waves found in various environments, thereby providing the necessary environmental simulation and accelerated testing for scientific research, product development, and quality control. These chambers are suitable for selecting new materials, improving existing ones, or assessing changes in durability resulting from alterations in material composition; they effectively simulate the changes materials undergo when exposed to sunlight under diverse environmental conditions.

Product Features

1. Full-spectrum xenon lamp.

2. Air temperature control system for the test chamber.

3. Xenon arc lamp.

4. Designed for easy installation and convenient use, requiring virtually no routine maintenance.

5. The service life of the xenon arc lamp depends on the irradiance level used; the typical lifespan is 1,600 hours. Lamp replacement is quick and easy, while long-lasting filters ensure the required spectral output is maintained.

6. Utilizes SSR (Solid State Relay) output control, offering advantages such as noiseless operation, high reliability, long service life, strong anti-interference capability, fast switching speeds, minimal external interference, and ease of use;

Technical Data

Item	Specification
Working Chamber Dimension (W×D×H)	W400 × D320 × H300 mm
Overall Dimension (W×D×H)	Approx. 1000 × 500 × 600 mm
Temperature Range	60–90°C, adjustable
Temperature Deviation	±2°C (without light irradiation)
Light Source Type	Air-cooled full solar-spectrum long-arc xenon lamp (average service life: approx. 1,600 hours)
Spectral Wavelength	290 nm – 800 nm
Xenon Lamp Power	1.8 kW (service life: approx. 1,600 hours), equipped with irradiance probe
Heating Power	Approx. 4 kW
Irradiance (Spectral)	Option 1. 290 nm – 800 nm: 300–550 W/m² (Switchable at 340 nm: 0.3–0.6 W/m²) Option 2. 420 nm: 0.4–1.0 W/m² Option 3. 300 nm – 400 nm: 20–60 W/m² Choose one band of above before ordering. (One more kinds of band can be custom made)
Black Panel Temperature	60–110°C
Total Power & Power Supply	Approx. 4 kW; 380V ±10%, 50 Hz
Test Chamber Working Environment	a. Ambient temperature: 5°C to +32°C; b. Ambient humidity: ≤85%
Power Supply	Approx. 4 kW; 380 V ±10%, 50 Hz

Note: All above technical parameters are measured under the following conditions: ambient temperature ≤26°C, relative humidity ≤85% R.H., working chamber empty (no load), and after the temperature has been stabilized for 2 hours.

Temperature Operation and Control System

Item	Description
Controller	Programmable 7-inch full-touch screen
Accuracy Range	Setting accuracy: ±0.1°C; Indication accuracy: ±0.1°C
Temperature Sensor	Platinum resistance (Pt100Ω)
Black Panel Temperature	Bimetallic black panel thermometer
Control System	Composed primarily of an operation panel, central controller, various switches, status indicator lights, and actuating electrical components

Chamber Structure

The xenon lamp weathering test chamber consists of the following components: the test chamber body, control system, heating system, lighting system, etc.

Test Chamber Body:

1. The inner walls of the chamber are constructed from internationally standard SUS304 stainless steel.

2. The insulation layer utilizes a combination of polyurethane foam and ultrafine glass fiber, ensuring excellent thermal insulation; the exterior surface remains free of frost and condensation.

3. The door frame is fitted with eco-friendly silicone rubber seals capable of withstanding high temperatures over the long term.

Outer Chamber Body

1. The outer casing is fabricated using CNC machining; it is made of high-quality cold-rolled steel plate, with the surface finished via pickling, phosphating, and electrostatic powder coating.

Door and Latch

1. The door seal utilizes a double-layer refined silicone rubber design, preventing aging or hardening under high-temperature conditions and ensuring superior sealing reliability.

2. The chamber features a single-door design equipped with a non-rebound handle.

Illumination system

1. The illumination system primarily consists of a xenon lamp, a lamp housing, a xenon lamp igniter, and various control devices. Xenon lamp energy compensation is achieved by adjusting the sample holder distance and regulating voltage and current.
