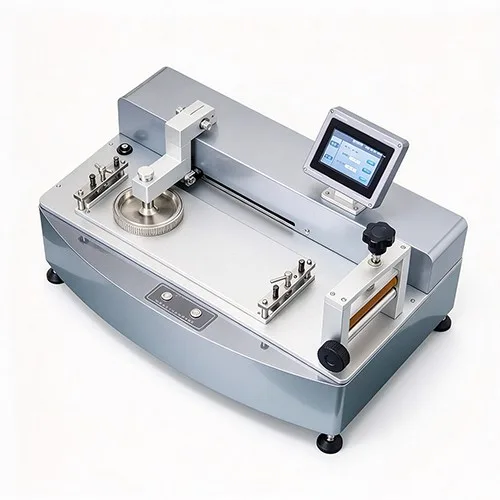

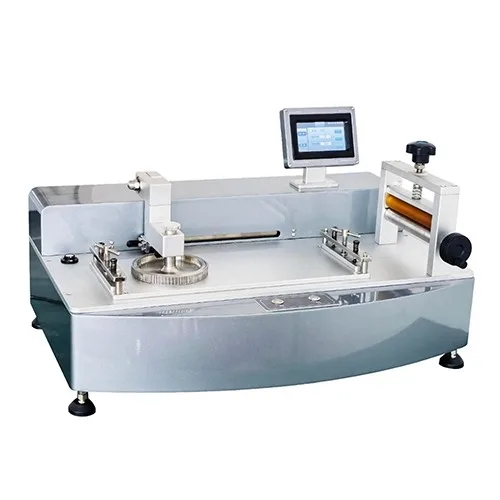

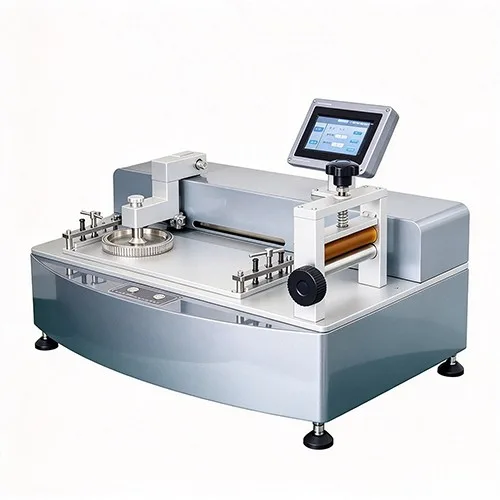

Fiber Shedding Tester Textile Shedding Testing Machine

Product Item : ZY-503
Category： Textile Testing Equipment
Product description：Fiber Shedding Tester Textile Shedding Testing Machine is designed to evaluate the fiber shedding characteristics of various fabrics.
INQUIRY

Product Introduction

It is designed to evaluate the fiber shedding characteristics of various fabrics.

Standards

GB/T 40270-2021, AATCC 135, AATCC 93, ASTM D4685

Product Features

1. Large color touchscreen interface with bilingual (Chinese/English) operating system;

2. Sliding drive mechanism utilizes imported linear sliders for smooth operation;

3. Quiet drive motor equipped with a speed controller for low-noise operation;

4. Core data processing powered by an STMicroelectronics 32-bit multifunctional motherboard;

5. Sliding drive mechanism utilizes imported linear sliders for smooth operation;

6. Equipped with high-quality 304 stainless steel specimen clamps and weights;

7. Audible alert upon test completion;

8. Equipped with a precision leveling device;

9. Robust desktop design for stability and easy portability.

Technical Data

No.	Item	Specification
1	Test method	Rubbing method (reciprocating motion)
2	Rubbing head diameter	90 ± 0.1 mm
3	Rubbing stroke	200 mm
4	Rubbing load	595 g ± 1 g
5	Rubbing speed	30 cycles/min
6	Specimen dimensions	420 mm × 130 mm
7	Power supply	AC 220 V, 50 Hz
8	Dimensions (L × W × H)	600 mm × 400 mm × 350 mm
9	Weight	Approx. 45 kg

Packing List for Standard Accessories
