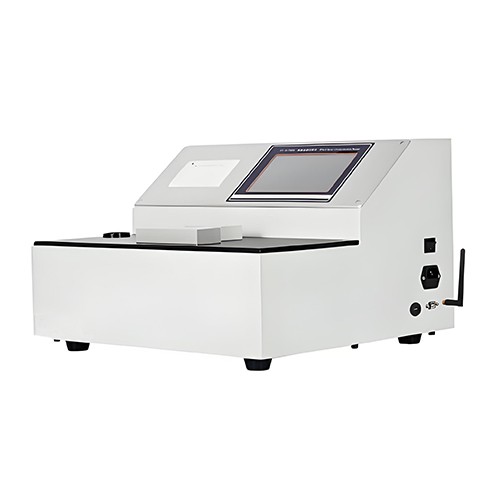

Short Span Compression Tester

Product Item : SCT500
Category： Products
Short Span Compression Tester
Compression Tester
Product description：Short Span Compression Tester is used for paper and board used in the manufacture of cartons and boxes, and are also suitable for laboratory-prepared paper sheets for pulp testing.
INQUIRY

Short Span Compression Tester is used for paper and board used in the manufacture of cartons and boxes, and are also suitable for laboratory-prepared paper sheets for pulp testing.

Short Span Compression Tester Features

● Dual cylinder, pneumatic clamping specimen, reliable guarantee of parameters specified in the standard.

● 24-bit precision analog-to-digital converter, Cotex-M4 ARM processor, fast and accurate sampling.

● Adopting stepper motor drive, the speed is accurate and stable, and it can return quickly to improve the test efficiency.

● Sudden power failure data saving function, the data before power failure is retained after booting and the test can be continued.

● Real-time force-displacement curve is displayed during the test, which is convenient for users to observe the test process.

● Test data supports USB export.

● The system and screen software can be upgraded through the network or USB.

● Support multiple communication methods, and the online software (purchased separately) can communicate through WIFI or USB.

● Test data supports uploading to the cloud server, and cooperates with the QMS paper quality management system (purchased separately) to monitor paper product inspection data in real time.

Short Span Compression Tester Standards

ISO 9895 & GB/T 2679·10

Short Span Compression Tester Technical Data

No.	Parameter	Technical Data
1	Power supply	AC(100～240)V，(50/60)Hz，50W
2	Working environment	Temperature (10 ~ 35)℃, relative humidity ≤ 85%
3	Display	7-inch IPS high-definition screen, 1024 * 600 resolution capacitive touch
4	Measuring range	(10～500)N
5	Sample clamping force	(2300 ± 500)N (recommended gauge pressure 0.5MPa)
6	Resolution	0.1N
7	Indication error	±1％(Range 5%～100%)
8	Repeatability	≤1%
9	Sample clamp free spacing	0.70 ± 0.05 mm
10	Test speed	(3±1)mm/min (relative movement speed of two fixtures)
11	Sample clamping surface size	30×15 mm
12	Data storage	50 test data
13	Data export	Export data to USB flash drive
14	Print	Built-in thermal printer
15	Communication interface	USB、WIFI(2.4G)
16	Air source	≥0.5MPa
17	Dimensions	500×430×305 mm
18	Net weight	34kg
