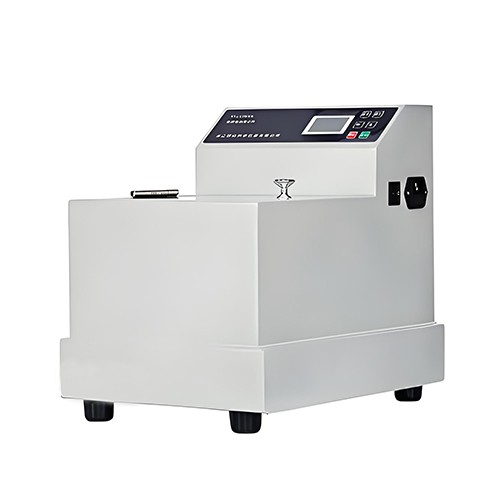

Digital Centrifugal Dryer is designed and manufactured by our company for the rapid dehydration of various pulps in laboratories. It is the most widely used centrifuge in the super absorbent resin industry. It is also widely used in paper making, textile, printing and dyeing and other industries, and is an indispensable auxiliary device in their production sites and laboratories.
Digital Centrifugal Dryer Application
● Paper making, textile, printing and dyeing industries
● Pulp dehydration
● Polymer absorbent resin, polymer materials
Digital Centrifugal Dryer Product Features
● Low vibration, low noise, high dehydration efficiency
● All stainless steel material, not easy to corrode
● ARM processor, 128×64 graphic dot matrix liquid crystal display, Chinese display and easy operation
● Real-time display of speed and centrifugal force
● Closed loop AC motor speed control technology, convenient speed control and stable speed
Digital Centrifugal Dryer Technical Data
No. |
Parameter |
Technical Data |
1 |
Power supply |
AC(220±10%)V, 50Hz,60W |
2 |
Working environment |
Temperature (10 ~ 35) ℃, relative humidity ≤ 85% |
3 |
Maximum capacity |
400ml,800ml |
4 |
Speed range |
(1500~2800)rpm adjustable |
5 |
Speed accuracy |
1500 ~ 2700 ± 5 rpm 2800 ± 30 rpm |
6 |
Inner cylinder diameter |
100mm,130mm |
7 |
Time setting range |
(1~99)min |
8 |
Dimensions |
350×265×320 mm |
9 |
Net weight |
13.5kg |
