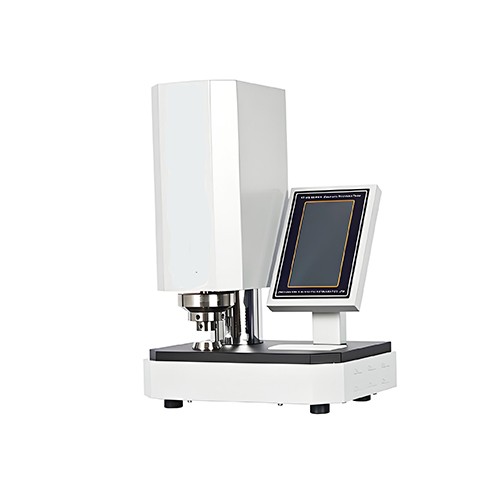

Electronic Paper Thickness Tester

Product Item : ZY-H5
Category： Paper, Packaging & Print
paper thickness tester
thickness tester
Electronic Paper Thickness Tester
Product description：Paper Electronic Thickness Tester is used to measure the thickness of paper and other sheet materials for various types of paper.
INQUIRY

Paper Electronic Thickness Tester is used to measure the thickness of paper and other sheet materials for various types of paper.

Paper Electronic Thickness Tester Features

● One-click test, easy to understand

● Cotex-M4 ARM processor improves the response speed of the instrument and makes calculations accurate and fast.

● The rising and falling speed of the probe is adjustable.

● Sudden power failure data saving function, the data before power failure is retained after restarting and the test can be continued.

● Automatically measure, count and print test results

● Test data can be exported to USB disk.

● Both the system and screen software can be upgraded via the network or USB flash drive.

● Support multiple communication methods, and the online software (purchased separately) can communicate via WIFI or USB.

● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor paper test data in real time.

Paper Electronic Thickness Tester Standards

GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534

Paper Electronic Thickness Tester Technical Data

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz ,50W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Display	7 inch color touch screen,1024 x 600 resolution
4	Measuring range	(0 -4)mm
5	Resolution	0.001mm
6	Indication error	±0.0025mm or ±0.5％
7	Repeatability	≤0.0025mm or ≤0.5％
8	Parallelism between measuring surfaces	≤0.005mm
9	Contact area	(200±5) mm²
10	Contact pressure	(100±10)kPa
11	Probe descent speed	(0.5 ~ 10) mm/s adjustable
12	Data storage	50 test data
13	Data export	Export data to USB flash drive
14	Print	Built-in thermal printer
15	Communication Interface	USB、WIFI（2.4G）
16	Dimensions	365×255×440 mm
17	Net Weight	24kg
