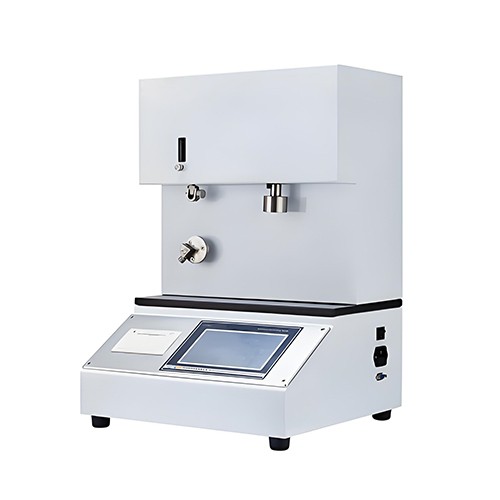

Aluminum Foil Folding Tester

Product Item : FT-100
Category： Paper, Packaging & Print
Folding Tester
Aluminum Foil Folding Tester
Aluminum Folding Tester
Product description：It is designed to testing the folding ability for cathode foil, low voltage anode foil, medium and high voltage unformed foil, medium and high voltage formed foil.
INQUIRY

It is designed to testing the folding ability for cathode foil, low voltage anode foil, medium and high voltage unformed foil, medium and high voltage formed foil.

Aluminum Foil Folding Tester Product Feature

● Using high-performance servo motor, the rotation angle and folding speed are accurate and stable.

● The innovative integrated molding processing technology of the fixture, the left and right fixtures have good symmetry and are more durable.

● It adopts ARM processor, 7-inch color touch screen, precise control and easy operation.

● Automatic measurement, intelligent judgment function, statistics, printing test results, and data storage function.

● It can communicate with computer software (purchased separately).

Aluminum Foil Folding Tester Technical Data

No.	Parameter item	Technical index
1	Power Supply	AC(100～240)V，(50/60)Hz，100W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Measuring range	0-99999times
4	Folding angle	（90±2）°
5	Folding speed	1-24 times/sec (continuously adjustable) (standard 6 times/sec）
6	Fold radius	R0.5±0.05mm，R1.0±0.1mm，R3.5±0.35mm(All optional）
7	Load weight	（2.5±0.05）N，（255±5）gf
8	Folding head gap	0.25mm（Standard）【0.50mm，0.75mm，1.00mm(All optional)】
9	Print	Built-in thermal printer
10	Communication Interface	RS232(Default) (USB, WIFI optional)
11	Dimension	360×255×500 mm
12	Net Weight	20kg around
