Folding Endurance Tester

Product Item : FT-200
Category： Paper, Packaging & Print

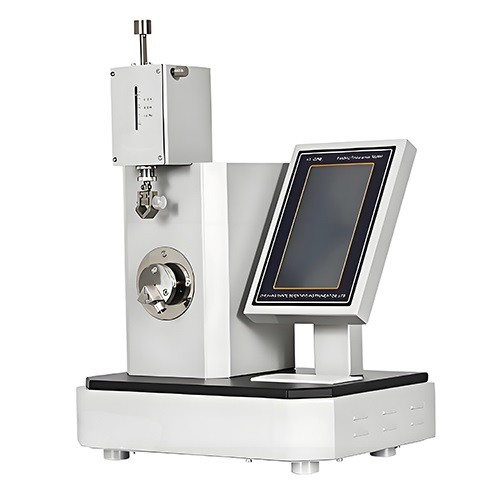

Folding Endurance Tester
paper Folding Endurance Tester
cardboard folding tester
Product description：Folding endurance tester is designed to test the endurance of the paper, cardboard, glass fiber, film, copper foil and other samples with thickness less than 1mm.
INQUIRY

Folding endurance tester is designed to test the endurance of the paper, cardboard, glass fiber, film, copper foil and other samples with thickness less than 1mm.

Folding Endurance Tester Application

0-1mm paper, cardboard,

0-1mm glass fiber, film, circuit board, copper foil, wire, etc

Folding Endurance Tester Feature

● High closed loop stepper motor, rotation Angle, folding speed accurate and stable.

● Cotex-M4 ARM processor, improve the response speed of the instrument, accurate and fast calculation data.

● Automatically measures, calculates and prints test results, and has the function of data saving.

● Test data can be exported from USB flash drive.

● The system and screen software can be upgraded through the network or USB flash drive.

● supports a variety of communication methods, online software (purchased separately) can be WIFI or USB communication.

● Test data can be uploaded to the cloud server, and cooperate with the QMS paper quality management system (purchased separately) to monitor the paper test data in real time.

Folding Endurance Tester Standards

GB/T 457，QB/T1049，ISO 5626，ISO 2493

Folding Endurance Tester Technical Data

NO.	Parameter	Technical Data
1	Power supply	AC(100～240)V，(50/60)Hz，100W
2	Working environment	Temperature: (10~35)°C, relative humidity≤ 85%
3	Display	7 inch color touch screen,1024 x 600 resolution
4	Measuring range	0-99999 times
5	Fold radius	0.38±0.02 mm
6	Folding angle	135±2°
7	Folding speed	175±5 times/min
8	Spring tension	4.91/9.81/14.72 N
9	Slot for folding head	（0.25/0.50/0.75/1.00）mm
10	Data storage	50 test data
11	Data export	Export data to USB flash drive
12	Print	Built-in thermal printer
13	Communication interface	USB、WIFI（2.4G）
14	Dimensions	360×255×500 mm
15	Net weight	18kg
